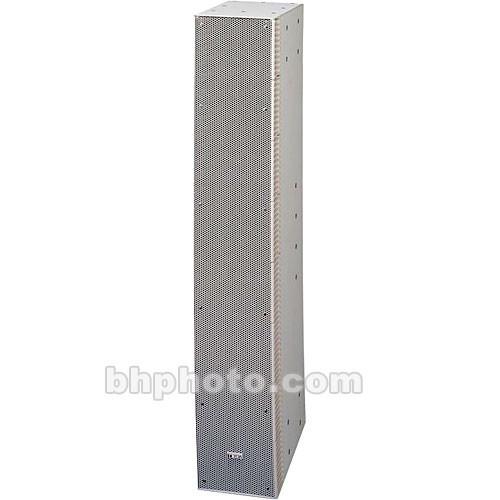

User Manual for Toa Electronics SR-S4S Slim-Line Array Straight Speaker Click to enlarge the picture
Contents of the user manual for the Toa Electronics SR-S4S Slim-Line Array Straight
- Product category: PA Speakers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics PA Speakers
|
User manual for the Toa Electronics SR-S4S Slim-Line Array Straight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description TOA's SR-S4S Slim-Line Straight 600W Speaker (White) are an integral part of the SR-S Series. These two-way line array speakers feature a linear design to optimize sound quality in short-distance settings by limiting the vertical sound dispersion and focusing directivity at your audience.Each speaker contains thirty-two elements; eight 10cm woofers and twenty-four high-frequency drivers. By installing the drivers vertically and with very little space in-between, TOA has created a continuous linear sound source.The SR-S4S speakers are designed for a single amplifier situation, but they can easily be modified to support a biamp situation. And, with an additional digital signal processor you can set the optimal crossover frequency points for your professional settings. - Slim compact design ideal for speech applications
- Low visual profile fits into demanding settings
- Highly controlled coverage yields improved intelligibility
- Multiple drivers (8 LF, 24 HF) for high sensitivity and power handling
- In-line driver arrangement for superior vertical coverage control
- All drivers share the same horizontal axis for best horizontal dispersion
- Horizontal coverage remains broad through speech range - 100 deg.
- High power handling: 600W cont. (200W, 24 hr. pink noise)
- SR-S4L Long-throw (0°V x 90°H)
- Full-range with built-in crossover or biamp
- Power handling: 600W cont.
- High sensitivity: up to 99dB, 1 watt @ 1 meter (500 to 5,000Hz)
- Weather-resistant versions available
- Optional mounting hardware and 70.7V transformer
In the Box Toa Electronics SR-S4S Slim-Line Array Straight Speaker (White) Bi-Amplifier Rating Label Bi-Amplifier Drive Input Indication Label Product Instructions 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics SR-S4S Slim-Line Array Straight Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics SRS4S Specs | | | Configuration | Passive Optional Active | | Total Power Capacity | 600 W | | System Impedance | 8 Ohms | | | | HF Driver | 24 x 2.5 / cm Dome | | LF Driver | 8 x 3.93" / 10 cm Woofer | | | | Frequency Response | 70 Hz to 20 kHz | | Speaker Sensitivity | 93 dB | | | | Audio I/O | M5 Screw Terminal
2 x speakON NL4 | | | | Construction Material | MDF, Perforated Metal Grille | | Dimensions | 6.3 x 35.1 x 11.0" / 160.0 x 892.0 x 303.0 mm | | Weight | 35.3 lb / 16 kg | | | | Package Weight | 42.77 lb | | Box Dimensions (LxWxH) | 40.51 x 14.09 x 9.76" |
