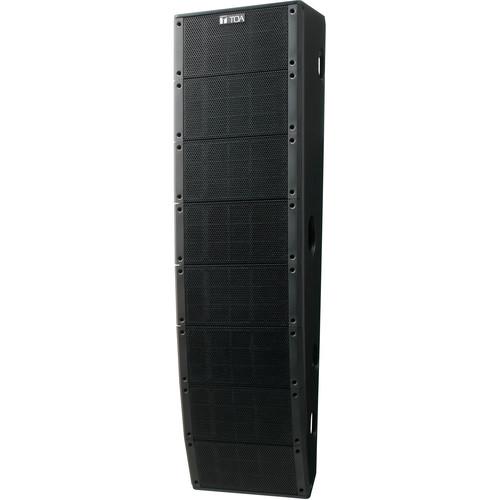

Product description The Toa Electronics SR-T5 is a passive two-way line array speaker offering optimal speech clarity and impact-resistant construction for installation in reverb-heavy venues such as gyms and indoor sports facilities. Capable of continuous program power handling up to 750W, it features eight 5.1" low-frequency drivers and 24 balanced dome-type tweeters in a plywood bass-reflex cabinet. The internal 3 kHz crossover allows the SR-T5 to be driven by a single amplifier for a frequency response of 70 Hz to 20 kHz. With 8-Ohm impedance and an M5 screw terminal input, the speaker is easily paired with a low-impedance amplifier. Alternatively, install the MT-S0601 matching transformer (available separately) to use the SR-T5 in high-impedance configurations. Using the supplied mounting hardware to enable downward angle adjustability, and add the SR-PB5 wall pan bracket (available separately) for 5° or 10° horizontal adjustment. - Curved vertical speaker arrangement covers entire audience area from front to rear with uniform sound volume
- Optimal vertical coverage control reduces reflections off the ceiling and walls, delivering clear sound without inducing ear fatigue
- Internal two-way passive crossover network circuitry for single-amplifier operation
- Sturdy impact-resistant construction for installation in small- or medium-scale, reverb-heavy, indoor sports facilities such as school gymnasiums
- Requires no additional protective grille
- Adjustable downward angle via supplied mounting bracket
- Adjustable horizontal angle via SR-PB5 wall pan bracket (available separately)
- Compatible with MT-S0601 matching transformer (available separately) for use in high-impedance applications
- Included safety wire prevents speaker from falling during and after installation
In the Box Toa Electronics SR-T5 Passive 2-Way Line Array Speaker Mounting Bracket A Mounting Bracket B 6 x Bracket Mounting Bolts 5 x Side Covers 10 x Side Cover Mounting Screws Eye Bolt Safety Wire Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics SR-T5 Passive 2-Way Line Array Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics SR-T5 Specs | | | Configuration | Passive 2-Way | | Enclosure Type | Bass-Reflex Line Array | | Total Power Capacity | 250 W RMS
750 W Program | | System Impedance | 8 Ohms | | | | HF Driver | 24 x Dome Tweeter | | LF Driver | 8 x 5.1" / 13 cm Woofer | | | | Frequency Response | 70 Hz to 20 kHz | | Coverage Angle | 100° H x 35° V | | Speaker Sensitivity | 96 dB | | | | Audio I/O | M5 Screw Terminal 0.5" / 1.2 cm between barriers | | | | Construction Material | Metal Grille, Plywood, Polypropylene | | Dimensions | 12.2 x 48.8 x 13.4" / 31.0 x 123.9 x 34.1 cm | | Weight | 63.9 lb / 29 kg |
