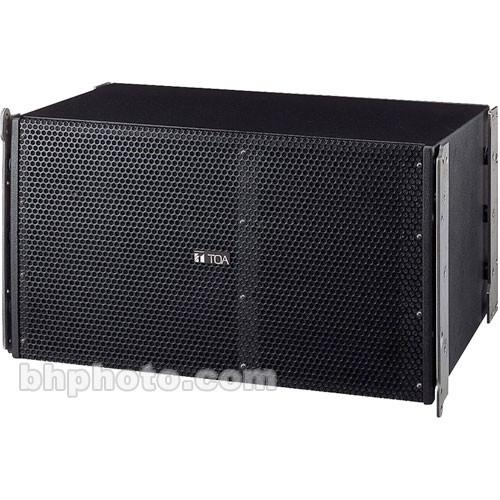

User Manual for Toa Electronics SRA12L Mid-Sized Line Array 450W Speakers Click to enlarge the picture
Contents of the user manual for the Toa Electronics SRA12L Mid-Sized Line Array
- Product category: PA Speakers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics PA Speakers
|
User manual for the Toa Electronics SRA12L Mid-Sized Line Array contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The SRA12LWP Weather Resistant Mid-Sized Line Array 450W Speakers (Black) are TOA's mid-high long-throw speakers from the SR-A Series. This series features proprietary Sync-Drive horn technology which gives a uniform high-frequency sound field. You'll notice the crystal-clear clarity as well as the significant decrease in interference. All of the mid-high modules feature dual compression drivers and a 12" low-frequency driver for greater output. The long speaker configuration is designed to fit the specific coverage characteristics of your performances when you have a larger distance to cover. These speakers work best in permanent installations and is designed so that techies can easily reach inside and perform maintenance. The SRA12LWP weather-resistant model is designed for outdoor venues so no matter what the season the show can go on. - Weather Resistant
- This model is weather-resistant so performers at outdoor venues can rest assured that their valuable equipment is well protected and ready to go no matter what the season.
- Wide Bandwidth Response
- If you're looking for greater output power and an extended frequency response then the SR-A Series is the right choice. These compact and powerful two-way modular speakers can be adjusted and configured in two ways so you can get the best output possible for each situation.
- High Performance Drivers
- Experience top-notch sound with a 12" low-frequency driver and a high-frequency horn attached to two compression drivers, a tried-and-tested way to achieve the ultimate output.
- Wavefront Control
- Get the most out of your high-frequency drivers with TOA's proprietary phase wavefront control throat.
- Adjustable Sound Coverage
- The long speaker configuration has been perfected so you get the best coverage in a standard speaker set up. This configuration carries it's own unique taper which will give you the best sound in a long-range environment.
- Simple Maintenance
- The Type A Series is meant to be used in a permanent situation and has convenient rear access for maintenance.
In the Box Toa Electronics SRA12L Mid-Sized Line Array 450W Speakers (Black) 2 x Joint Plate 16 x Joint Plate Mounting Bolt (M10) Product Instructions 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics SRA12L Mid-Sized Line Array 450W Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics SRA12LWP Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 450 W | | System Impedance | LF:
8 Ohms
HF:
16 Ohms | | | | HF Driver | 2 x Horn-Loaded Compression Driver | | LF Driver | 1 x 11.8" / 30 cm Woofer | | | | Frequency Response | 50 Hz to 20 kHz | | Speaker Sensitivity | LF:
98 dB
HF:
110 dB | | | | Audio I/O | 4-Core Cable Direct cable withdrawl from internal speaker, 8.6 mm Conductor Cross Section, 1.25 mm 4-Core Cable | | | | Construction Material | Perforated Metal Grille, Plywood | | Dimensions | 29.0 x 17.0 x 18.5" / 740.0 x 433.0 x 469.0 mm | | Weight | 122.4 lb / 51 kg | | | | Package Weight | 127.43 lb | | Box Dimensions (LxWxH) | 33.62 x 22.2 x 20.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
