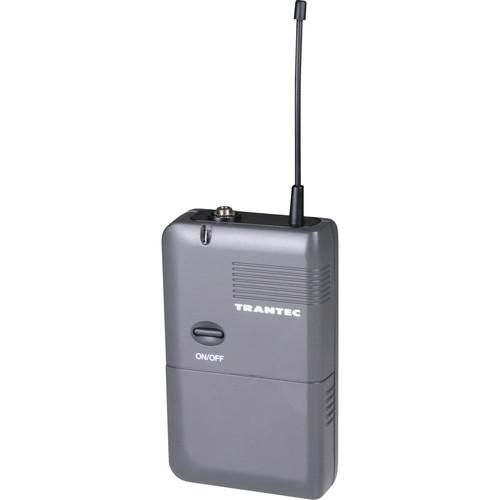

User Manual for Toa Electronics Trantec S4.16 Series BTX-G4Q UHF Beltpack Transmitter Click to enlarge the picture
Contents of the user manual for the Toa Electronics Trantec S4.16 Series BTX-G4Q
- Product category: Wireless Transmitters Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Wireless Transmitters
|
User manual for the Toa Electronics Trantec S4.16 Series BTX-G4Q contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The Trantec S4.16 Series BTX-G4Q UHF Beltpack Transmitter by Toa is for capturing audio. It can be used for speech or instruments when paired with a mic/instrument cable and receiver, for applications including live stage shows, theater, boardroom meetings, lectures, houses of worship functions, and more. It features a switch for selection between instrument and microphone input, while the beltpack transmitter has 16 switchable UHF frequencies and is built with a battery-status LED. It is powered by a single 9V battery and can run for approximately 10 hours. For powerful vocal, speech, or instrument performances, the Trantec beltpack transmitter is suitable for almost any situation and can get the job done. - 16 user-selectable UHF channels provide more versatility when finding a channel
- Integral switch for selection between instrument and microphone allow for more diverse applications
- Fully synthesized PLL quartz-tuning technology provides a clearer sound
- Single 9V transmitter battery life of approximately 10 hours
- Transmitter features a detachable antenna to help prevent breakage during transport
In the Box Toa Electronics Trantec S4.16 Series BTX-G4Q UHF Beltpack Transmitter (Channel G4, 606-636 MHz) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics Trantec S4.16 Series BTX-G4Q UHF Beltpack Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics S4.16-BTX-G4Q Specs | Selectable Channels | 16 | | Total Harmonic Distortion (THD) | less than 1% | | Frequency Band | G4: 606-636 MHz, UHF | | Operating Voltage | 9 V @ <50 mA | | Operating Time | Approximately 10 hours | | Output Power | 10 mW max | | Modulation System | PLL synthesizer | | Controls | Frequency select, on-off switch, lapel/instrument switch, gain adjust | | Indicators | Battery-status LED | | Connectors | AF Input: Locking 1/8" (3.5 mm) socket (tip=audio, ring + sleeve = gnd) | | Dimensions (W x L x D) | 2.4 x 3.9 x 1.2" (60 x 100 x 30 mm) including belt clip | | Weight | 3.2 oz (90 g) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
