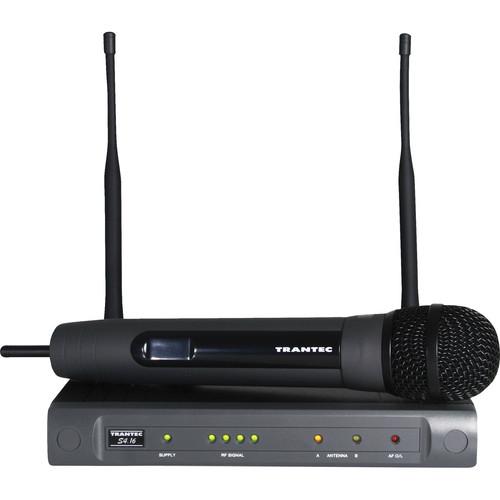

Product description The Trantec S4.16H-G4-USQ UHF Wireless Microphone System by Toa is for capturing audio. It can be used for speech or vocals in various environments for applications such as live stage, theater, boardrooms, lectures, and more. It features a handheld transmitter with a dynamic cardioid mic capsule and a receiver with an AC adapter and detachable antennas. The frequency response is 80 Hz to 16 kHz. The handheld transmitter features 16 switchable frequencies and is powered by a single 9V battery that can run for approximately 10 hours. The receiver is built with a status LED that indicates peak, antenna A/B, RF level, and power. A squelch is also provided for clear reception. In addition, an unbalanced 1/4" output jack and a balanced XLR output jack are built on the rear of the receiver. For powerful vocal performance or general speech applications, the Trantec wireless microphone system is suitable for the most demanding of vocal applications. - Trantec S4.16 Series HDX-G4Q Handheld Transmitter (Channel G4: 606-636 MHz ) The Trantec S4.16 Series HDX Handheld Transmitter by Toa is for capturing audio. It can be used for speech or vocals when paired with a receiver for applications such as live performances, theater, boardroom meetings, lectures, and more. It features a frequency response of 60 Hz to 20 kHz and has a dynamic cardioid polar pattern. The handheld transmitter has 16 switchable frequencies and is built with a battery-status LED. It is powered by a single 9V battery and runs for approximately 10 hours. For powerful vocal performance or general speech applications, the Trantec cardioid dynamic transmitter is suitable for the most demanding of vocal applications.
- Fully synthesized PLL quartz-tuning technology
- Single 9V transmitter battery life of approximately 10 hours
- Includes a detachable antenna to prevent breakage when transporting the microphone
- Trantec S4.16-RX-G4Q Series Wireless UHF Microphone Receiver (Channel G4, 606-636 MHz) The Trantec S4.16-RX-G4Q Series Wireless UHF Microphone Receiver by Toa is for capturing audio. When paired with a transmitter and a microphone, it can be used for speech or vocals in applications for live stage, theater, boardrooms, lectures, and more. It features a frequency response of 60 Hz to 16 kHz and has 16 user-selectable frequencies. The diversity receiver is built with a battery-status LED and has an unbalanced 1/4" mono jack and a balanced XLR 3F output jack. For powerful vocal performance or general speech applications, the Trantec receiver is suitable for the most demanding applications.
- Fully synthesized PLL quartz-tuning technology
- 16 selectable frequencies and up to 12 simultaneous channels
- Receiver LEDs show AF peak level, RF level, and diversity-channel A or B for clear status of system
- Diversity operation with detachable antennae
- Receiver is built with a metal enclosure and is designed to be rugged
- Detachable antennae helps prevent breakage when transporting to and from locations
- 19" rackmount option for one or two receivers (sold separately)
In the Box Bundle Items Trantec S4.16 Series HDX-G4Q Handheld Transmitter (Channel G4: 606-636 MHz ) tqavxaxbbveycrbetavvfxccy Trantec S4.16-RX-G4Q Series Wireless UHF Microphone Receiver (Channel G4, 606-636 MHz) Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics Trantec S4.16H-G4-USQ UHF Wireless Mic System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Trantec S4.16 Series HDX-G4Q Handheld Transmitter (Channel G4: 606-636 MHz )
| Frequency Response | 60 Hz to 20 kHz | | Maximum Input Level | 146 dB SPL | | Frequency Band | G4: 606-636 MHz, UHF | | Operating Voltage | 9 V @ <50 mA | | Operating Time | Approximately 10 hours | | RF Carrier Power | 10 mW max | | Controls | Frequency select, on-off switch | | Indicators | Battery-status LED | | Transducer Type | Dynamic | | Polar Pattern | Cardioid | | Dimensions (L x W) | 11 x 2.0" (280 x 50 mm) max including grill | | Weight | 7.4 oz (210 g) | - Trantec S4.16-RX-G4Q Series Wireless UHF Microphone Receiver (Channel G4, 606-636 MHz)
| Frequency Response | 60 Hz to 16 kHz @ ±3 dB | | Frequency Band | G4: 606-636 MHz | | # Of Channels | 12 | | Audio Output | Balanced output: +16 dB(max), 600 Ohms, balanced, XLR-3-31 type connector Unbalanced output: +10 dB(max), 600 Ohms, unbalanced, phone jack | | Squelch | Sensitivity: 18 - 40 dBµV variable System: Using together of noise SQ, carrier SQ and tone SQ | | Indicator LEDs | ANT A/B, Audio (peak), RF level, Power | | Signal to Noise Ratio | >95 dBA (A-weight, unbalanced output) | | Harmonic Distortion | Under 1% (typical) | | Receiving Sensitivity | Over 90 dB, S/N ratio (20 dB V input, 40 kHz deviation) | | DC Input | 12 VDC, 100 mA | | Dimensions (W × H × D) | 8.4 x 1.4 x 4" (214 x 35 x 101 mm) | | Weight | 1.08 lb (580 g) |
