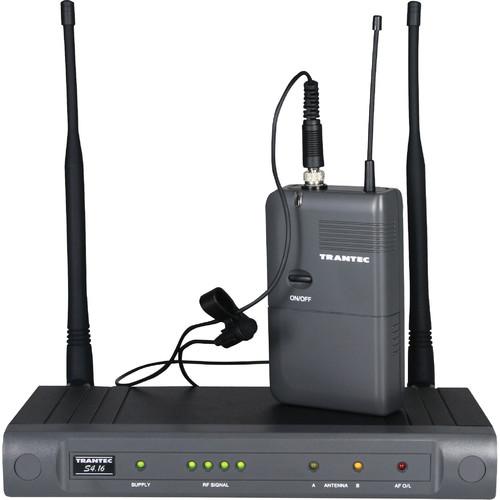

User Manual for Toa Electronics Trantec S4.16L E3-USQ Wireless Presenter System Click to enlarge the picture
Contents of the user manual for the Toa Electronics Trantec S4.16L E3-USQ Wireless
- Product category: Wireless Systems Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Wireless Systems
|
User manual for the Toa Electronics Trantec S4.16L E3-USQ Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description For capturing audio, the Trantec S4.16L E3-USQ Wireless Presenter System by Toa is a good professional choice which can be used for speech or vocals in various environments. It is useful for applications such as live stage, theater, boardrooms, lectures, and more. It features a beltpack transmitter, omni-directional microphone, receiver with detachable antennas, and an AC power adapter. The frequency response is 60Hz to 16kHz. The beltpack transmitter features 16 switchable frequencies and is powered by a single 9V battery that can run for approximately 10 hours. The receiver is built with a status LED that indicates peak, antenna A/B, RF level, and power. A squelch is also provided for clear reception. In addition an unbalanced 1/4" output jack and a balanced XLR output jack are built on the rear of the receiver. For good vocal performance or general speech applications, the Trantec wireless microphone system is suitable for most vocal and speech applications. - Fully synthesized PLL quartz tuning technology
- Single 9V transmitter battery life of approximately 10 hours
- Includes a detachable rear mount antenna to prevent breakage when transporting the receiver
In the Box Toa Electronics Trantec S4.16L E3-USQ Wireless Presenter System (Channel E3) MIC-LP2 Omni-Directional Microphone Trantec S4.16 Series BTX-E3Q UHF Beltpack Transmitter (Channel E3, 668-698 MHz) Trantec S4.16-RX-E3Q Series Wireless UHF Microphone Receiver (Channel E3, 668-698 MHz) AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics Trantec S4.16L E3-USQ Wireless Presenter System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics S4.16L-E3-USQ Specs | | | Type | Omni-directional electret condenser | | Nominal Impedance | 3000 Ω | | Maximum SPL | >120 dB | | Operating Voltage | 2 to 10 V min/max | | Current Consumption | 50 uA | | Frequency Response | 60 Hz to 16 kHz ±3 dB | | Cable Length | 59" (1500 mm) | | Connector | 4-pin mini XLR plug | | Dimensions | Not listed by manufacturer | | Weight | Not listed by manufacturer |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
