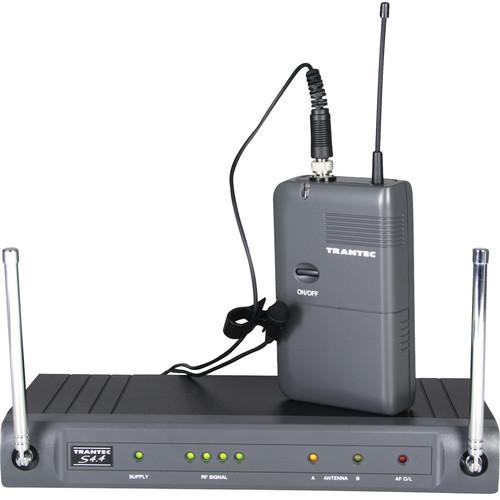

User Manual for Toa Electronics Trantec S4.4 Series G5-US Q Wireless UHF Presenter System Click to enlarge the picture
Contents of the user manual for the Toa Electronics Trantec S4.4 Series G5-US
- Product category: Wireless Systems Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Wireless Systems
|
User manual for the Toa Electronics Trantec S4.4 Series G5-US contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The Trantec S4.4 Series G5-US Q Wireless UHF Presenter System by TOA is a multi-function transmitter, microphone, and receiver that can be used in various environments for applications such as live stage, theater, rehearsals, lectures, houses of worship, and more. It features an omnidirectional lavalier microphone, beltpack transmitter, diversity receiver, and AC adapter. It has a frequency response of 60Hz to 16kHz and features PLL quartz tuning, with 4 user selectable channels. The transmitter is powered by a 9V battery and can run for approximately 10 hours. A LED battery status indicator is built into the belt pack transmitter. The transmitter also features a detachable antenna to prevent breakage in transport. The input jack is a locking 1/8" (3.5mm) jack, and there is switch for selection between instrument and microphone input impedance. This multi-function system features 4 switchable frequencies and the latest PLL quartz tuning.The Trantec S4.4 receiver features LED readout for AF Peak, Level, RF Level, and Diversity Channel A or B. This receiver is built with an XLR and 1/4" output jack with user adjustable gain controls for each. A user adjustable squelch is also located on the receiver. Built in a metal enclosure, it employs a compander noise reduction circuit to minimize the influence of ambient RF noise. The S4.4 wireless system can be used for powerful vocal performance or general speech applications. In the Box Toa Electronics Trantec S4.4 Series G5-US Q Wireless UHF Presenter System (Channel G5) Trantec S4.4 Series RXG5Q Wireless Receiver (Channel G5, 606-636 MHz) Trantec S4.4 Series HDX G5 Q Handheld Wireless Microphone (Channel G5) MIC-LP2 Omnidirectional Microphone AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics Trantec S4.4 Series G5-US Q Wireless UHF Presenter System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics S4.4L-G5-US Q Specs | | | Type | Electret Condenser | | Polar Pattern | Omnidirectional | | Nominal Impedance | 3000 ohms | | Maximum Sound Pressure Level (SPL) | >120 dB | | Operating Voltage | 2 to 10 V min/max | | Current Consumption | 50 uA | | Frequency Response | 60 Hz to 16 kHz ±3 dB | | Cable Length | 59" (150 cm) | | Connector | 1/8" (3.5 mm) | | Dimensions | Not listed by manufacturer | | Weight | Not listed by manufacturer |
