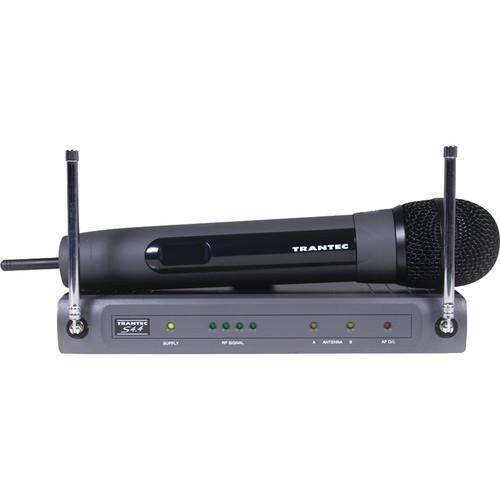

Product description For capturing audio, the Trantec S4.4 Series H-E4-US Q Wireless UHF Handheld Mic System by TOA is a multi-function transmitter and receiver that can be used in various environments for applications such as live stage, theater, rehearsals, houses of worship, and more. It features a handheld transmitter with a frequency response of 80Hz to 16kHz, a cardioid mic capsule, diversity receiver, and AC adapter. The transmitter is powered by a 9V battery and can run for approximately 10 hours. A LED battery status indicator is built into the mic transmitter for easy access to battery life. The receiver features LED readout for AF Peak, Level, RF Level and diversity channel A or B. It is built with XLR and 1/4" output jacks with user adjustable gain control. A user adjustable squelch is also located on the receiver. Built in a metal enclosure, it employs a compander noise reduction circuit to minimize the influence of ambient RF noise. For powerful vocal performance or general speech applications, the S4.4 wireless system can get the job done. - Trantec S4.4 Series RXE4Q Wireless Receiver (Channel E4, 668-698 MHz) The Trantec S4.4 Series RXE4Q Wireless Receiver by Toa is for capturing audio. It can be used for speech or vocals when paired with a wireless transmitter for applications such as live stage performances, theater, boardroom meetings, lectures, and more. It features a frequency response of 100 Hz to 15 kHz and has a signal-to-noise ratio of over 90 dB. The receiver has 4 switchable frequencies and is built with status LEDs that show AF peak level, RF level, and diversity channels A or B. In addition, user-adjustable output level and squelch control allow for better control of your audio signal. For powerful vocal performances or general speech applications, the Trantec wireless receiver is suitable for the most demanding of vocal applications.
- Fully synthesized PLL quartz-tuning technology
- Receiver LEDs show AF Peak level, RF level, and diversity channel A or B
- Professional metal enclosure
- 19" rackmount option for one or two receivers
- Trantec S4.4 Series HDX E4 Q Handheld Wireless Microphone (Channel E4) For capturing audio, the Trantec S4.4 Series HDX E4 Q Handheld Wireless Microphone by TOA is ergonomically designed and can be used in various environments. When paired with a receiver, it is useful for audio applications such as live stage, schools, boardrooms, houses of worship, and more. This microphone features a cardioid dynamic polar pattern, synthesized PLL quartz tuning and has 4 selectable frequencies. The capsule has a frequency response of 80Hz to 16kHz. Built with a detachable antenna, this transmitter is powered by a 9V battery and has a battery life of approximately 10 hours. In addition, a LED battery status indicator is also available to help you monitor the battery life. The Trantec cardioid dynamic capsule is suitable for the most demanding of vocal applications and can surely get the job done.
In the Box Bundle Items Trantec S4.4 Series RXE4Q Wireless Receiver (Channel E4, 668-698 MHz) traebxyfayycsybuavrcfsyfeawaxbxtzwue Trantec S4.4 Series HDX E4 Q Handheld Wireless Microphone (Channel E4)
Also Includes - AC Adapter
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics Trantec S4.4 Series H-E4-US Q Wireless UHF Handheld Mic System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Trantec S4.4 Series RXE4Q Wireless Receiver (Channel E4, 668-698 MHz)
Power Consumption | 100 mA (12 VDC) | Audio Output | Balanced Output: +16 dB (max), 600 Ohms, balanced, XLR-3-31 type connector Unbalanced Output: +10 dB (max), 600 Ohms, unbalanced, phone jack 0 dB = 0.775 V | Frequency Band | E4: 668-698 MHz, UHF | Receiving Sensitivity | Over 90 dB S/N Ratio: 20 dB μV input, 40 kHz deviation | Squelch | Sensitivity: 18 to 40 dB μV variable | Indicators | ANT A/B Audio (peak) RF level Power | Signal to Noise Ratio | Over 95 dB (A-weight, unbalanced output) | Harmonic Distortion | Under 1% (typical) | Frequency Response | 100 Hz to 15 kHz, ±3 dB | Operation Temperature | 14 to 113°F (-10 to 45°C) | Dimensions (W x H x D) | 8.43 × 1.38 × 3.96" (214 x 35 x 101 mm) | Weight | 1.28 lb( 580 g) | - Trantec S4.4 Series HDX E4 Q Handheld Wireless Microphone (Channel E4)
Frequency Response | 80 Hz to 16 kHz | Channel Assignment | E4 | # Of Channels | 4 | Microphone Element | Dynamic Cardioid | RF Carrier Power | Maximum: 10 mW | Modulation System | PLL synthesizer | Battery | 9V | Battery Life | Approximately 10 hours | Indicators | Battery status LED | Dimensions (Diam. x L) | 1.97 x 10.63" (50 x 270 mm) | Weight | 0.49 lb (220 g) |
