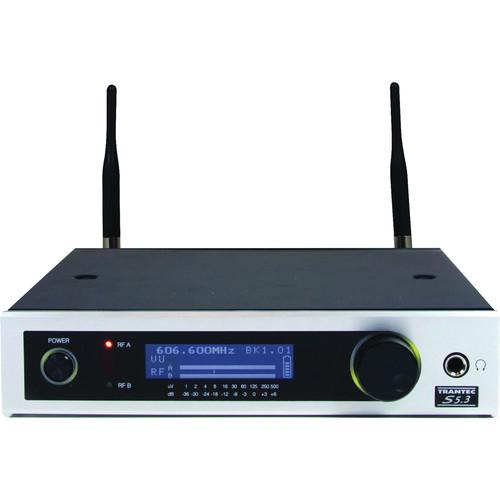

User Manual for Toa Electronics Trantec S5.3-RX 12 Channel UHF Wireless Receiver Click to enlarge the picture
Contents of the user manual for the Toa Electronics Trantec S5.3-RX 12 Channel
- Product category: Wireless Receivers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Wireless Receivers
|
User manual for the Toa Electronics Trantec S5.3-RX 12 Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The Trantec S5.3-RX UHF Wireless Receiver from Toa Electronics is a professional fully synthesized UHF dual conversion receiver suitable for a wide range of theater and broadcast applications. The frequency band of this receiver is H2 at 576 - 606 MHz. High-quality audio and RF dynamics combine with true diversity operation to provide a system with multi-channel capability, enabling up to 12 channels to operate simultaneously without interference. - Clear and intuitive graphic LCD display and display jog wheel
- Seven-step battery status indicator
- Up to 640 selectable frequencies, 12 channels
- USB based computer monitoring
- Simple programming of transmitter with built-in infra-red data link
- Integral triple tone grip/noise and signal strength mute circuit for protection against external interference
In the Box Toa Electronics Trantec S5.3-RX 12 Channel UHF Wireless Receiver (H2: 576 - 606 MHz) Power Adapter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics Trantec S5.3-RX 12 Channel UHF Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics S5.3 Specs | Connectors | 1 x 3-pin XLR male, microphone/line audio output
2 x 1/4" headphones and unbalanced audio outputs
1 x USB port | | Impedance | Microphone/Line: 600 Ohms
1/4" unbalanced: 600 Ohms
Headphones: 16 Ohms | | Gain | Microphone: 62 dB
Line: -22 dB
Headphones: 100 mW maximum / -28 dB | | Controls and Indicators | LCD, display
Lamp, power
Lamp, mute
Lamp, A/B antenna | | Diversity | Space diversity (true diversity) | | Sensitivity | Receiving: 0 dB µV variable | | Squelch | Sensitivity: 6 to 36 dB µV variable
System: Using together of noise SQ, carrier SQ and tone SQ | | S/N Ratio | 110 dB or more, A-Weight | | Harmonic Distortion | 1% or less, typical | | Frequency Response | 50 Hz - 20 kHz, ±3 dB | | Frequency Band | H2: 576 - 606 MHz | | Phantom Power | Antenna: 9 VDC, 30 mA, max | | Power Consumption | 13 VDC, 300 mA | | Dimensions | 8.27 x 1.81 x 8.27" (210.00 x 46.00 x 210.00 mm), excluding antenna | | Weight | 2.9 lb (1.3 kg) |
