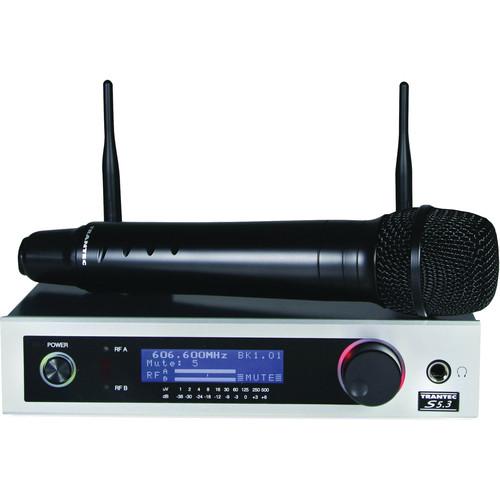

Product description The Trantec S5.3 Series Handheld Dynamic Microphone System from Toa Electronics includes an S5.3-RX UHF Wireless Receiver, and an S5.3-HDX UHF Wireless Handheld Dynamic Transmitter; the frequency band of this system is G7, which operates at 606 to 636 MHz. The system is suitable for a wide range of theater and broadcast applications. High-quality audio and RF dynamics combine with true diversity operation to provide a system with multi-channel capability, enabling up to 12 channels to operate simultaneously without interference. The system runs using a single AA cell battery, providing over 10 hours of continuous use. - Trantec S5.3-RX 12 Channel UHF Wireless Receiver (G7: 606 - 636 MHz) The Trantec S5.3-RX UHF Wireless Receiver from Toa Electronics is a professional fully synthesized UHF dual conversion receiver suitable for a wide range of theater and broadcast applications. The frequency band of this receiver is G7 at 606 - 636 MHz. High-quality audio and RF dynamics combine with true diversity operation to provide a system with multi-channel capability, enabling up to 12 channels to operate simultaneously without interference.
- Clear and intuitive graphic LCD display and display jog wheel
- Seven-step battery status indicator
- Up to 640 selectable frequencies, 12 channels
- USB based computer monitoring
- Simple programming of transmitter with built-in infra-red data link
- Integral triple tone grip/noise and signal strength mute circuit for protection against external interference
- Trantec S5.3-HDX UHF Wireless Handheld Dynamic Transmitter (G7, 606 - 636 MHz) The Trantec S5.3-HDX UHF Wireless Handheld Dynamic Transmitter from Toa Electronics is a professional handheld dynamic microphone suitable for a wide range of theater and broadcast applications; the frequency band of this microphone is G7 at 606 - 636 MHz. High-quality audio and RF dynamics combine with true diversity operation to provide a system with multi-channel capability, enabling up to 12 channels to operate simultaneously without interference. The unit runs using a single AA cell battery, providing over 10 hours of continuous use.
- Clear and intuitive LCD display
- Four-step battery-life indicator
- Digital gain control and microphone mute switch
- Frequency & Power-lock facility
- Single AA operation with battery life of over 10 hours
- Simple programming with built-in IR data link
In the Box Bundle Items Trantec S5.3-RX 12 Channel UHF Wireless Receiver (G7: 606 - 636 MHz) dzbsfqvvyyezzdvczesdafysyyeycvscsxc Trantec S5.3-HDX UHF Wireless Handheld Dynamic Transmitter (G7, 606 - 636 MHz)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics Trantec S5.3 Series 12-Channel UHF Wireless Handheld Dynamic Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Trantec S5.3-RX 12 Channel UHF Wireless Receiver (G7: 606 - 636 MHz)
| Connectors | 1 x 3-pin XLR male, microphone/line audio output
2 x 1/4" headphones and unbalanced audio outputs
1 x USB port | | Impedance | Microphone/Line: 600 Ohms
1/4" unbalanced: 600 Ohms
Headphones: 16 Ohms | | Gain | Microphone: 62 dB
Line: -22 dB
Headphones: 100 mW maximum / -28 dB | | Controls and Indicators | LCD, display
Lamp, power
Lamp, mute
Lamp, A/B antenna | | Diversity | Space diversity (true diversity) | | Sensitivity | Receiving: 0 dB µV variable | | Squelch | Sensitivity: 6 to 36 dB µV variable
System: Using together of noise SQ, carrier SQ and tone SQ | | S/N Ratio | 110 dB or more, A-Weight | | Harmonic Distortion | 1% or less, typical | | Frequency Response | 50 Hz - 20 kHz, ±3 dB | | Frequency Band | G7: 606 - 636 MHz | | Phantom Power | Antenna: 9 VDC, 30 mA, max | | Power Consumption | 13 VDC, 300 mA | | Dimensions | 8.27 x 1.81 x 8.27" (210.00 x 46.00 x 210.00 mm), excluding antenna | | Weight | 2.9 lb (1.3 kg) | - Trantec S5.3-HDX UHF Wireless Handheld Dynamic Transmitter (G7, 606 - 636 MHz)
| Connector | IR link port | | Controls and Indicators | Mute switch
Digital gain control (0-2; 12 dB)
LCD display
Power LED
Battery life indicator, 4 steps | | RF Carrier Power | <50 mW (factory preset 10 mW ERP) | | Maximum Input Level | 146 dB SPL (@ "0" gain) | | Frequency Band | G7, 606 - 636 MHz | | Dynamic Range | ≥110 dB, with S5.5-RX | | Battery | LR6, single AA | | Battery Life | 10 hours (alkaline) | | Dimensions | 2.0 x 9.8" (50.0 x 247.9 mm) | | Weight | 13.4 oz (380 g), with battery |
