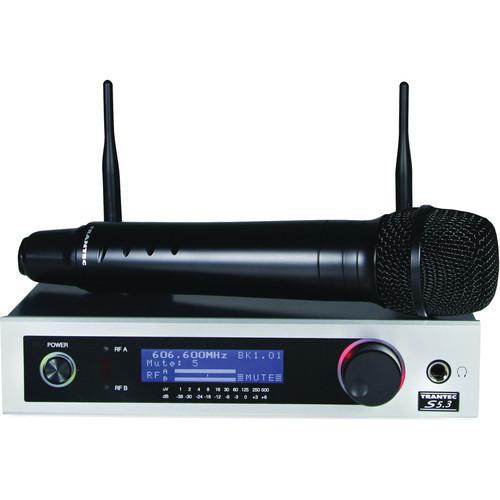

Product description The Trantec S5.3HC Handheld Condenser Microphone Set from Toa Electronics is a handheld condenser microphone set including the fully synthesized S5.3-RX UHF dual-conversion receiver, and S5.3-HCX UHF handheld condenser transmitter. The frequency band for this system is E2 at 668 - 698 MHz. The system is suitable for a wide range of theater and broadcast applications. High quality audio and RF dynamics combine with true diversity operation provide a system with multi-channel capability, enabling up to 12 channels to operate simultaneously without interference. The system runs using single AA cell battery operation, providing over 10 hours of continuous use. - Trantec S5.3-RX 12 Channel UHF Wireless Receiver (E2: 668 - 698 MHz) The Trantec S5.3-RX UHF Wireless Receiver from Toa Electronics is a professional fully synthesized UHF dual conversion receiver suitable for a wide range of theater and broadcast applications. The frequency band of this receiver is E2 at 668 - 698 MHz. High-quality audio and RF dynamics combine with true diversity operation to provide a system with multi-channel capability, enabling up to 12 channels to operate simultaneously without interference.
- Clear and intuitive graphic LCD display and display jog wheel
- Seven-step battery status indicator
- Up to 640 selectable frequencies, 12 channels
- USB based computer monitoring
- Simple programming of transmitter with built-in infra-red data link
- Integral triple tone grip/noise and signal strength mute circuit for protection against external interference
- Trantec S5.3-HCX UHF Wireless Handheld Condenser Transmitter (E2, 668- 698 MHz) The Trantec S5.3-HCX UHF Wireless Handheld Condenser Transmitter from Toa Electronics is a professional handheld condenser microphone suitable for a wide range of theater and broadcast applications. The frequency band of this microphone is E2 at 668 - 698 MHz. High-quality audio and RF dynamics combine with true diversity operation to provide a system with multi-channel capability, enabling up to 12 channels to operate simultaneously without interference. The unit runs using single AA-cell battery operation, providing over 10 hours of continuous use.
- Clear and intuitive LCD display
- Four-step battery-status indicator
- Digital gain control and microphone mute switch
- Frequency & Power-lock facility
- Single AA operation of transmitter with battery life of over 10 hours
- Simple programming of transmitter with built-in infrared data link
In the Box Bundle Items Trantec S5.3-RX 12 Channel UHF Wireless Receiver (E2: 668 - 698 MHz) abxaryzzsayesvzrczwefcxyvvqfvbe Trantec S5.3-HCX UHF Wireless Handheld Condenser Transmitter (E2, 668- 698 MHz)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics Trantec S5.3HC 12 Channel Wireless Handheld Condenser Microphone Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Trantec S5.3-RX 12 Channel UHF Wireless Receiver (E2: 668 - 698 MHz)
| Connectors | 1 x 3-pin XLR male, microphone/line audio output
2 x 1/4" headphones and unbalanced audio outputs
1 x USB port | | Impedance | Microphone/Line: 600 Ohms
1/4" unbalanced: 600 Ohms
Headphones: 16 Ohms | | Gain | Microphone: 62 dB
Line: -22 dB
Headphones: 100 mW maximum / -28 dB | | Controls and Indicators | LCD, display
Lamp, power
Lamp, mute
Lamp, A/B antenna | | Diversity | Space diversity (true diversity) | | Sensitivity | Receiving: 0 dB µV variable | | Squelch | Sensitivity: 6 to 36 dB µV variable
System: Using together of noise SQ, carrier SQ and tone SQ | | S/N Ratio | 110 dB or more, A-Weight | | Harmonic Distortion | 1% or less, typical | | Frequency Response | 50 Hz - 20 kHz, ±3 dB | | Frequency Band | E2: 668 - 698 MHz | | Phantom Power | Antenna: 9 VDC, 30 mA, max | | Power Consumption | 13 VDC, 300 mA | | Dimensions | 8.27 x 1.81 x 8.27" (210.00 x 46.00 x 210.00 mm), excluding antenna | | Weight | 2.9 lb (1.3 kg) | - Trantec S5.3-HCX UHF Wireless Handheld Condenser Transmitter (E2, 668- 698 MHz)
| Connector | Link port, infrared | | Controls and Indicators | Switch, mute
LCD display
Lamp, power | | RF Carrier Power | Less than 50 mW (Factory preset 10 mW ERP) | | Maximum Input Level | 142 dB SPL | | Microphone Sensitivity | Gain Adjustment: 0 - 2, 12 dB | | Audio Frequency Response | 90 Hz - 20 kHz | | Dynamic Range | 110 dB or more, with S5.5-RX | | Battery | LR6, single AA | | Battery Life | 10 hours, alkaline | | Dimensions | 2.0 x 9.2" (50.0 x 232.9 mm) | | Weight | 10.6 oz (300 g), with battery |
