Product description

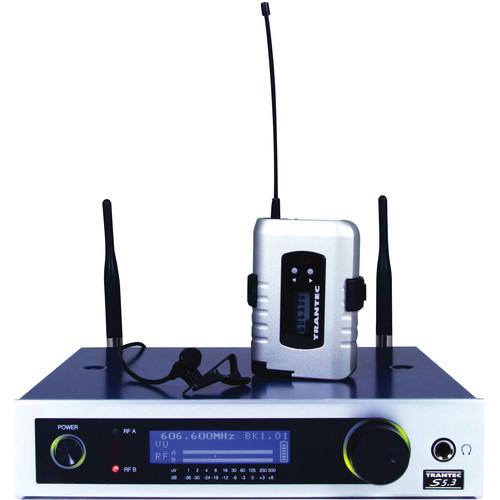

• Trantec S5.3-RX 12 Channel UHF Wireless Receiver (H2: 576 - 606 MHz) The Trantec S5.3-RX UHF Wireless Receiver from Toa Electronics is a professional fully synthesized UHF dual conversion receiver suitable for a wide range of theater and broadcast applications. The frequency band of this receiver is H2 at 576 - 606 MHz. High-quality audio and RF dynamics combine with true diversity operation to provide a system with multi-channel capability, enabling up to 12 channels to operate simultaneously without interference.
  • Clear and intuitive graphic LCD display and display jog wheel
  • Headphone monitor output
  • IR data link
  • Seven-step battery status indicator
  • True diversity operation
  • Frequency scan function
  • Up to 640 selectable frequencies, 12 channels
  • USB based computer monitoring
  • Simple programming of transmitter with built-in infra-red data link
  • Integral triple tone grip/noise and signal strength mute circuit for protection against external interference
• Trantec S5.3-BTX Wireless Beltpack Transmitter (H2, 576 - 606 MHz) The Trantec S5.3-BTX Wireless Beltpack Transmitter from Toa Electronics is a fully synthesized UHF beltpack transmitter. The frequency band for this transmitter is H2 at 576 - 606 MHz. The transmitter is suitable for a wide range of theater and broadcast applications. High-quality audio and RF dynamics combine with true diversity operation provide a system with multi-channel capability, enabling up to 12 channels to operate simultaneously without interference. The unit runs using single AA-cell battery operation, providing over 10 hours of continuous use.
  • Credit-card size
  • Clear and intuitive LCD display
  • Detachable antenna
  • Digital gain control
  • IR data link
  • Four-step battery-life indicator
  • Frequency & Power-lock facility
  • Simple programming of transmitter with built-in infrared data link
  • Single AA operation of transmitters with battery life of over 10 hours
• MIC-X2 Lavalier Microphone with Clip for Trantec S5 (Black) The black MIC-X2 Lavalier Microphone with Clip from Toa is an omnidirectional pro-quality lavalier mic with an electret transducer capsule for the Trantec S5 series wireless system (sold separately). It can be used in several environments for speech applications such as for interviews, lectures, boardroom meetings, and more. The mic cable terminates in a 4-pin mini-XLR connector.

• Power Adapter

• Limited 5-Year Warranty

• Limited 5-Year Warranty

• Mic Clip

• Limited 5-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Trantec S5.3-RX 12 Channel UHF Wireless Receiver (H2: 576 - 606 MHz)

  Connectors	1 x 3-pin XLR male, microphone/line audio output 2 x 1/4" headphones and unbalanced audio outputs 1 x USB port
  Impedance	Microphone/Line: 600 Ohms 1/4" unbalanced: 600 Ohms Headphones: 16 Ohms
  Gain	Microphone: 62 dB Line: -22 dB Headphones: 100 mW maximum / -28 dB
  Controls and Indicators	LCD, display Lamp, power Lamp, mute Lamp, A/B antenna
  Diversity	Space diversity (true diversity)
  Sensitivity	Receiving: 0 dB µV variable
  Squelch	Sensitivity: 6 to 36 dB µV variable System: Using together of noise SQ, carrier SQ and tone SQ
  S/N Ratio	110 dB or more, A-Weight
  Harmonic Distortion	1% or less, typical
  Frequency Response	50 Hz - 20 kHz, ±3 dB
  Frequency Band	H2: 576 - 606 MHz
  Phantom Power	Antenna: 9 VDC, 30 mA, max
  Power Consumption	13 VDC, 300 mA
  Dimensions	8.27 x 1.81 x 8.27" (210.00 x 46.00 x 210.00 mm), excluding antenna
  Weight	2.9 lb (1.3 kg)

• Trantec S5.3-BTX Wireless Beltpack Transmitter (H2, 576 - 606 MHz)

  Audio Input Connectors	4-pin XLR, mini (TA-4)
  Maximum Input Level	120 dB SPL
  Indicators	LCD, display Lamp, power
  Microphone Sensitivity	Gain Adjustment: 0 - 9, 20 dB
  RF Carrier Power	Less than 50 mW (Factory preset 10 mW ERP)
  Modulation System	PLL synthesizer
  Battery	LR6, single AA
  Battery Life	10 hours, alkaline
  Dimensions	2.17 x 3.15 x 0.87" (55.00 x 80.00 x 22.00 mm)
  Weight	4.9 oz (140 g), with battery

• MIC-X2 Lavalier Microphone with Clip for Trantec S5 (Black)

  Connector	4-pin mini-XLR
  Dimensions	Not specified by manufacturer
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	13.58 x 9.84 x 3.15"
