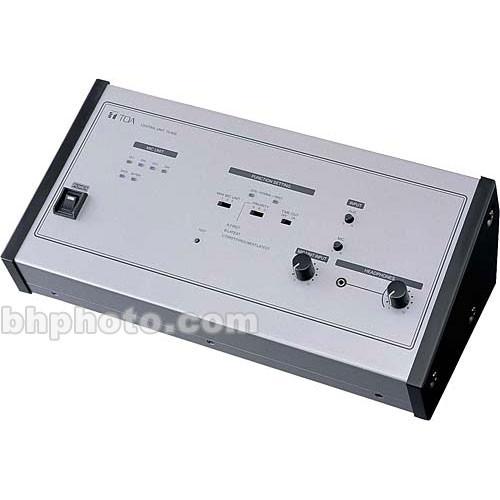

User Manual for Toa Electronics TS-800UL Infrared Wireless Conference System Controller

Click to enlarge the picture
Toa Electronics TS-800UL Infrared Wireless Conference System Controller Contents of the user manual for the Toa Electronics TS-800UL Infrared Wireless Conference
  • Product category: Audio Conferencing Toa Electronics
  • Brand: Toa Electronics
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Toa Electronics Audio Conferencing

User manual for the Toa Electronics TS-800UL Infrared Wireless Conference contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Toa Electronics product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!



Product description

The TOA 800 series conference system is a professional solution for wireless conference microphone operation in boardrooms, panel discussion groups, meeting halls, etc. The 800 series features secure infrared technology for wireless operation without bulky cables and wiring configurations. A functional system consists of a TS-800UL system controller, a TS-905 or TS-907 infrared transceiver and up to sixty-four TS-801 and TS-802 delegate / chairperson remote microphone stations.The TS-800UL conference system controller provides control over the entire system. Wireless infrared technology supports up to sixty-four TS-801 chairperson; and TS-802 delegate stations with a single ceiling/wall mounted infrared transceiver (TS-905 / TS-907). Up to four of these transceivers may be used for extending coverage and maintaining line-of-sight between the remote stations and controller. The TS-800UL allows up to four talkers to speak simultaneously. Additional features include Aux and Mic inputs and a PA/Record output.
    Infrared Wireless Operation
  • The 800 series conference systems feature infrared wireless operation for less bulk and easier configuration and setup.
    Supports Up to 64 Remote Stations
  • The TS-800UL supports up to sixty-four TS-801 chairman and TS-802 delegate stations.
    Selectable Priority Modes
  • First-in-First-Out and Last-In-First-Out priority modes are user selectable.
    Four Simultaneous Talkers
  • The controller features variable support for up to four simultaneous talkers.
    Microphone and Line Connections
  • Aux and Mic inputs as well as PA/Record outputs are featured.
In the Box Toa Electronics TS-800UL Infrared Wireless Conference System Controller
  • 5 Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Toa Electronics TS-800UL Infrared Wireless Conference System Controller in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Toa Electronics TS-800 UL Specs

    Inputs Microphone: 1/4" Phone Unbalanced
    AUX: 1/4" Phone Unbalanced
    Outputs REC Out: RCA Phono Unbalanced
    Headphone: Mini Jack
    Input Impedance Microphone: 600 ohms
    AUX: 10k ohms
    Maximum Input Level Not Specified By Manufacturer
    Maximum Output Level Not Specified By Manufacturer
    Signal to Noise Ratio Not Specified By Manufacturer
    THD & Noise Not Specified By Manufacturer
    Dimensions (HxWxD) 4.67 x 14.13 x 7.07" (118.8 x 359 x 179.8mm)
    Weight 43.2 (2.7 kg)
    Package Weight 9.37 lb
    Box Dimensions (LxWxH) 15.12 x 12.01 x 8.27"
