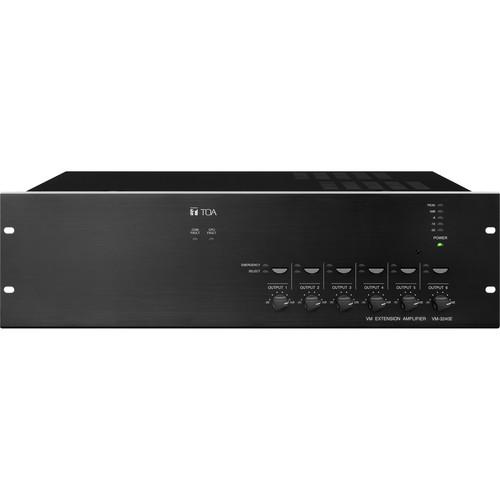

User Manual for Toa Electronics VM-3240E 240W Extension Amplifier Click to enlarge the picture
Contents of the user manual for the Toa Electronics VM-3240E 240W Extension Amplifier
- Product category: 70-Volt Amplifiers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics 70-Volt Amplifiers
|
User manual for the Toa Electronics VM-3240E 240W Extension Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The VM-3240E from Toa Electronics is a 240W extension amplifier for use with the VM-3000 Voice Alarm System. It can be mounted in a 3 RU EIA-Standard equipment rack. The extension amplifier receives audio and control signals from the VM-3240VA through the VM buss. One local analog audio input is available. Up to six paging zones may be assigned to each amplifier. The VM-3240E is fully compliant with NFPA72 requirements when used with VM-3240VA AMQ and is listed to UL2572, ULC-S576, and UL864 for Mass Notification and Fire Voice applications. In the Box Toa Electronics VM-3240E 240W Extension Amplifier (3 RU) 6.6' Power Cable 2 x 9.8' Link Cables 4 x Plastic Feet and Screws 3 x Removable Terminal Plugs (14 Pins) Removable Terminal Plug (16 Pins) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics VM-3240E 240W Extension Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics VM-3240E AMQ Specs | Frequency Response | 50 Hz - 20 kHz, ±3 dB (1/3 rated output)
800 Hz - 2.8 kHz (UL2572)
400 Hz - 4 kHz (CAN/ULC-S576) | | Distortion | 0.7% or less (at rated output, 1 kHz) | | S/N Ratio | 85 dB or more | | Inputs | External Amplifier Input: 70 V line, removable terminal block (14 pins)
Local Input: -50 dB (MIC) / -10 dB (LINE) (changeable), 600 Ohms, electronically balanced, removable terminal block (14 pins) | | Outputs | Speaker Output 1 - 2: Max 240 W per output
Speaker Output 3 - 6: Max 100 W per output
Speaker Output 1 - 6: Total within rated output, removable terminal block (14 pins)
Recommended Minimum Load: 245 Ohms (20 W) at 70 V for speaker line failure detection
Direct Output: Direct output from internal or external amplifier, removable terminal block (16 pins) | | VM-Link Connectors | Input: RJ45 female, for VM-3240VA
Output: RJ45 female for VM-3240E
Link Cable: Category 5 shielded twisted-pair straight cable (Cat5-STP) | | Control | General Control
Input 1 - 8: No-voltage make contact input, open voltage: 24 VDC
Short-Circuit Current: 2 mA or less, removable terminal block (14 pins)
Output 1 - 8: Isolated open collector output, withstand voltage: 30 VDC
Operating Current: 10 mA or less, removable terminal block (14 pins)
Emergency Control
Input 1 - 5: No-voltage make contact input, open voltage: 24 VDC
Short-Circuit Current: 2 mA or less, RJ45 female connector
Input 6: Isolated voltage input, Inactive: -24 V, ±20%
Active: +24 V, ±20%, RJ45 female connector
Status Output: Relay contact output, withstand voltage: 40 VDC
Operating Current: 2 - 300 mA, RJ45 female connector | | Power Input/Output | Power Input: From VX-2000DS only (operating range: 20 - 40 VDC)
PS Output: 28 VDC / 18 A
M4 screw terminal, distance between barriers: 11 mm | | Power Source | 120 VAC, 60 Hz | | Power Consumption | 690 VA (at rated output), 260 W (UL60065), 63 W (no signal) | | Rated Output Power | 240 W, 21 Ohms (UL60065)
200 W, 25 Ohms (UL2572)
200 W, 25 Ohms (CAN/ULC-S576 with separate UPS)
100 W, 50 Ohms (CAN/ULC-S576)
Total amplifier output (1 - 6 and Direct Output) | | DC Output | 22 VDC special application, maximum current 0.3 A (for RM-200M only) | | Link | DS Link: To local VX-2000DS, RJ45 female connector
Link Cable: Category 5 shielded twisted-pair straight cable (CAT5-STP) | | Operating temperature | 32 to 120°F (0 to 49°C) | | Operating Humidity | 5-95% RH (no condensation) | | Finish | Panel: Aluminum, hair-line, black
Case: Surface-treated steel plate, black paint | | Compliance | UL2572 and UL1480UUMW | | Dimensions | 18.98 x 5.22 x 16.02" (48.2 x 13.3 x 40.7 cm) | | Weight | 36.38 lb (16.5 kg) |
