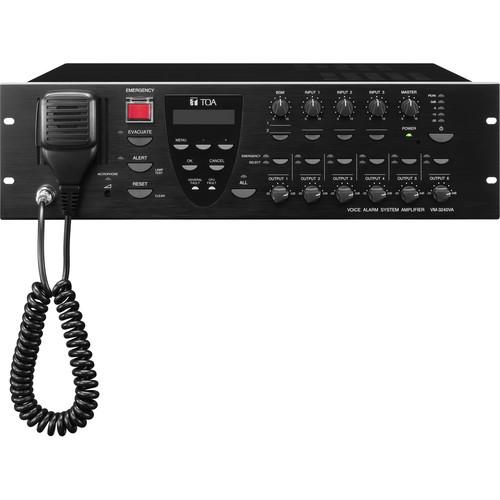

User Manual for Toa Electronics VM-3240VA 240W Voice Alarm System Amplifier Click to enlarge the picture
Contents of the user manual for the Toa Electronics VM-3240VA 240W Voice Alarm
- Product category: 70-Volt Amplifiers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics 70-Volt Amplifiers
|
User manual for the Toa Electronics VM-3240VA 240W Voice Alarm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The VM-3240VA from Toa Electronics is a voice alarm system controller with one 240W power amplifier. It can be mounted in a 3 RU EIA-Standard equipment rack. The unit is equipped with analog audio inputs for music distribution, paging announcements, or pre-recorded audio source playback. Its speaker output section has six individual zone selectors with corresponding volume controls. Up to six general messages/tones and four emergency messages/tones may be uploaded to and stored on the VM-3240VA.
Non-emergency messages can be prioritized (seven levels) and triggered by an RM-200M paging microphone or external contact closures. Emergency broadcasts override all non-emergency operations and are triggered from the front panel or a contact closure. All emergency system connections are monitored. The VM-3240VA is fully compliant with NFPA72 requirements and listed to UL2572, ULC-S576 and UL864 for Mass Notification and Fire Voice applications. In the Box Toa Electronics VM-3240VA 240W Voice Alarm System Amplifier (3 RU) 6.6' Power Cable 2 x 9.8' Link Cable 4 x Plastic Feet and Screws Emergency Microphone 3 x 14-Pin Removable Terminal Plugs 16-Pin Removable Terminal Plug Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics VM-3240VA 240W Voice Alarm System Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics VM-3240VA AMQ Specs | Frequency Response | 50 Hz - 20 kHz, ±3 dB (1/3 rated output)
800 Hz - 2.8 kHz (UL2572)
400 Hz - 4 kHz (CAN/ULC-S576) | | Distortion | 0.7% or less (at rated output, 1 kHz) | | S/N Ratio | 85 dB or more | | Audio Characteristics | Sampling Frequency: 48 kHz
A/D D/A Converter: 24 bit | | Inputs | Input 1 - 3: Combo XLR-1/4" / 6.3 mm jack, -50 dB (Mic) / -10 dB (Line) (changeable), 600 Ohms, electronically balanced
Input 4: 14-pin removable terminal block, -50 dB (Mic) / -10 dB (Line) (changeable), 600 Ohms, electronically balanced
BGM 1 - 2: RCA pin jack, -10 dB, 10 kOhms, unbalanced
External AMP Input: 14-pin removable terminal block, 70 V line | | Outputs | Speaker Output 1 - 2: Max 240 W per output
Speaker Output 3 - 6: Max 100 W per output
Speaker Output 1 - 6: 14-pin removable terminal block, total within rated output
Recommended Minimum Load: 245 Ohms (20 W) at 70 V for speaker line failure detection
Direct Output: 16-pin removable terminal block, direct output from internal or external amplifier
Recording Output BGM/Paging: RCA pin jack, 0 dB, 10 kOhms
Ground Fault Detection: 0 Ohms
Wire to Wire Fault Detection: 0 Ohms | | VM-Link Connectors | Input: RJ45 female, for VM-3240VA
Output: RJ45 female for VM-3240E
Link Cable: Category 5 shielded twisted-pair straight cable (Cat5-STP) | | Link | RM Link
Input 1 - 2: Connection to RM-300MF/200M Remote Microphone, RJ45 female connector
Maximum Distance: Total 2625' / 800 m between this unit and remote microphones
Link Cable: Category 5 shielded twisted-pair straight cable (Cat5-STP)
VM Link
Output: Audio and control link to a VM-3240E extension amplifier, RJ45 female connector
Link Cable: Category 5 shielded twisted-pair straight cable (Cat5-STP)
DS Link
To Local VX-2000DS: RJ45 female connector
Link Cable: Category 5 shielded twisted-pair straight cable (Cat5-STP) | | Network I/F | 10BASE-T/100BASE-TX (automatic negotiation), RJ45 female connector
Maximum Distance: 328' / 100 m between this unit and a switching hub
Link Cable: Category 5 shielded twisted-pair straight cable (Cat5-STP) | | Control | General Control
Input 1 - 8: No-voltage make contact input, open voltage: 24 VDC
Short-Circuit Current: 14-pin removable terminal block, 2 mA or less
Output 1 - 8: Isolated open collector output, withstand voltage: 30 VDC
Operating Current: 14-pin removable terminal block, 10 mA or less
Emergency Control
Input 1 - 5: No-voltage make contact input, open voltage: 24 VDC
Short-Circuit Current: RJ45 female connector, 2 mA or less
Input 6: Isolated voltage input, inactive: -24 V, ±20%
Active: RJ45 female connector, +24 V, ±20%
Status Output: Relay contact output, withstand voltage: 40 VDC
Operating Current: RJ45 female connector, 2 to 300 mA | | Power Input/Output | Power Input: From VX-2000DS only (operating range: 20 to 40 VDC)
PS Output: 28 VDC / 18 A
M4 screw terminal, distance between barriers: 11 mm | | Power Source | 120 VAC, 60 Hz | | Power Consumption | 690 VA (at rated output), 260 W (UL60065), 63 W (no signal) | | Rated Output Power | 240 W, 21 Ohms (UL60065)
200 W, 25 Ohms (UL2572)
200 W, 25 Ohms (CAN/ULC-S576 with separate UPS)
100 W, 50 Ohms (CAN/ULC-S576)
Total amplifier output (1 - 6 and Direct Output) | | DC Output | 22 VDC special application, maximum current 0.3 A (for RM-200M only) | | Operating temperature | 32 to 120°F / 0 to 49°C | | Operating Humidity | 5 to 95% RH (no condensation) | | Finish | Panel: Aluminum, hair-line, black
Case: Surface-treated steel plate, black paint | | Dimensions | 18.98 x 5.22 x 16.98" / 48.2 x 13.3 x 43.1 cm | | Weight | 36.38 lb / 16.5 kg |
