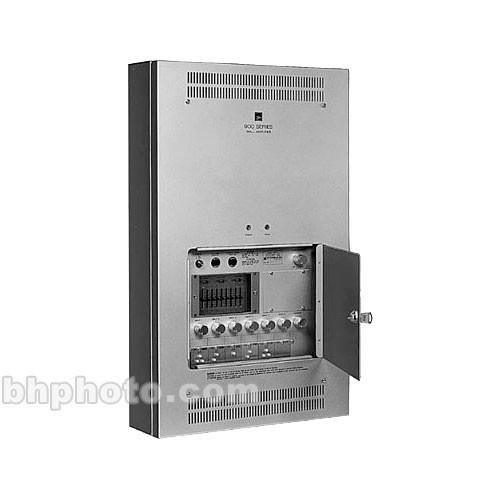

User Manual for Toa Electronics W-912A - 120 Watt 6-Channel In-Wall Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the Toa Electronics W-912A - 120 Watt
- Product category: Mixer/Amplifiers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Mixer/Amplifiers
|
User manual for the Toa Electronics W-912A - 120 Watt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The W-912A from TOA Electronics is an in-wall, 120 watt, six-channel modular mixer/amplifier. A variety of available input, output, and control modules make the W-912A useful for a variety of applications, including paging and background music. It offers a wide frequency response with low noise and distortion for clear, professional audio.
Processing features of the W-912A include a nine-band equalizer, high and low pass filters, and a compressor. A muting function allows input priority override for paging. Protection circuitry for overheating, DC, and overload prevent damage to the system. On power-up, the outputs are momentarily disconnected to prevent damage to speakers. The unit can be flush or surface mounted, and expandability up to eight channels is possible with the optional WE-2. - Unobtrusive in-wall design
- Six module slots for customizability
- High audio performance with a wide frequency response, low noise, and low distortion
- Processing includes a nine-band EQ, high and low pass filters, and a compressor
- Muting function for input priority override
- Protection circuitry for overheating and overload
- Outputs momentarily disconnect when unit is turned on
- Peak and power indicators
- Can be expanded to eight channels with the optional WE-2
In the Box Toa Electronics W-912A - 120 Watt 6-Channel In-Wall Mixer/Amplifier 5 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics W-912A - 120 Watt 6-Channel In-Wall Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics W-912A Specs | Output Power | 120 watts | | Audio Inputs | 6 x Module Slots
1 x Bridging I/O Terminal Connector | | Input Sensitivity | Ports 1-6: 100mV
Bridging I/O: 100mV | | Input Impedance | Ports 1-6: 10 k ohms
Bridging I/O: 3.3 k ohms | | Audio Outputs | Terminal Block Connector with Terminals for Direct 4 ohm Unbalanced Output and Transformer-Isolated 8 ohm, 25V, and 70V Balanced Outputs | | Power Bandwidth | Direct: 20Hz - 20kHz, 0.5% THD
Transformer: 50Hz - 20kHz, 0.5% THD | | Frequency Response | Direct: 30Hz - 20kHz
Transformer: 30Hz - 20kHz | | Total Harmonic Distortion (THD) | 0.02% | | Signal to Noise Ratio | Controls Off: 90dB
Master Volume Max: 77dB
EQ In: 88dB
Compressor In: 84dB | | Equalization | 9-Band, 1 Octave Graphic EQ | | Filters | +/-12dB High/Low Pass | | Compressor | Range: 30dB | | Controls | 1 x Power On/Off
6 x Input Gain Controls
1 x Master Gain Control
1 x Compression Level Control
9 x EQ Controls
1 x EQ On/Off
1 x High-Pass Filter On/Off
1 x Low-Pass Filter On/Off
1 x Low-Cut Switch | | Indicators | 1 x Power LED
1 x Peak LED | | Power | 120VAC, 60Hz | | Power Consumption | 180W | | Dimensions (HxWxD) | 26.75 x 16.25 x 1.1" (680 x 412 x 28 mm) | | Weight | 38.1 lbs (17.3 kg) | | | | Package Weight | 44.0 lb | | Box Dimensions (LxWxH) | 30.31 x 17.6 x 8.27" |
