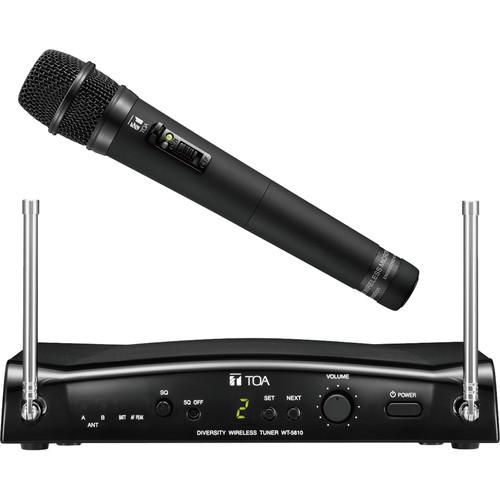

Product description The WS-5225 UHF Wireless Set from Toa Electronics includes the WT-5810 Wireless Tuner and the WM-5225 Handheld Wireless Microphone. The WT-5810 is a PLL-synthesizer controlled, double superhetrodyne diversity tuner that allows you to select an operating frequency out of 16 available frequencies. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise. The WM-5225 wireless unidirectional microphone employs an electret condenser microphone capsule and enables you to choose one transmission frequency out of 64 available frequencies. High-output power ensures stable radio signal transmission. - Tuner
- Compact design for shelf-mount applications
Scanner function
Transmitter battery status display
TOA Space Diversity reception
Double super-heterodyne receiving system
Auto mixing input function
Squelch function (carrier, noise, tone)
Usable frequencies scanning and vacant channel search function
Compander circuitry for minimizing ambient noise
2 x rod antennas
Balanced output (XLR connector) and phone jack output
Low battery indicator - Handheld Microphone
- Electret condenser microphone element
Unidirectional, cardioid pattern
ON/OFF switch prevents the microphone from rolling
Built-in antenna
Low battery indication In the Box Toa Electronics WS-5225 UHF Wireless Tuner and Electret Microphone Set (M1: 506 to 538 MHz) AC Adapter Screw Driver Microphone Holder with Stand Adapter Storage Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics WS-5225 UHF Wireless Tuner and Electret Microphone Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics WS-5225-AM RM1D00 Specs | | | Power Adapter | 120 VAC, 60 Hz | | Power Consumption | 12 VDC, 130 mA | | Receiving Frequency | 506 to 538 MHz, UHF | | Channels | 16 | | Receiving System | Double super-heterodyne | | Diversity | Space diversity | | Mixing Output | 1 x XLR-3 Connector
Mic: -60 dB, 600 Ohms, balanced
1 x 1/4" / 6.3 mm jack
Line: -20 dB, 600 Ohms, unbalanced | | Mixing Input | 1 x 1/4" / 6.3 mm Jack
-20 dB, 10 kOhms, unbalanced | | Antennas | 2 x built-in whip antennas | | Receiving Sensitivity | ≥90 dB, S/N (20 dB µV input, 40 kHz deviation) | | Squelch | Sensitivity: 16 to 40 dB µV variable
System: Noise SQ, carrier SQ, and tone SQ | | Tone Frequency | 32.768 kHz | | Indicators | Antenna A/B, Audio, Battery, Channel number | | S/N Ratio | ≥104 dB (A-weight, unbalanced output) | | Harmonic Distortion | ≤1% (typical) | | Frequency Response | 100 Hz to 15 kHz, ±3 dB | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 30 to 85% RH (no condensation) | | Finish | Resin, black | | Dimensions | 8.1 x 1.6 x 6.0" / 20.6 x 4.1 x 15.3 cm | | Weight | 1.3 lb / 590 g | | | | Microphone Element | Electret condenser microphone unit, unidirectional | | Modulation | Frequency modulation | | Frequency Range | 506 to 538 MHz, UHF | | Channels | 64 | | RF Carrier Power | <50 mW | | Tone Frequency | 32.768 kHz | | Oscillator | PLL synthesized | | Maximum Input Level | 126 dB SPL | | Maximum Deviation | ±40 kHz | | Audio Frequency Response | 100 Hz to 15 kHz | | Dynamic Range | ≥95 dB | | Battery | WB-2000 rechargeable battery (sold separately) or AA alkaline dry cell battery | | Battery Life | WB-2000 Battery: Approx. 13 hours
Alkaline Battery: Approx. 10 hours | | Indicator | Power/battery | | Antenna | Built-in | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 30 to 85% RH (no condensation) | | Finish | Resin coating | | Dimensions | ⌀1.72 x 9.11" / ⌀4.4 x 23.2 cm | | Weight | 0.4 lb / 180 g with battery |
