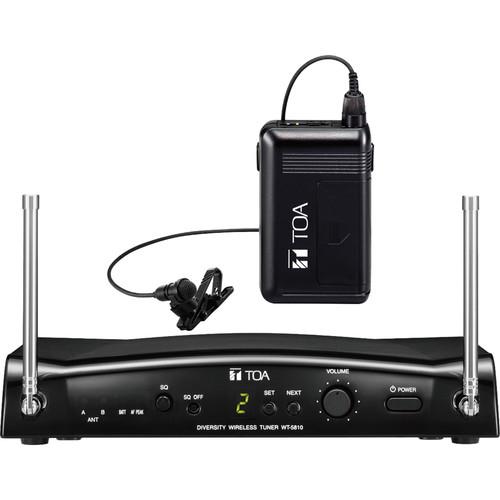

Product description The WS-5325M UHF Wireless Set from Toa Electronics includes the WM-5325 Wireless Transmitter, the WT-5810 Wireless Tuner, and the omnidirectional YP-M5310 Lavalier Microphone. The WM-5325 is a high-output transmitter designed for speech reinforcement applications. With a PLL-synthesizer system, you can select an operating frequency out of 64 available frequencies. The WT-5810 is a PLL-synthesizer controlled, double super-hetrodyne diversity tuner that allows you to select an operating frequency out of 16 available frequencies. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise. - Transmitter
- Built-in circuitry minimizes ambient noise effects
WB-2000 rechargeable battery or single AA battery operation
Connector for 3.5mm mini-plugs
Built-in antenna - Tuner
- Compact design for shelf-mount applications
Scanner function
Transmitter battery status display
TOA Space Diversity reception
Double super-heterodyne receiving system
Auto mixing input function
Squelch function (carrier, noise, tone)
Usable frequencies scanning and vacant channel search function
Compander circuitry for minimizing ambient noise
2 x rod antennas
Balanced output (XLR connector) and phone jack output
Low battery indicator - Microphone
- Omnidirectional electret condenser microphone element
Maximum input level: 100 dB SPL
3.5mm connector In the Box Toa Electronics WS-5325M UHF Wireless Tuner, Transmitter, and Microphone Set (M1: 506 to 538 MHz) AC Adapter Screw Driver Storage Case Neck Strap Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics WS-5325M UHF Wireless Tuner, Transmitter, and Microphone Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics WS-5325M-AM RM1D00 Specs | | | Modulation | Frequency modulation | | Frequency Range | 506 to 538 MHz, UHF | | Channels | 64 | | RF Carrier Power | <50 mW | | Tone Frequency | 32.768 kHz | | Oscillator | PLL synthesized | | Maximum Input Level | -14 to -29 dB | | Maximum Deviation | ±40 kHz | | Audio Frequency Response | 100 Hz to 15 kHz | | Battery | WB-2000 rechargeable battery (sold separately) or AA alkaline dry cell battery | | Battery Life | WB-2000 Battery: Approx. 13 hours
Alkaline Battery: Approx. 10 hours | | Indicator | Power/battery | | Antenna | Built-in | | Connector | 1/4" / 3.5 mm mini plug | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 30 to 85% RH (no condensation) | | Finish | Resin coating | | Dimensions | 2.4 x 4.0 x 0.9" / 6.2 x 10.3 x 2.3 cm | | Weight | 3.2 oz / 90 g | | | | Power Adapter | 120 VAC, 60 Hz | | Power Consumption | 12 VDC, 130 mA | | Receiving Frequency | 506 to 538 MHz, UHF | | Channels | 16 | | Receiving System | Double super-heterodyne | | Diversity | Space diversity | | Mixing Output | 1 x XLR-3 Connector
Mic: -60 dB, 600 Ohms, balanced
1 x 1/4" / 6.3 mm jack
Line: -20 dB, 600 Ohms, unbalanced | | Mixing Input | 1 x 1/4" / 6.3 mm Jack
-20 dB, 10 kOhms, unbalanced | | Antennas | 2 x built-in whip antennas | | Receiving Sensitivity | ≥90 dB, S/N (20 dB µV input, 40 kHz deviation) | | Squelch | Sensitivity: 16 to 40 dB µV variable
System: Noise SQ, carrier SQ, and tone SQ | | Tone Frequency | 32.768 kHz | | Indicators | Antenna A/B, Audio, Battery, Channel number | | S/N Ratio | ≥104 dB (A-weight, unbalanced output) | | Harmonic Distortion | ≤1% (typical) | | Frequency Response | 100 Hz to 15 kHz, ±3 dB | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 30 to 85% RH (no condensation) | | Finish | Resin, black | | Dimensions | 8.1 x 1.6 x 6.0" / 20.6 x 4.1 x 15.3 cm | | Weight | 1.3 lb / 590 g | | | | Type | Electret condenser | | Directivity | Omnidirectional | | Sensitivity | -64 | | Frequency Response | 100 Hz to 15 kHz | | Maximum Input Level | 110 dB SPL | | Cord Length | 4.27' / 1.3 m | | Connector | 1/8" / 3.5 mm mini plug | | Finish | Dark black | | Weight | 0.71 oz / 20 g (with cable) |
