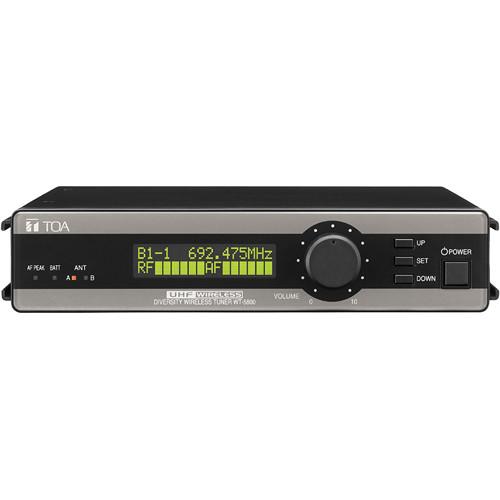

User Manual for Toa Electronics WT-5800 E01US True Diversity 64-Channel Wireless Tuner Click to enlarge the picture
Contents of the user manual for the Toa Electronics WT-5800 E01US True Diversity
- Product category: Wireless Receivers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Wireless Receivers
|
User manual for the Toa Electronics WT-5800 E01US True Diversity contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The WT-5800 E01US True Diversity 64-Channel Wireless Tuner from Toa Electronics is designed for use on the UHF band, and is suitable for vocal or speech reinforcement applications. It features a compander circuit, which minimizes the influence of ambient noise. The WT-5800 E01US Wireless Tuner is a PLL-synthesizer controlled double superheterodyne true diversity tuner to be used in UHF wireless systems. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise. - An optimized PLL-synthesizer drastically minimizes the oscillation frequency drift resulting from the ambient temperature changes
- The Scan function indicates available idle channels and is useful when changing the operating frequency
- The LCD screen indicates the current operating frequency, as well as RF and AF levels
- Antenna distribution outputs and audio cascade inputs facilitate connection of another unit to build a dual-channel system
- Front panel
- Output volume control
Power On/Off switch
LEDs: Antenna A/B, Battery
Peak and Power
Front Panel LCD
RF and AF Metering - Rear panel
- Outputs: XLR-M (mic) and 1/4" phone jack (line)
Mix-In 1/4" jack (line) - Transmitter battery status display
- Compact and high reliability
In the Box Toa Electronics WT-5800 E01US True Diversity 64-Channel Wireless Tuner (Band E01: 668 to 698 MHz) AC-DC Adapter (120VAC, 60 Hz) 2 x Whip Antenna 4 x Rubber Foot Limited 5-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics WT-5800 E01US True Diversity 64-Channel Wireless Tuner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics WT-5800 E01US Specs | Receiving Frequency | 668 to 698 MHz, UHF | | Selectable Channels | 64 selectable frequencies | | System | Receiving: Double super-heterodyne
Diversity: Space diversity (true diversity)
Squelch: Using together of noise SQ, carrier SQ, and tone SQ | | Input | AF Mixing: -20 dB, 10 kΩ, unbalanced, phone jack
Antenna: 75 Ω, BNC (phantom powering for antenna), 9 VDC, 30 mA (maximum) 0 dB = 1 V | | Output | AF: MIC/LINE: -60 dB (MIC)/-20 dB (LINE) selectable, 600 Ω Phone jack (unbalanced), XLR-3-31 type connector (balanced)
Antenna: 75 Ω, BNC (Gain 0 dB) 0 dB = 1 V | | Sensitivity | Receiving: Over 90 dB, S/N ratio (20 dBµV input, 40 kHz deviation)
Squelch: 18 to 40 dBµV variable | | Frequency | Tone: 32.768 kHz | | Indicators | Audio (6 steps), RF (6 steps), ANT A/B, Audio (peak), Battery alarm | | Channel | Check: Usable frequencies scanning | | S/N Ratio | Over 110 dB (A-weight, unbalanced output) | | Total Harmonic Distortion | Under 1% (typical) | | Frequency Response | 100 to 15,000 Hz, ±3 dB | | Finish | Resin, Black | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions (W x H x D) | 8.2 x 1.7 x 8.0" (210.0 x 44.0 x 205.1 mm ) | | Weight | 24.6 oz (700.0 g) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 13.4 x 9.9 x 3.0" |
