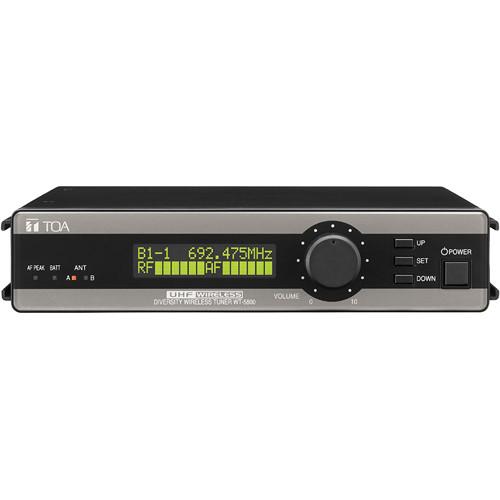

Product description The WT-5800 H01US True Diversity 64-Channel Wireless Tuner from Toa Electronics is designed for use on the UHF band, and is suitable for vocal or speech reinforcement applications. It features a compander circuit, which minimizes the influence of ambient noise. The WT-5800 H01US Wireless Tuner is a PLL-synthesizer controlled double superheterodyne true diversity tuner to be used in UHF wireless systems. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise. - An optimized PLL-synthesizer drastically minimizes the oscillation frequency drift resulting from the ambient temperature changes
- The Scan function indicates available idle channels and is useful when changing the operating frequency
- The LCD screen indicates the current operating frequency, as well as RF and AF levels
- Antenna distribution outputs and audio cascade inputs facilitate connection of another unit to build a dual-channel system
- Front panel
- Output volume control
Power On/Off switch
LEDs: Antenna A/B, Battery
Peak and Power
Front Panel LCD
RF and AF Metering - Rear panel
- Outputs: XLR-M (mic) and 1/4" phone jack (line)
Mix-In 1/4" jack (line) - Transmitter battery status display
- Compact and high reliability
In the Box Toa Electronics WT-5800 H01US True Diversity 64-Channel Wireless Tuner (Band H01: 576 to 606 MHz) AC-DC Adapter (120VAC, 60 Hz) 2 x Whip Antenna 4 x Rubber Foot Limited 5-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics WT-5800 H01US True Diversity 64-Channel Wireless Tuner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics WT-5800 H01US Specs | Receiving Frequency | 576 to 606 MHz, UHF | | Selectable Channels | 64 selectable frequencies | | System | Receiving: Double super-heterodyne
Diversity: Space diversity (true diversity)
Squelch: Using together of noise SQ, carrier SQ, and tone SQ | | Input | AF Mixing: -20 dB, 10 kΩ, unbalanced, phone jack
Antenna: 75 Ω, BNC (phantom powering for antenna), 9 VDC, 30 mA (maximum) 0 dB = 1 V | | Output | AF: MIC/LINE: -60 dB (MIC)/-20 dB (LINE) selectable, 600 Ω Phone jack (unbalanced), XLR-3-31 type connector (balanced)
Antenna: 75 Ω, BNC (Gain 0 dB) 0 dB = 1 V | | Sensitivity | Receiving: Over 90 dB, S/N ratio (20 dBµV input, 40 kHz deviation)
Squelch: 18 to 40 dBµV variable | | Frequency | Tone: 32.768 kHz | | Indicators | Audio (6 steps), RF (6 steps), ANT A/B, Audio (peak), Battery alarm | | Channel | Check: Usable frequencies scanning | | S/N Ratio | Over 110 dB (A-weight, unbalanced output) | | Total Harmonic Distortion | Under 1% (typical) | | Frequency Response | 100 to 15,000 Hz, ±3 dB | | Finish | Resin, Black | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions (W x H x D) | 8.2 x 1.7 x 8.0" (210.0 x 44.0 x 205.1 mm ) | | Weight | 24.6 oz (700.0 g) | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 13.583 x 9.843 x 3.15" |
