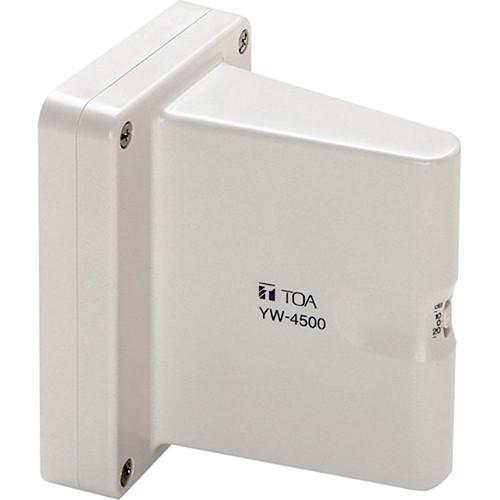

User Manual for Toa Electronics YW-4500 Remote Di-Pole Antenna for TOA WT-4800 Receiver or WD-4800 Antenna Distribution System Click to enlarge the picture
Contents of the user manual for the Toa Electronics YW-4500 Remote Di-Pole Antenna
- Product category: Antennas Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Antennas
|
User manual for the Toa Electronics YW-4500 Remote Di-Pole Antenna contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The TOA YW-4500 is a powered, fixed mount indoor di-pole antenna for use with the TOA WT-4800 receiver, WD-4800 antenna distribution system or any UHF wireless microphone system operating on the 680 to 880 MHz UHF band. The antenna greatly improves reception at long range and in areas with high residual RF traffic. The YW-4500 is an ideal solution for stage performances and presentations where multiple receivers will be used simultaneously. - Built-in antenna booster compensates for signal degradation
- Power indicator LEDs accurately displays status
In the Box Toa Electronics YW-4500 Remote Di-Pole Antenna for TOA WT-4800 Receiver or WD-4800 Antenna Distribution System Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics YW-4500 Remote Di-Pole Antenna for TOA WT-4800 Receiver or WD-4800 Antenna Distribution System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics YW-4500 Specs | Power | 7 to 12 V DC (supplied from tuner)
Consumption: under 24 mA | | Frequency Range | 680 to 880 MHz, UHF | | Antenna Gain | More than 8 dB (0 dB Position) | | Output Impedance | 75 ohms | | Cable Type | Recommended Cable Type: RG-6/U or RG-11/U | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Weight | 10.6 oz (300 g) | | Color | Off-White | | | | Package Weight | 0.99 lb | | Box Dimensions (LxWxH) | 6.89 x 6.1 x 5.71" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
