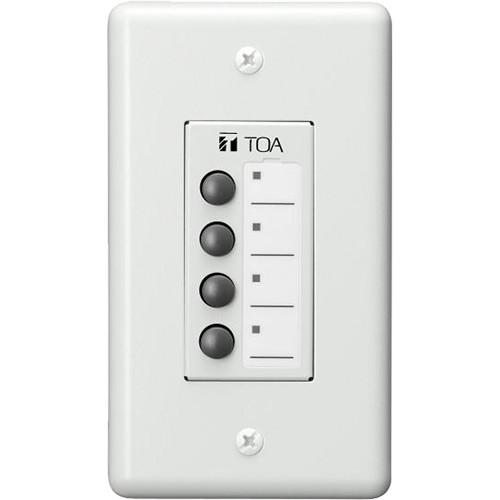

User Manual for Toa Electronics ZM-9011 Assignable Remote Control Panel Click to enlarge the picture
Contents of the user manual for the Toa Electronics ZM-9011 Assignable Remote Control
- Product category: Switchers & Controllers Toa Electronics
- Brand: Toa Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toa Electronics Switchers & Controllers
|
User manual for the Toa Electronics ZM-9011 Assignable Remote Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toa Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toa Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toa Electronics product will considerably shorten its lifespan!
|
Product description The ZM-9011 Assignable Remote Control Panel from Toa Electronics is a wall mounted remote control panel designed exclusively for use with the 9000M2 series amplifier. Its 4 assignable buttons can be used in conjunction with the RC-001T remote control module or the M-864D.
The buttons have LED status indicators, and their function can be assigned to control Xpoint settings (on/off, select), paging activation, and scene and relay activation. No electrical box is supplied with the unit, which can be mounted in the wall in an optionally purchased American standard 1-gang electrical box. The 9011 has an assignable ID rotary adjustment on the box and is supplied with a matching decor plate. In the Box Toa Electronics ZM-9011 Assignable Remote Control Panel 2 x Box Mounting Screws (No.6-32UNC x 30) Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics ZM-9011 Assignable Remote Control Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics ZM-9011 Specs | Power Source | 24 V DC (supplied from RC-001T or M-864D) | | Current Consumption | 50 mA or less | | Terminal | Removable terminal block (10 pins) | | Connection Cable | Shielded CPEV cable (paired data line and paired power line)
or
Category 5 twisted pair cable for LAN (CAT5-STP) | | Operating Mode | 4x Function buttons | | Indicator LEDs | 4x Function indicators (green LEDS) | | Operating Temperature | 32 to 104° F (0 to 40° C) | | Operating Humidity | 35 to 80% RH (no condensation) | | Finish | Surface-treated steel plate, white paint | | Dimensions (W x H x D) | 2.8 x 5.0 x 1.9" (72.0 x 127.0 x 49.5 mm) | | Weight | 0.35 lb ( 160 g) | | | | Package Weight | 0.66 lb | | Box Dimensions (LxWxH) | 6.299 x 4.724 x 2.559" |
