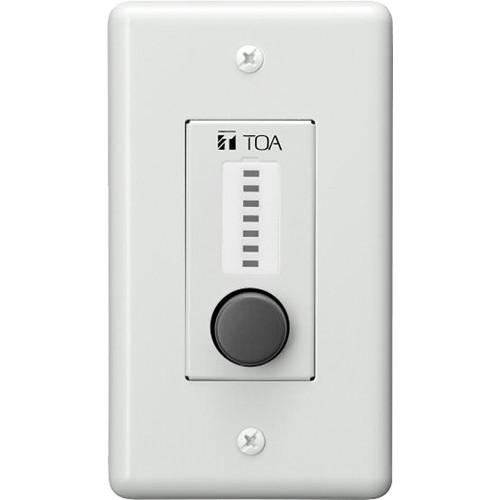

Product description The ZM-9012 Assignable Volume Controller from TOA Electronics is an assignable volume controller designed for use with the optionally purchasable 9000M2 Series amplifier, or the M-864D digital mixer. The ZM-9012 is a wall mounted remote control panel with a rotary encoder, which can be assigned to control any input or volume level. Multiple inputs or outputs may be "ganged" together for singular control of the master volume level. A multi-segment LED indicator provides visual volume level status.
The ZM-9012 can be used in conjunction with the separately purchased RC-001T remote control module or with the M-864D mixer. The remote controller features a removable terminal block and is supplied with a matching décor plate. The ZM-9012 can be mounted in an American standard 1-gang electrical box in the wall.
Please note that no electrical box is supplied with the ZM-9012. In the Box Toa Electronics ZM-9012 Assignable Volume Controller 2 x Box Mounting Screws (No.6-32UNC x 30) Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics ZM-9012 Assignable Volume Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics ZM-9012 Specs | | | Power Source | 24 V DC (supplied from RC-001T or M-864D) | | Current Consumption | 50 mA or less | | Terminal | Removable terminal block (10 pins) | | Connection Cable | Shielded CPEV (paired data line and paired power line)
or
Cat5 twisted pair for LAN (Cat5-STP) | | Controls | 1 Volume control | | Indicator LEDs | Multi-segment / Green | | Operating Temperature | 32 to 104° F (0 to 40° C) | | Operating Humidity | 35 to 80% RH (no condensation) | | | | Finish | Surface-treated steel plate, white, paint | | Dimensions (W x H x D) | 2.8 x 5.0 x 2.3" (72 x 127 x 58 mm) | | Weight | 0.35 lb (160 g) | | | | Package Weight | 0.66 lb | | Box Dimensions (LxWxH) | 6.299 x 4.724 x 2.559" |
