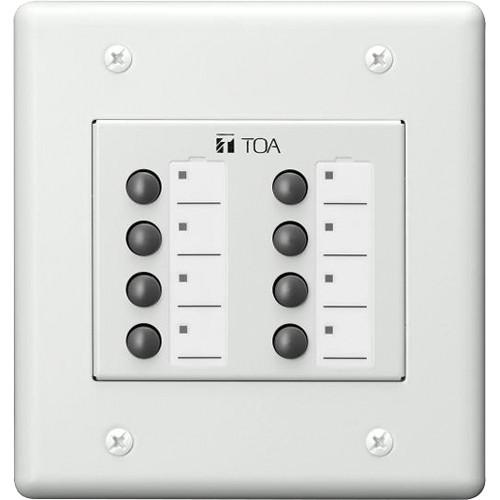

Product description Provided by third party: The ZM-9013 Remote Control Panel from TOA is designed for use with the TOA 9000M2 Series Amplifier or the M-864D Digital Stereo Mixer. It is a wall-mounted remote control panel with eight function buttons and corresponding LED indicators. This item can be used in conjunction with the RC-001T Remote Control Module or M-864D for a power source. The ZM-9013 can be mounted in an American standard 2-gang electrical box in the wall and includes the necessary mounting hardware. - Eight assignable buttons each with LED status indicator can control Xpoint settings (on/off, select), paging activation, scene and relay activation
- Assignable ID rotary adjustment on box
In the Box Toa Electronics ZM-9013 Remote Control Panel 4 x Box Mounting Screws (No. 6-32 UNC x 30mm) 4 x Box Mounting Screws (M4 x 30 mm) 4 x Panel Mounting Screws Removable Terminal Plug Connector Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics ZM-9013 Remote Control Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics ZM-9013 Specs | Power Source | 24 V DC (supplied for RC-0001T or M-864D) | | Current Consumption | 50 mA or less | | Terminal | Removable terminal block (10 pins) | | Connection Cable | Shielded CPEV cable (paired data line and paired power line) or Category 5 twisted pair cable for LAN (CAT5-STP) | | LED Indicator | 8 function indicators (green) | | Material | Surface-treated steel plate finish | | Dimensions (W x H x D) | 4.7 x 5.0 x 2.0" (11.9 x 12.7 x 5.1 cm) | | Weight | 0.82 lb (0.37 kg) | | | | Package Weight | 0.66 lb | | Box Dimensions (LxWxH) | 6.89 x 6.299 x 3.15" |
