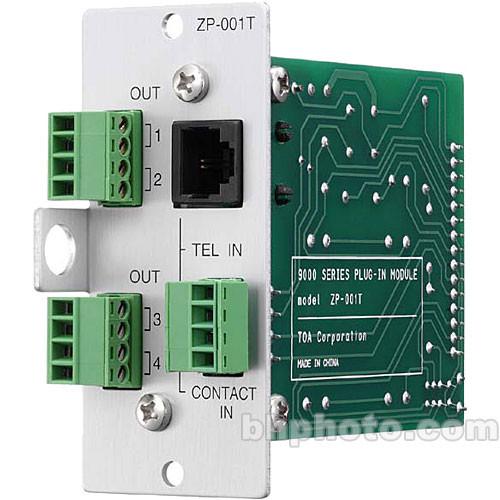

Product description The ZP-001T from TOA Electronics is a telephone zone paging module for use with 9000 series amplifiers. It allows telephone access paging to up to eight different zones in one operation and uses DTMF dialing to access amplifier and/or line outputs. It is analog extension or page port compatible; page port operation requires contact closure activation. It has an RJ-11 jack and three 4-pin removable terminal blocks for connection. Note: Only one ZP-001T module may be installed in an amplifier chassis. In the Box Toa Electronics ZP-001T - Telephone Zone Paging Module for 9000 Series Amplifiers 5 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toa Electronics ZP-001T - Telephone Zone Paging Module for 9000 Series Amplifiers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToa Electronics ZP-001T Specs | Power Source | +24 VDC, +6 VDC | | Current Consumption | 38 mA @ +24 VDC
18 mA @ +6 VDC | | Number of Lines | 1 | | Type of Selectable Signal | DTMF Signal | | Signaling System | Loop-Start or Ground-Start (Selectable) | | TEL Line | 0dB, 600 ohm, Balanced, RJ-11 Connector/4-Pin Removable Terminal Block | | Control Input | 1 Channel, No-Voltage Make Contact, Open Voltage: 5 VDC,
Short-Circuit Current: 0.5 mA, 4-Pin Removable Terminal Block | | Control Output | 4 Channels, Open-Collector Output (Isolated), Withstand Voltage: 35 VDC,
Control Current: 50 mA Max, 4-Pin Removable Terminal Block | | Operating Temperature | -10 Degrees C to +40 Degrees C | | Dimensions (WxHxD) | 1.4 x 3.1 x 3.6" (35 x 78 x 92 mm) | | Weight | 5.4 oz (153 g) | | | | Package Weight | 0.42 lb | | Box Dimensions (LxWxH) | 4.17 x 3.23 x 1.65" |
