User Manual for Tokina 25mm T1.5 Cinema Vista Prime Lens Click to enlarge the picture
Contents of the user manual for the Tokina 25mm T1.5 Cinema Vista Prime
- Product category: Digital Cine Lenses Tokina
- Brand: Tokina
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tokina Digital Cine Lenses
 |
User manual for the Tokina 25mm T1.5 Cinema Vista Prime contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tokina product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tokina user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tokina product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More - NAB 2019: Tokina Vista One and Vista Prime Lenses

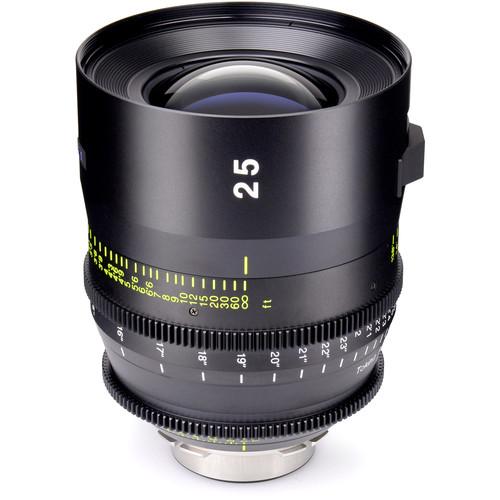

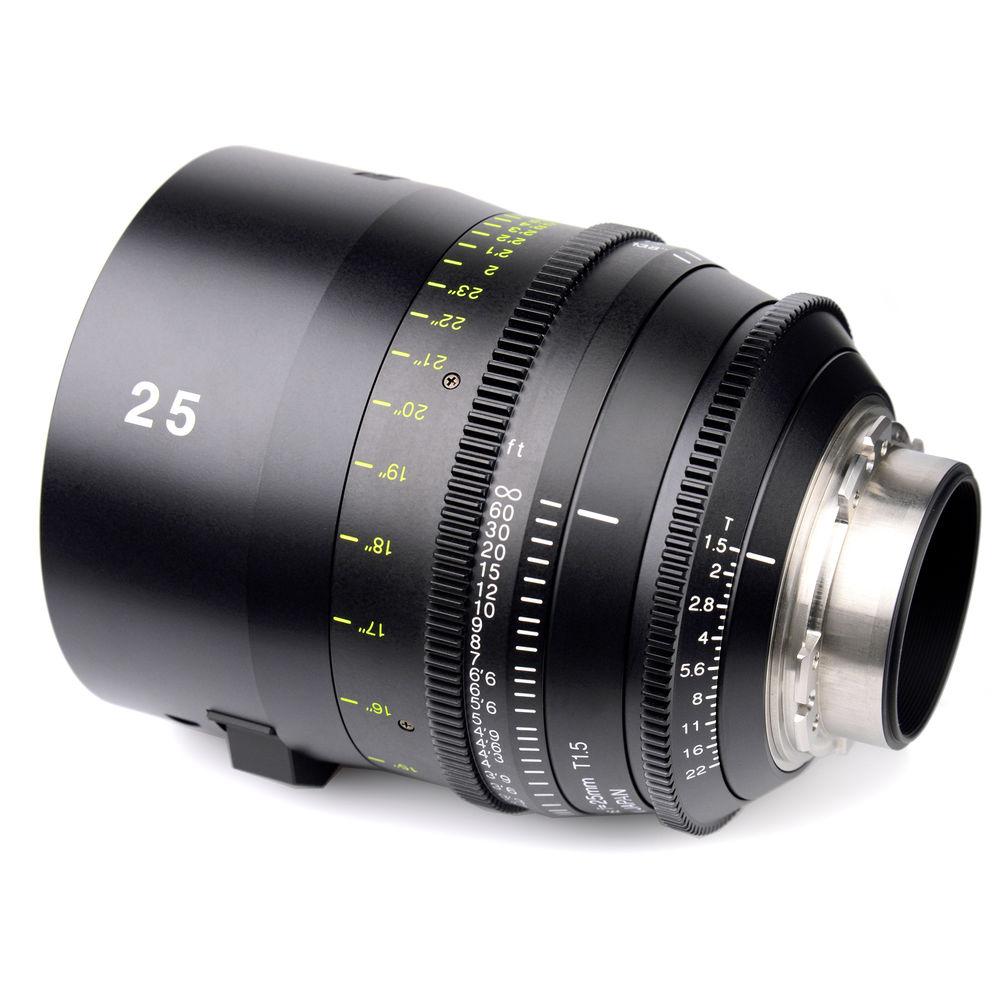

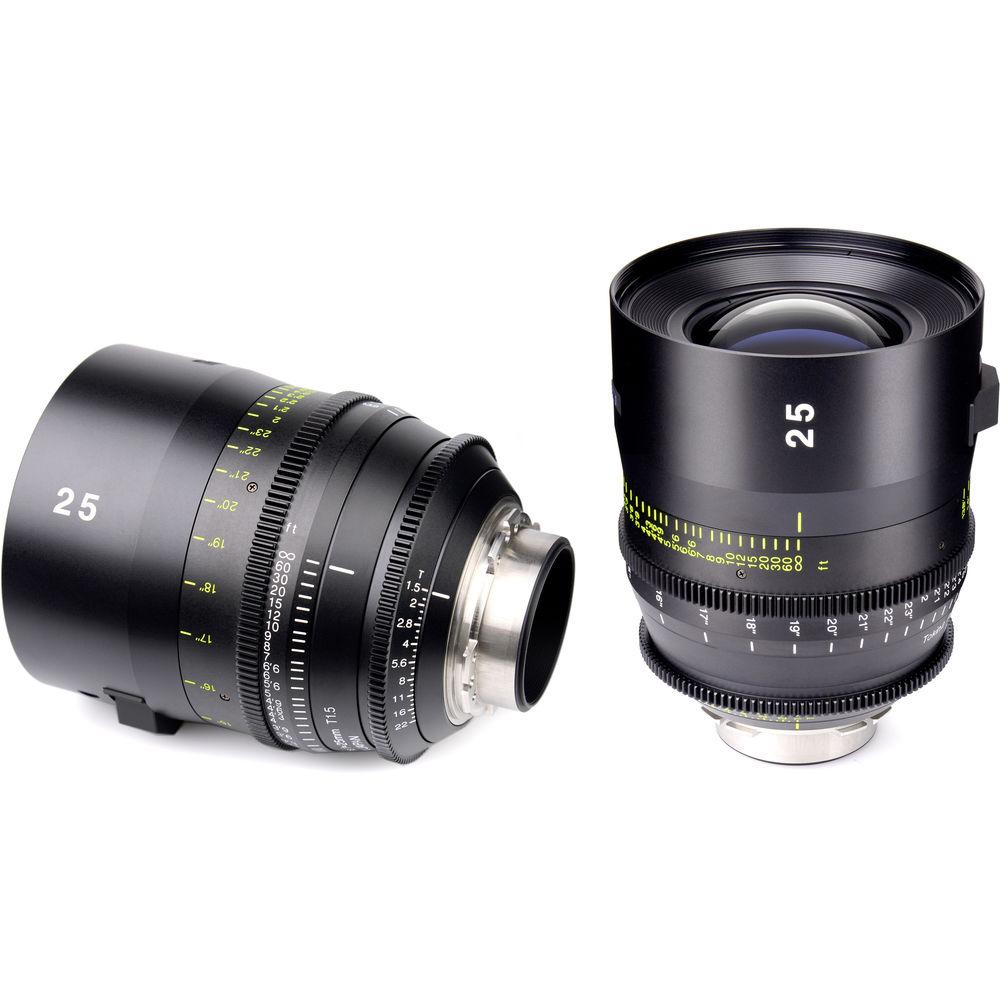

The Tokina 25mm T1.5 Cinema Vista Prime Lens with a Canon EF mount and with focus scales marked in feet, provides an image circle that more than covers full-frame sensors, and is designed to provide sharp images even when recording images at 8K resolution. This 25mm focal length lens shares the same form factor, lens gear position, focus rotation, and front barrel diameter as the other Tokina Cinema Vista prime lenses. This makes on-set lens changes a fast and efficient operation. It features a maximum T stop of 1.5, useful when shooting in low light situations, or when you want to capture that exceedingly shallow depth of field look.The 9-bladed iris provides round, out of focus highlights for a natural looking bokeh. The Cinema Vista Prime lenses are designed to minimize focus breathing, and feature geared, manual focus and iris rings. Markings on both sides of the lens barrel make it readable from either side of the camera. - Features
-
- The 25mm T1.5 Canon EF mount prime lens focuses images on a sensor with full 8K-resolution and features a 46.7mm image circle, which easily covers standard-sized full-frame sensors.
- The use of a 9-blade iris produces a smooth, round appearance to out of focus specular highlights. The iris also produces a pleasing bokeh, referring to natural looking out of focus areas of the image. The iris is manual, and features smooth movement without click stops for smooth exposure adjustments while recording.
- The lens has markings on both sides of the barrel, making it easy to read focus and aperture settings from behind, or from either side of the camera.

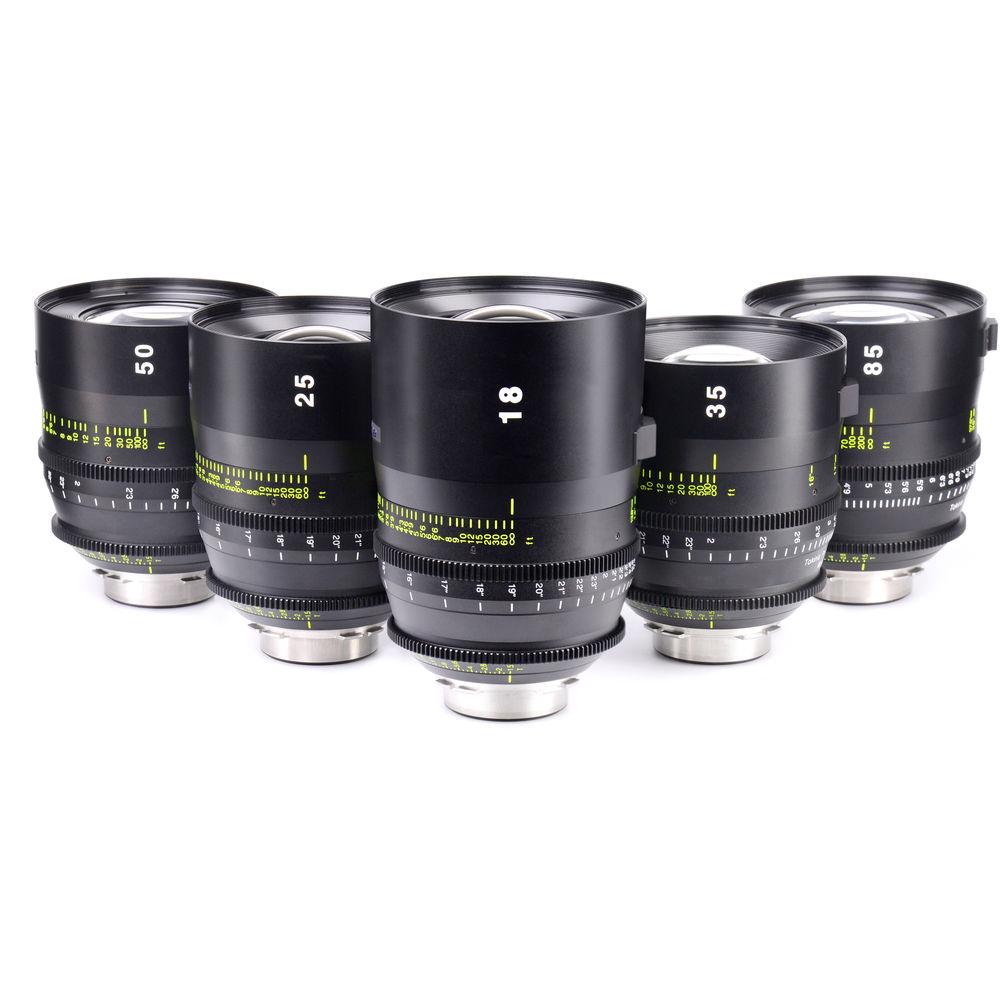

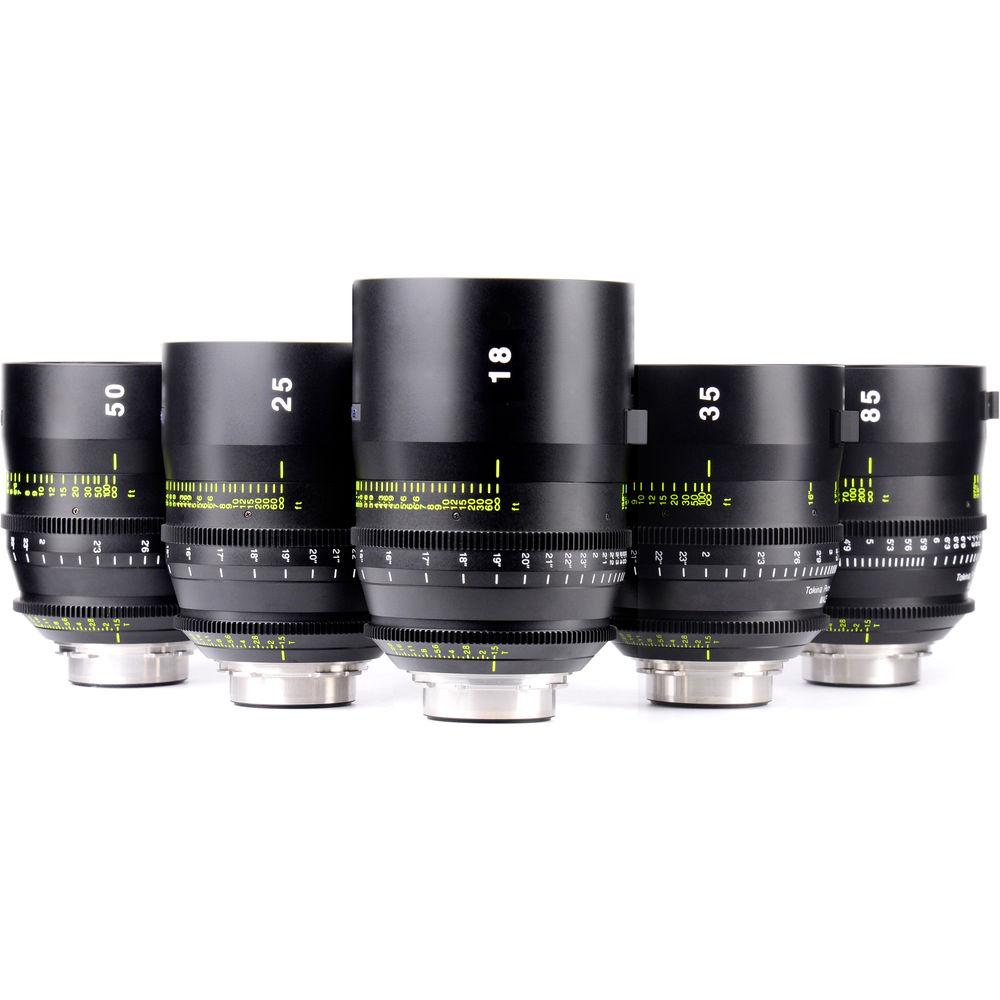

- The lens shares the same front lens diameters and gear positioning on the focus and iris rings as the other lenses in the series, making lens switching quick and convenient.
- Designed to minimize variations in the angle of view while focusing, a phenomenon known as focus breathing. This feature is extremely important while pulling focus, especially on static shots, where focus breathing is more noticeable.
- The lens features threading on the front of the lens to accommodate 112mm screw on filters. This feature allows the camera operator to add filters over the lens without taking up a filter stage in a matte box.
In the Box Tokina 25mm T1.5 Cinema Vista Prime Lens (EF Mount, Focus Scale in Feet) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tokina 25mm T1.5 Cinema Vista Prime Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTokina Cinema Vista 25mm T1.5 Specs | Focal Length | 25mm | | Lens Mount | Canon EF | | Format | Full Frame | | Image Circle | 46.7 mm | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T22 | | Minimum Focus Distance from Image Plane | 13.86" / 0.35 m | | Optical Design | 16 Elements in 15 Groups | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 114 mm | | Filter Thread | 112 mm | | Focus Scales | Imperial | | Electronic Communication | No | | Tripod Mounting Thread | 1/4"-20 | | Length | 6.10" / 155 mm Overall length | | Weight | 5.1 lb / 2.3 kg | | | | Package Weight | 6.55 lb | | Box Dimensions (LxWxH) | 9.3 x 8.0 x 7.1" |
