Tokina 35mm T1.5 Cinema Vista Prime

Search your instruction manual in PDF to download

User Manual for Tokina 35mm T1.5 Cinema Vista Prime Lens

Click to enlarge the picture
Tokina 35mm T1.5 Cinema Vista Prime Lens Contents of the user manual for the Tokina 35mm T1.5 Cinema Vista Prime
  • Product category: Digital Cine Lenses Tokina
  • Brand: Tokina
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Tokina Digital Cine Lenses

User manual for the Tokina 35mm T1.5 Cinema Vista Prime contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Tokina product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Tokina user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Tokina product will considerably shorten its lifespan!



Product description

Cinema Lens Care and Maintenance Read More
  • NAB 2019: Tokina Vista One and Vista Prime Lenses

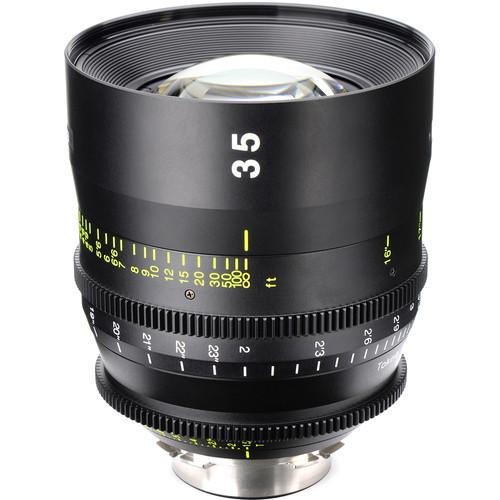

The Tokina 35mm T1.5 Cinema Vista Prime Lens with an E mount and with focus scales marked in feet, provides an image circle that more than covers full-frame sensors and is designed to provide sharp images even when recording images at 8K resolution. This is a 35mm focal length lens, and shares the same form factor, lens gear position, focus rotation, and front barrel diameter as the other Tokina Cinema Vista prime lenses. This makes on-set lens changes a fast and efficient operation. It features a maximum T stop of 1.5, useful when shooting in low light situations or when you want to capture that exceedingly shallow depth of field look.

The 9-bladed iris provides round out of focus highlights for a natural looking bokeh. The lens barrel features approximately 300° of rotation from close focus to infinity; this gives you a high degree of precision when pulling focus. The lens is designed to minimize focus breathing, and features geared manual focus and iris rings. Markings on both sides of the lens barrel make it readable from either side of the camera.
  • The 35mm T1.5 E mount prime lens is capable of focusing images on a sensor with full 8K-resolution and features a 46.7 mm image circle, which easily covers standard-sized full-frame sensors.
  • The use of a 9-blade iris produces a smooth round appearance to out of focus specular highlights. The iris also produces a pleasing bokeh, referring to natural looking out of focus areas of the image. The iris is manual and features smooth movement without click stops for smooth exposure adjustments while recording.
  • The lens has markings on both sides of the barrel, making it easy to read focus and aperture settings from behind or from either side of the camera.
  • The lens shares the same front lens diameters and gear positioning on the focus and iris rings as the other lenses in the series, making lens switching quick and convenient. Additionally, the focus ring features approximately 300º of smooth rotation to help facilitate consistently accurate focusing especially when pulling focus during a shot.
  • Designed to minimize variations in the angle of view while focusing, a phenomenon known as focus breathing. This feature is extremely important while pulling focus, especially on static shots, where focus breathing is more noticeable.
  • The lens features threading on the front of the lens to accommodate 112 mm screw on filters. This feature allows the camera operator to add filters over the lens without taking up a filter stage in a matte box.
In the Box Tokina 35mm T1.5 Cinema Vista Prime Lens (E Mount, Focus Scale in Feet)
  • Front Lens Cap
  • Rear Lens Cap
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Tokina 35mm T1.5 Cinema Vista Prime Lens in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Tokina Cinema Vista 35mm T1.5 Specs

    Focal Length 35mm fixed focal length
    Maximum Aperture T = 1.5
    Diaphragm Blades 9 blades
    Image Circle 46.7 mm
    Optical Construction 13 groups
    14 elements
    Maximum Macro Magnification 1:7.81
    Minimum Focus Distance 16" / 40.64 cm
    Front Lens Diameter 114 mm
    Front Filter Thread Size 112
    Support 1/4"-20 threaded female mounting hole
    Overall Length 6.73" / 17.1 cm
    6.5" / 16.5 cm (from front mount surface)
    Weight 4.67 lb / 2.12 kg
    Package Weight 6.4 lb
    Box Dimensions (LxWxH) 9.3 x 8.0 x 7.2"
