User Manual for Tokina Cinema ATX 11-20mm T2.9 Wide-Angle Zoom Lens Click to enlarge the picture
Contents of the user manual for the Tokina Cinema ATX 11-20mm T2.9 Wide-Angle
- Product category: Digital Cine Lenses Tokina
- Brand: Tokina
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tokina Digital Cine Lenses
 |
User manual for the Tokina Cinema ATX 11-20mm T2.9 Wide-Angle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tokina product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tokina user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tokina product will considerably shorten its lifespan!
|

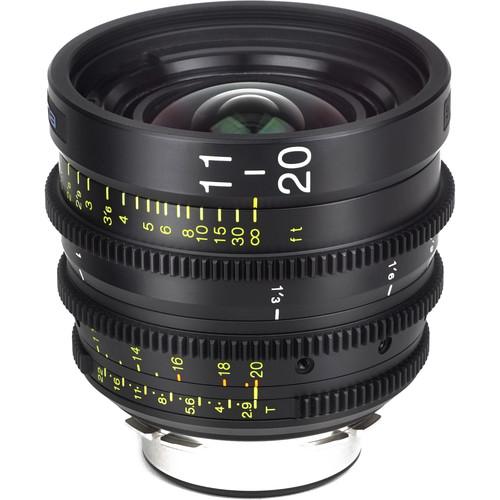

Product description It's a Wide, Wide, Wide World with the Tokina 11-20 Cinema ATX Read More The Tokina Cinema ATX 11-20mm T2.9 Wide-Angle Zoom Lens (Sony E Mount) features a super-wide field of view and cine-style design elements. It covers Super 35mm image sensors and is a parfocal lens, holding focus throughout zoom moves. The Cinema ATX 11-20mm maintains a constant T2.9 aperture throughout its zoom range, eliminating the need for exposure compensation as you zoom in. Its durable metal housing withstands the rigors of cine production and incorporates 0.8 Mod lens gears for compatibility with FIZ (focus/iris/zoom) control systems.Interchangeable EF, LPL, PL, MFT, and Nikon F lens mounts are available separately for swapping with the Sony E mount, expanding the lens's compatibility with additional cameras. The Tokina Cinema ATX 11-20mm incorporates low-distortion glass, and its 9-bladed iris produces attractive bokeh in out-of-focus areas. Focus (feet), iris, and zoom settings are marked on both sides of the lens barrel.Additional cine features include a minimum focus distance of 12", 300° of focus rotation, and an industry-standard 95mm front diameter compatible with most pro-style matte boxes. An 86mm front thread provides a second filtration option especially useful for low-profile or lightweight rig configurations. Note: Lens mounts may be changed by the user but mounting by a lens service center is recommended to ensure accurate focus scales. - Features
-
- Compact, wide-angle T2.9 zoom lens covers Super 35mm sensors
- Sony E mount is interchangeable with separately available EF, PL, LPL, MFT, and Nikon F mounts
- Cine-style 0.8 Mod lens gears are designed for use with FIZ (focus, iris, zoom) systems
- A constant T2.9 aperture is maintained throughout the zoom range
- Low distortion glass
- 9-bladed iris for precise exposure control and attractive bokeh
- 12" minimum focus distance enables wide but close shots
- Parfocal lens design maintains focus while zooming
- The 95mm front diameter fits most pro-style matte boxes and adapters
- The all-metal, cine-style housing includes a front 86mm filter thread
- Focus (feet), iris, and zoom marks are on both sides of the lens barrel
In the Box Tokina Cinema ATX 11-20mm T2.9 Wide-Angle Zoom Lens (Sony E Mount) Limited 1-Year Warranty Cinema Lens Care and Maintenance Mary Latvis 03/29/2017 Table of Contents
|
Upload User Manual
Have you got an user manual for the Tokina Cinema ATX 11-20mm T2.9 Wide-Angle Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTokina Cinema ATX 11-20mm T2.9 Specs | Focal Length | 11 to 20mm | | Lens Mount | Sony E | | Format | Super35/APS-C | | Image Circle | 30.0 mm | | Maximum T-Stop | T2.9 | | Maximum F-Stop | f/2.8 | | Minimum T-Stop | T22 | | Minimum F-Stop | f/22 | | Minimum Focus Distance from Image Plane | 0.98' / 0.3 m | | Optical Design | 14 Elements in 12 Groups | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 86 mm | | Focus Scales | Imperial | | Focus Rotation | 300° | | Zoom Ratio | 1.82x | | Electronic Communication | No | | Maximum Magnification Ratio | 1:9.65 | | Length | 3.92" / 99.5 mm Overall length. | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 3.575 lb | | Box Dimensions (LxWxH) | 8.85 x 6.45 x 6.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
