Tokina Cinema ATX 11-20mm T2.9 Zoom

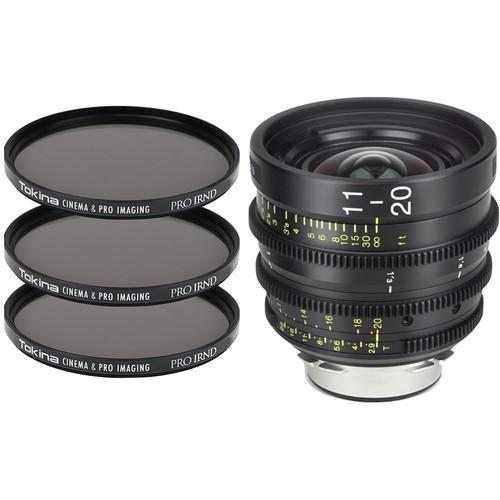

User Manual for Tokina Cinema ATX 11-20mm T2.9 Zoom Lens & 3 x PRO IRND Filter Kit

• Product category: Digital Cine Lenses Tokina
• Brand: Tokina
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Tokina Digital Cine Lenses

Product description

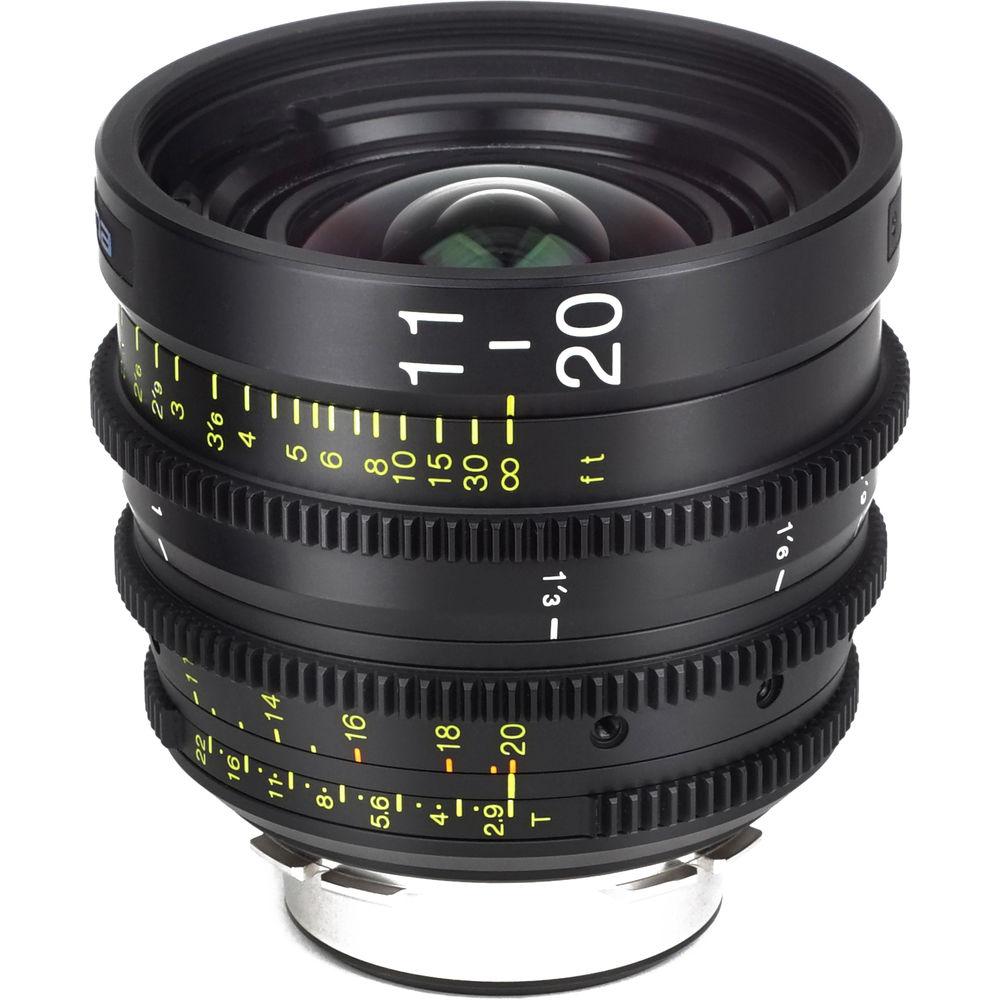

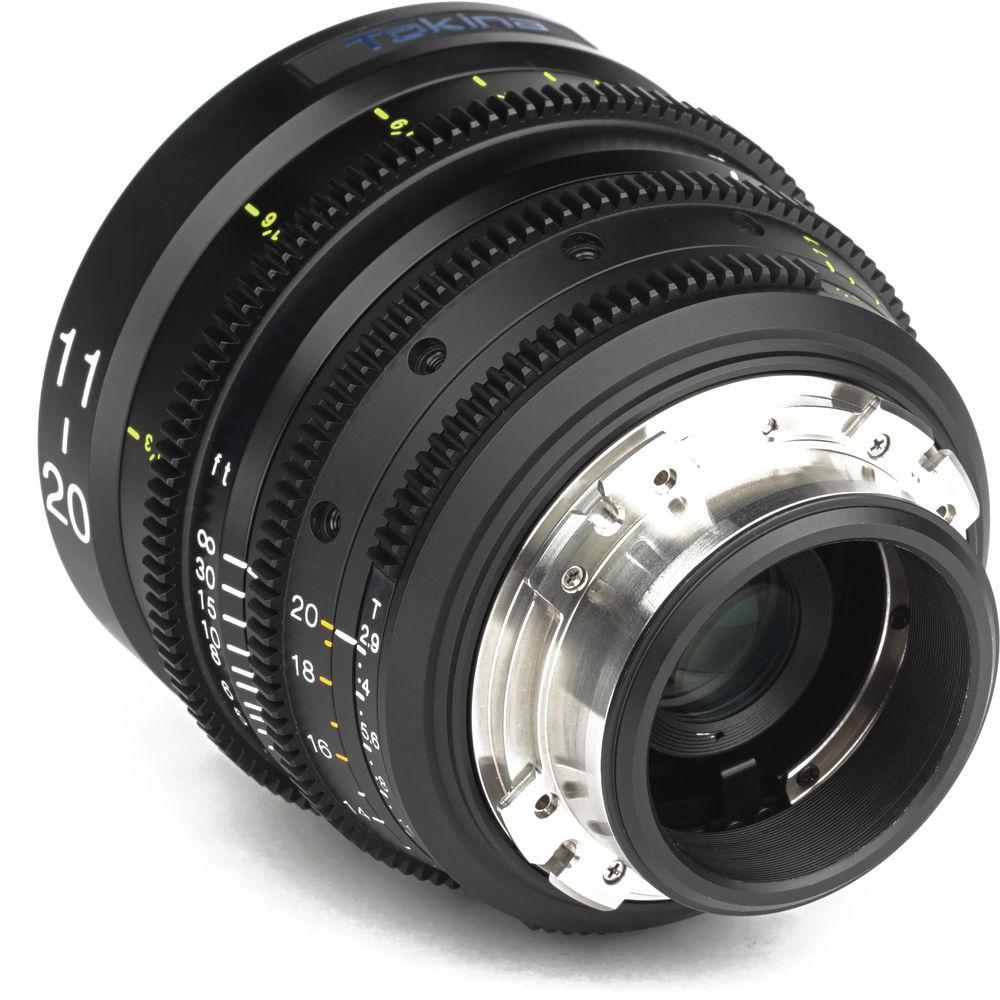

• Cinema ATX 11-20mm T2.9 Wide-Angle Zoom Lens (Sony E Mount) The Tokina Cinema ATX 11-20mm T2.9 Wide-Angle Zoom Lens (Sony E Mount) features a super-wide field of view and cine-style design elements. It covers Super 35mm image sensors and is a parfocal lens, holding focus throughout zoom moves. The Cinema ATX 11-20mm maintains a constant T2.9 aperture throughout its zoom range, eliminating the need for exposure compensation as you zoom in. Its durable metal housing withstands the rigors of cine production and incorporates 0.8 Mod lens gears for compatibility with FIZ (focus/iris/zoom) control systems.Interchangeable EF, LPL, PL, MFT, and Nikon F lens mounts are available separately for swapping with the Sony E mount, expanding the lens's compatibility with additional cameras. The Tokina Cinema ATX 11-20mm incorporates low-distortion glass, and its 9-bladed iris produces attractive bokeh in out-of-focus areas. Focus (feet), iris, and zoom settings are marked on both sides of the lens barrel.Additional cine features include a minimum focus distance of 12", 300° of focus rotation, and an industry-standard 95mm front diameter compatible with most pro-style matte boxes. An 86mm front thread provides a second filtration option especially useful for low-profile or lightweight rig configurations. Note: Lens mounts may be changed by the user but mounting by a lens service center is recommended to ensure accurate focus scales.
  Features
  • • Compact, wide-angle T2.9 zoom lens covers Super 35mm sensors
    • Sony E mount is interchangeable with separately available EF, PL, LPL, MFT, and Nikon F mounts
    • Cine-style 0.8 Mod lens gears are designed for use with FIZ (focus, iris, zoom) systems
    • A constant T2.9 aperture is maintained throughout the zoom range
    • Low distortion glass
    • 9-bladed iris for precise exposure control and attractive bokeh
    • 12" minimum focus distance enables wide but close shots
    • Parfocal lens design maintains focus while zooming
    • The 95mm front diameter fits most pro-style matte boxes and adapters
    • The all-metal, cine-style housing includes a front 86mm filter thread
    • Focus (feet), iris, and zoom marks are on both sides of the lens barrel

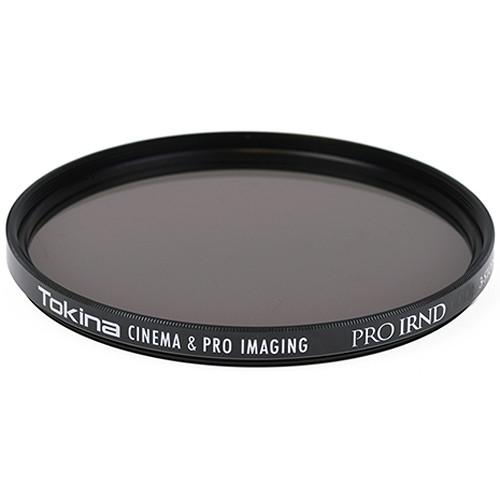

• 86mm PRO IRND 0.6 Filter (2 Stop) The Tokina 86mm PRO IRND 0.6 Filter is an ND filter with a 4x filter factor that provides a 2 stop exposure reduction. Its 0.6 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily. Neutral density filters are intended to not affect the coloration of the image and are ideal for pairing with other filters.

  The design of this filter has been optimized for use with digital sensors and to promote nearly flat attenuation of visible and infrared light. Due to imaging sensors' greater susceptibility to infrared light, compared to traditional film, color casts can occur when photographing darker subjects that require increased exposure times. To provide a high level of neutrality across the visible and infrared spectrums in order to eliminate color casts and ensure cleaner, truer blacks, each glass surface includes one layer of ACCU-ND Vapor Deposition coating.

  This Tokina 86mm PRO IRND 0.6 Filter is constructed from optical glass for clarity as well as color fidelity and features an aluminum-alloy filter ring.
  • 0.6 neutral density filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 2 stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
  • Filter does not affect coloration of the image and is ideal for use with other filters.
  • Each glass surface includes one ACCU-ND Vapor Deposition coating to attenuate infrared light, as well as visible wavelengths, to maintain color neutrality and suppress color casts due to increased exposure times.
  • Constructed from optical glass for clarity.
  • 86mm front filter threads allow for use with other filters.
  • Padded pouch included for storage and transport.
• 86mm PRO IRND 0.9 Filter (3 Stop) The Tokina 86mm PRO IRND 0.9 Filter is an ND filter with an 8x filter factor that provides a 3 stop exposure reduction. Its 0.9 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily. Neutral density filters are intended to not affect the coloration of the image and are ideal for pairing with other filters.

  The design of this filter has been optimized for use with digital sensors and to promote nearly flat attenuation of visible and infrared light. Due to imaging sensors' greater susceptibility to infrared light, compared to traditional film, color casts can occur when photographing darker subjects that require increased exposure times. To provide a high level of neutrality across the visible and infrared spectrums in order to eliminate color casts and ensure cleaner, truer blacks, each glass surface includes one layer of ACCU-ND Vapor Deposition coating.

  This Tokina 86mm PRO IRND 0.9 Filter is constructed from optical glass for clarity as well as color fidelity and features an aluminum-alloy filter ring.
  • 0.9 neutral density filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 3 stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
  • Filter does not affect coloration of the image and is ideal for use with other filters.
  • Each glass surface includes one ACCU-ND Vapor Deposition coating to attenuate infrared light, as well as visible wavelengths, to maintain color neutrality and suppress color casts due to increased exposure times.
  • Constructed from optical glass for clarity.
  • 86mm front filter threads allow for use with other filters.
  • Padded pouch included for storage and transport.
• 86mm PRO IRND 1.2 Filter (4 Stop) The Tokina 86mm PRO IRND 1.2 Filter is an ND filter with a 16x filter factor that provides a 4 stop exposure reduction. Its 1.2 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily. Neutral density filters are intended to not affect the coloration of the image and are ideal for pairing with other filters.

  The design of this filter has been optimized for use with digital sensors and to promote nearly flat attenuation of visible and infrared light. Due to imaging sensors' greater susceptibility to infrared light, compared to traditional film, color casts can occur when photographing darker subjects that require increased exposure times. To provide a high level of neutrality across the visible and infrared spectrums in order to eliminate color casts and ensure cleaner, truer blacks, each glass surface includes one layer of ACCU-ND Vapor Deposition coating.

  This Tokina 86mm PRO IRND 1.2 Filter is constructed from optical glass for clarity as well as color fidelity and features an aluminum-alloy filter ring.
  • 1.2 neutral density filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
  • Providing a 4 stop exposure reduction, this filter allows you to control depth of field and convey movement more easily.
  • Filter does not affect coloration of the image and is ideal for use with other filters.
  • Each glass surface includes one ACCU-ND Vapor Deposition coating to attenuate infrared light, as well as visible wavelengths, to maintain color neutrality and suppress color casts due to increased exposure times.
  • Constructed from optical glass for clarity.
  • 86mm front filter threads allow for use with other filters.
  • Padded pouch included for storage and transport.

• Limited 1-Year Warranty

• Filter Pouch

• Limited 1-Year Warranty

• Filter Pouch

• Limited 1-Year Warranty

• Filter Pouch

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Cinema ATX 11-20mm T2.9 Wide-Angle Zoom Lens (Sony E Mount)

  Focal Length	11 to 20mm
  Lens Mount	Sony E
  Format	Super35/APS-C
  Image Circle	30.0 mm
  Maximum T-Stop	T2.9
  Maximum F-Stop	f/2.8
  Minimum T-Stop	T22
  Minimum F-Stop	f/22
  Minimum Focus Distance from Image Plane	0.98' / 0.3 m
  Optical Design	14 Elements in 12 Groups
  Iris Blades	9
  Gear MOD & Pitch	Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch Zoom: 0.8 MOD / 32 Pitch
  Front Diameter	95 mm
  Filter Thread	86 mm
  Focus Scales	Imperial
  Focus Rotation	300°
  Zoom Ratio	1.82x
  Electronic Communication	No
  Maximum Magnification Ratio	1:9.65
  Length	3.92" / 99.5 mm Overall length.
  Weight	2.4 lb / 1.1 kg

  Box Dimensions (LxWxH)	8.85 x 6.45 x 6.4"

• 86mm PRO IRND 0.6 Filter (2 Stop)

  Filter Type	Solid ND Combination
  Combination Type	IR Attenuation
  Density	0.6 (2 Stops)
  Circular Size	86 mm
  Front Accessory Thread / Bayonet	86 mm
  Filter Material	Glass

  Box Dimensions (LxWxH)	6.6 x 6.0 x 1.6"

• 86mm PRO IRND 0.9 Filter (3 Stop)

  Filter Type	Solid ND Combination
  Combination Type	IR Attenuation
  Density	0.9 (3 Stops)
  Circular Size	86 mm
  Front Accessory Thread / Bayonet	86 mm
  Filter Material	Glass

  Box Dimensions (LxWxH)	7.0 x 6.5 x 2.0"

• 86mm PRO IRND 1.2 Filter (4 Stop)

  Filter Type	Solid ND Combination
  Combination Type	IR Attenuation
  Density	1.2 (4 Stops)
  Circular Size	86 mm
  Front Accessory Thread / Bayonet	86 mm
  Filter Material	Glass

  Box Dimensions (LxWxH)	6.75 x 6.75 x 1.75"
