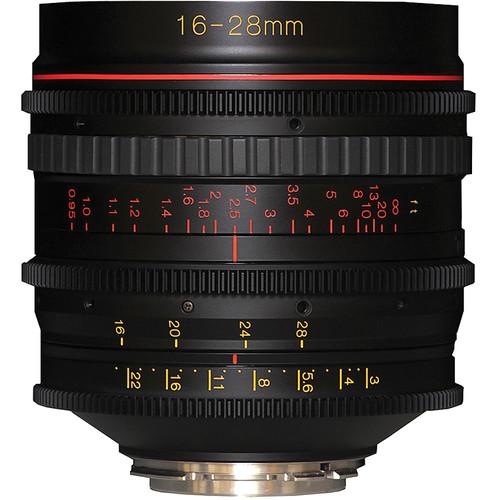

User Manual for Tokina Cinema ATX 16-28mm T3 Wide-Angle Zoom Lens for Canon EF Click to enlarge the picture
Contents of the user manual for the Tokina Cinema ATX 16-28mm T3 Wide-Angle
- Product category: Digital Cine Lenses Tokina
- Brand: Tokina
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tokina Digital Cine Lenses
|
User manual for the Tokina Cinema ATX 16-28mm T3 Wide-Angle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tokina product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tokina user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tokina product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More The Tokina Cinema ATX 16-28mm T3.0 (Canon EF) is a version of Tokina's wide-angle DSLR zoom lens, re-engineered for video use and capable of producing images suitable for 4K capture. It covers full-frame 35mm image sensors and is a parfocal lens, enabling you to maintain focus throughout a zoom move. The Cinema ATX 16-28mm can open up to a T3.0 aperture throughout its zoom range, eliminating the need for exposure compensation on the tight end of the zoom. The lens design also reduces the breathing and image shifting sometimes encountered while zooming and focusing. The Tokina Cinema ATX 16-28mm employs aspherical super-low dispersion elements for optimal color correction and minimal distortion. Its 9-bladed iris diaphragm produces attractive bokeh in out-of-focus areas. Cinema ATX 16-28mm features include focus, iris, and zoom markings on both sides of the lens barrel, a de-clicked aperture ring for smooth iris pulls, an all-metal housing, and standard gears for use with a follow focus system. A minimum focus distance of just under 1' and an industry-standard 114mm front diameter fitting most matte boxes are additional cine features. - Wide-angle T3 manual-focus zoom lens
- Parfocal lens design maintains focus while zooming
- Covers full-frame 35mm sensors, images are suitable for 4K capture
- Reduced breathing and image shifting while zooming or focusing
- T3.0 aperture can be maintained throughout the zoom range
- Aspherical, SLD (super-low dispersion) glass elements optimize color correction and reduce distortion
- De-clicked 9-bladed iris for precise exposure control and attractive bokeh
- 114mm front diameter is compatible with most matte boxes
- 11" minimum focus distance allows for wide but close shots
- Cine-style lens housing is designed for use with follow focus systems
- Focus, iris, and zoom markings are on both sides of the lens barrel
UPC: 024066059031 In the Box Tokina Cinema ATX 16-28mm T3 Wide-Angle Zoom Lens for Canon EF Focus/Zoom Pin Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tokina Cinema ATX 16-28mm T3 Wide-Angle Zoom Lens for Canon EF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTokina Cinema ATX 16-28mm T3.0 Specs | Focal Length | 16 to 28mm | | Lens Mount | Canon EF | | Format | Full Frame | | Maximum T-Stop | T3 | | Maximum F-Stop | f/2.8 | | Minimum T-Stop | T22 | | Minimum F-Stop | f/22 | | Minimum Focus Distance from Image Plane | 11" / 28 cm | | Optical Design | 15 Elements in 13 Groups | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch | | Front Diameter | 114 mm | | Filter Thread | 112 mm | | Zoom Ratio | 1.75x | | Maximum Magnification Ratio | 1:5.26 | | Dimensions (W x H) | 4.8 x 4.8" / 121.9 x 121.9 mm | | Length | 5.5" / 140.5 mm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 8.1 x 7.4 x 7.1" |
