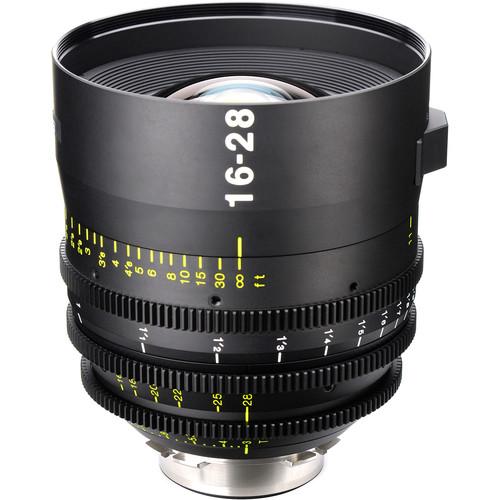

Product description Cinema Lens Care and Maintenance Read More The Tokina Cinema Vista 16-28mm II T3.0 with a MFT mount and focus scales marked in feet is a wide-angle zoom lens that covers Super 35-sized sensors providing sharp images and even illumination from edge to edge. Featuring a parfocal design and a T3.0 aperture throughout its zoom range, the lens holds focus throughout the zoom range and does not ramp exposure as you get to the extremes of the zoom range. The lens design also reduces the breathing and image shift sometimes encountered while zooming and focusing. It uses aspherical elements and super-low dispersion glass in its optical design for optimal color correction and minimal distortion.
Sharing features with the Tokina Cinema Vista primes helps to provide a consistent look when swapping between lenses. The 9-bladed iris is shared among the lenses and produces attractive bokeh in out-of-focus areas, with naturalistic-looking out of focus highlights. The focus, iris, and zoom control rings have cine-style 0.8 Mod gears, and the focus ring features approximately 300 degrees of rotation, which matches the focus rotation on the Cinema Vista primes. The 16 to 28 zoom features a 114mm front diameter that is also in common with the Cinema Vista primes making for fewer adjustments to accessories when swapping lenses. In addition to a MFT mount, the lens also has a built-in 1/4"-20 support foot that helps support the lens with the aid of an optional 1/4"-20 rod-mounted lens support (not included). - Wide-angle T3 manual-focus zoom lens
- Parfocal lens design maintains focus while zooming
- The MFT mount physically blocks the image circle coverage from full-frame to Super 35mm sized-sensors, but doesn't otherwise affect the optical operation of the lens.
- Reduced breathing and image shifting while zooming or focusing
- T3.0 aperture does not ramp during zoom
- Aspherical, SLD (super-low dispersion) glass elements optimize color correction and reduce distortion
- Clickless 9-bladed iris for precise exposure control and attractive bokeh
- 114mm front diameter is compatible with most matte boxes
- Cine-style lens housing is designed for use with follow focus systems
In the Box Tokina Cinema Vista 16-28mm II T3 Wide-Angle Zoom Lens (MFT Mount, Focus Scale in Feet) Front Lens Cap Rear Lens Cap Zoom Stick Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tokina Cinema Vista 16-28mm II T3 Wide-Angle Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTokina Cinema Vista 16-28mm T3.0 Mark II Specs | Image Sensor Size Supported | Full-frame 35mm | | Lens Mount | MFT Mount | | Focal Length Range | 16-28 mm | | Aperture Range | T3-22 (f/2.8-22) | | Zoom Ratio | 1.75:1 | | Optical Construction | 13 groups
15 elements | | Minimum Focus Distance | 11" / 28 cm | | Macro Magnification Ratio | Maximum: 1:5.26 | | Iris Blades | 9 | | Filter Thread | 112 mm | | Front Lens Diameter | 114 mm | | Gear Mod | 0.8 | | Length | 6.46" / 16.4 cm (overall)
6.29" / 15.9 cm (from front mount surface) | | Weight | 4.03 lb / 1.83 kg | | | | Package Weight | 5.59 lb | | Box Dimensions (LxWxH) | 9.3 x 8.05 x 7.15" |
