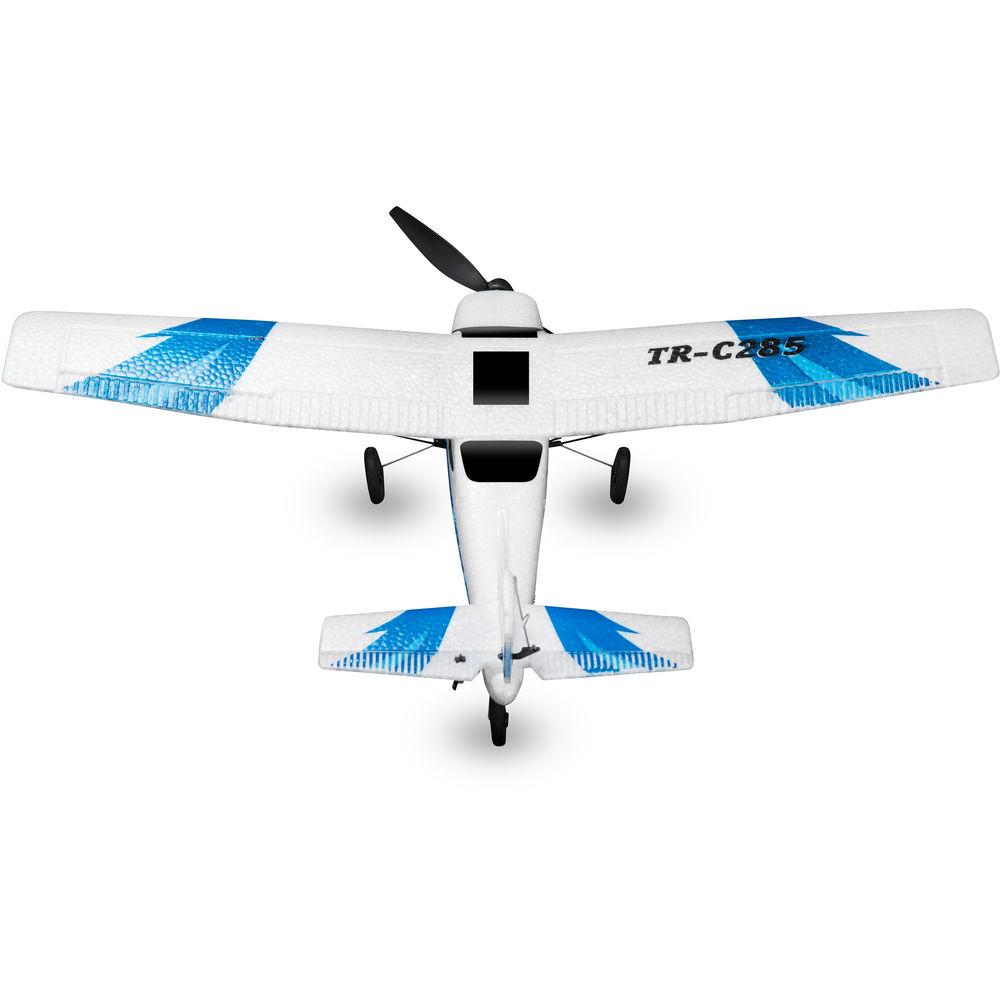

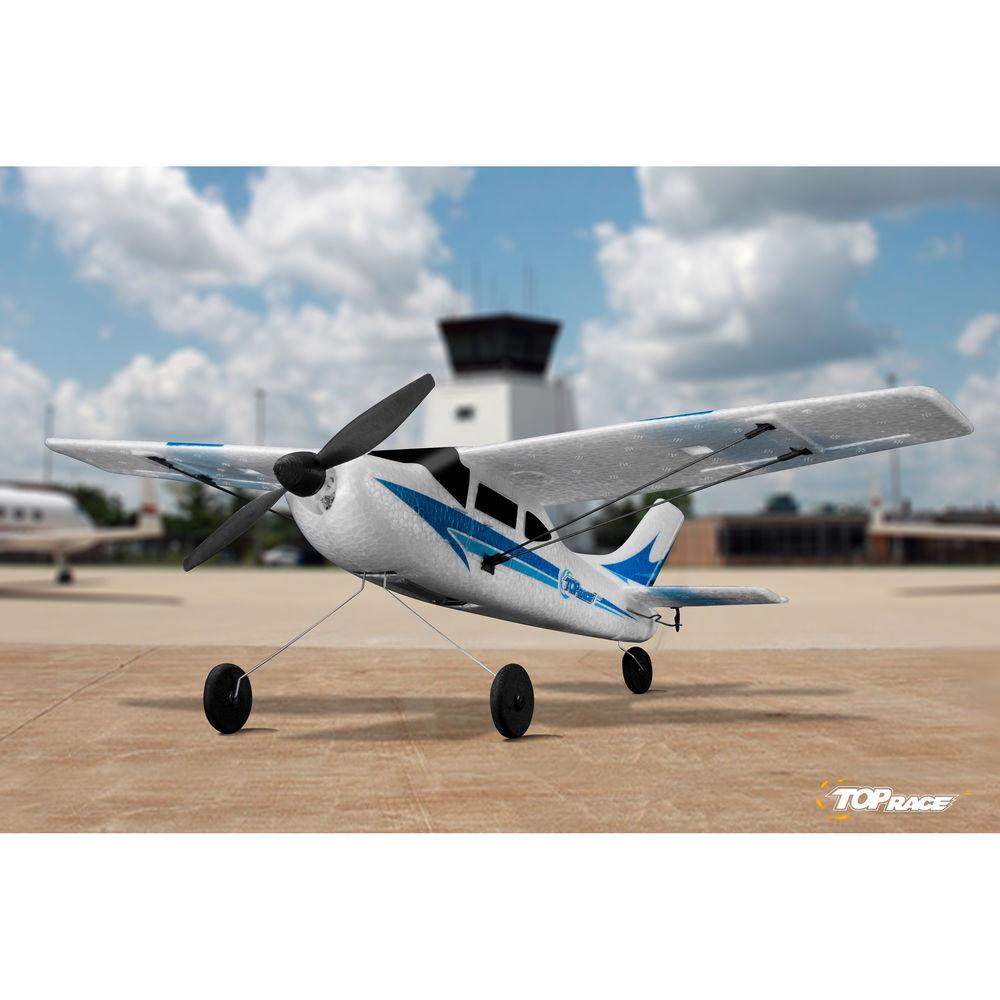

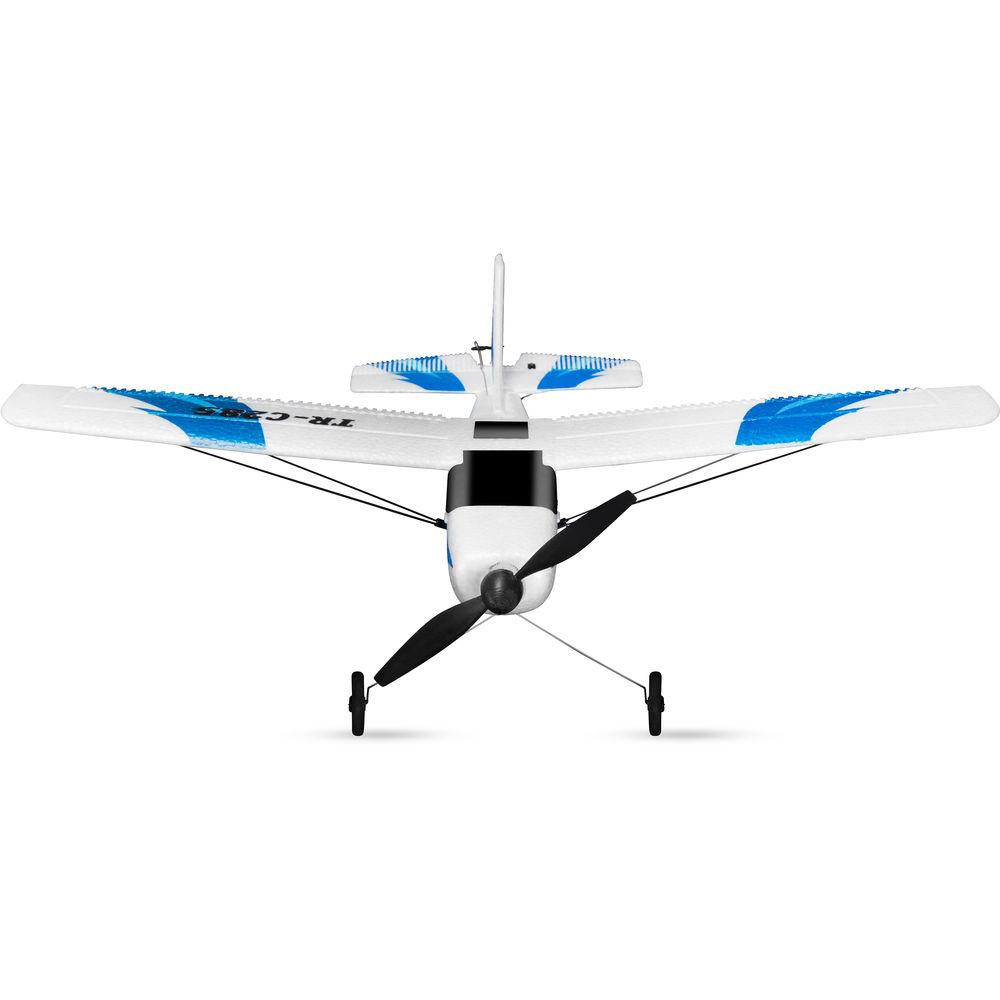

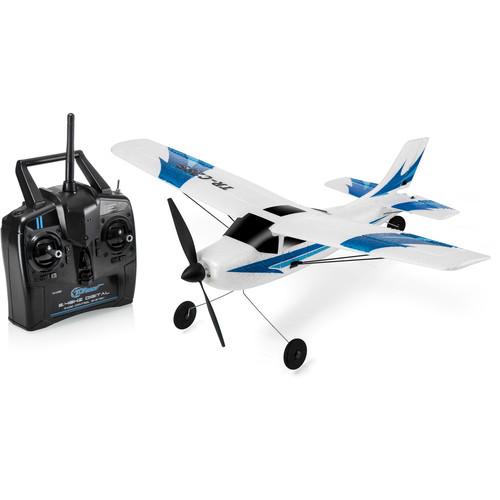

User Manual for Top Race 3-Channel RTF Remote Control Airplane with Built-In 6-Axis Gyro System Click to enlarge the picture
Contents of the user manual for the Top Race 3-Channel RTF Remote Control
- Product category: See All Drones Top Race
- Brand: Top Race
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Top Race See All Drones
 |
User manual for the Top Race 3-Channel RTF Remote Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Top Race product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Top Race user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Top Race product will considerably shorten its lifespan!
|

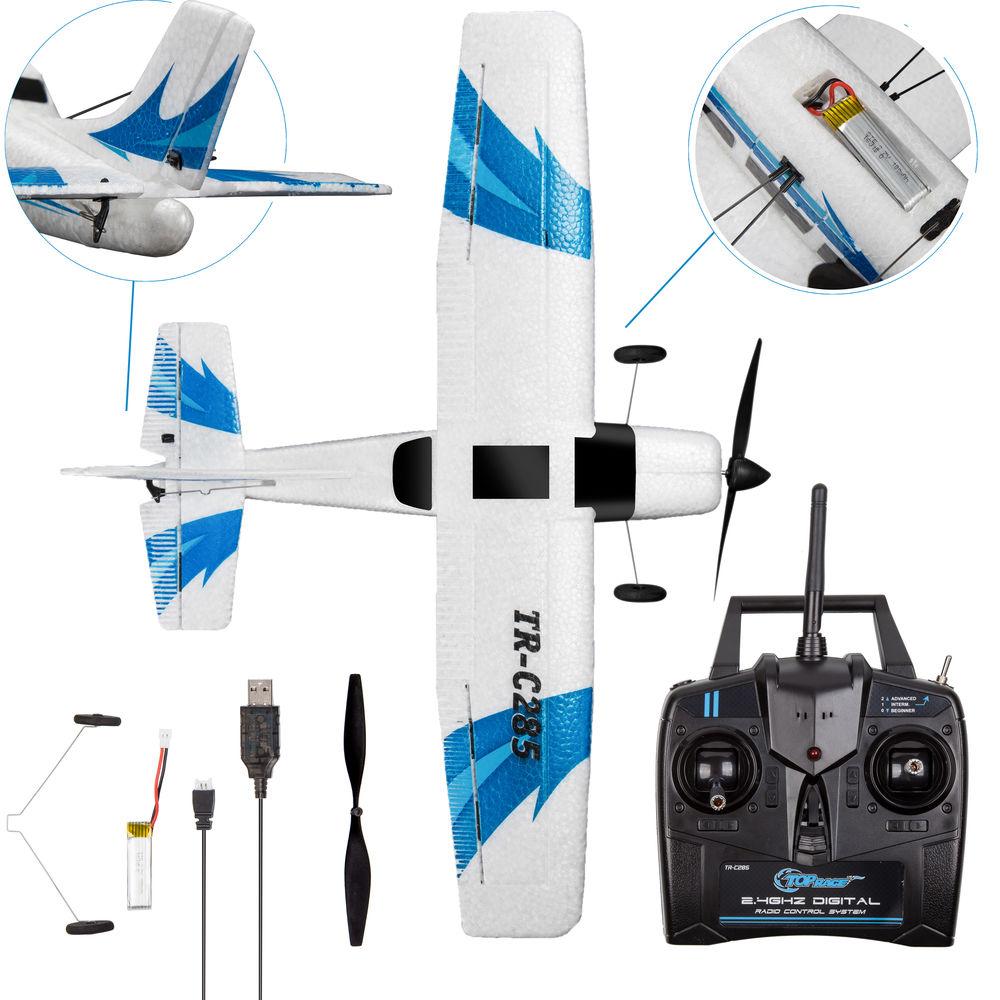

Product description Aerial Photography and Drone Glossary Read More zsdrfyrd The 3-Channel RTF Remote Control Airplane from Top Race is a fully-assembled, ready-to-fly airplane designed for training new and intermediate pilots. It operates on three channels for controlling the elevator, rudder, and throttle. The airplane features a built-in 6-axis gyro system and a variable speed control knob for controlling the throttle. It can be controlled via the included 2.4 GHz remote controller, which has a maximum range of up to 320' depending on conditions and location.The controller features a 3-mode digital radio control system including Beginner, Mid, and Expert modes. In the beginner mode, self-stabilization of the gyro system helps flying in any weather condition, even on windy days. The airplane is made of durable EPP shock-resistant material and can be powered via a built-in, rechargeable, 3.7V 180mAh LiPo battery. It offers a flight time of up to 15 minutes with about 90 minutes of charging time. UPC: 627304172518 In the Box Top Race 3-Channel RTF Remote Control Airplane with Built-In 6-Axis Gyro System 2.4 GHz Remote Controller 3.7V 180mAh LiPo Battery Charging Cable Spare Propellers Spare Wheels Limited 60-Day Warranty Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Top Race 3-Channel RTF Remote Control Airplane with Built-In 6-Axis Gyro System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

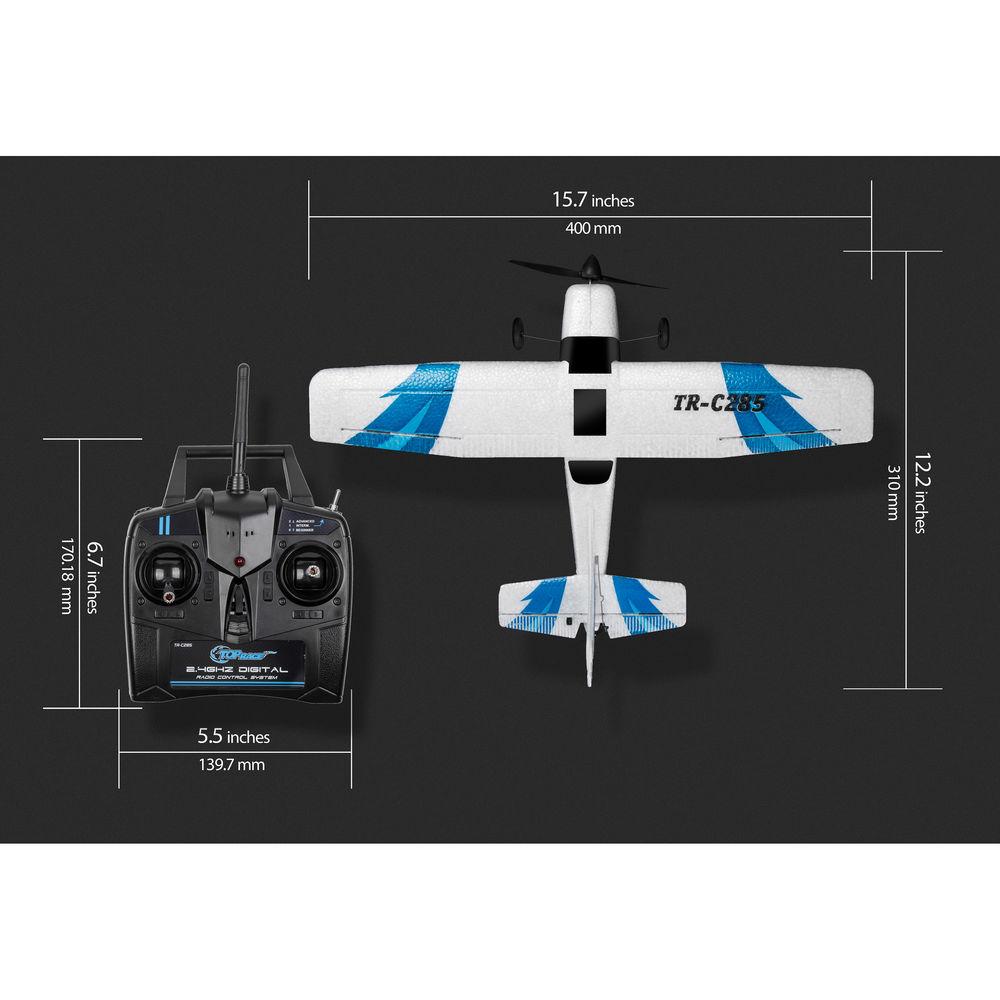

Technical parametersTop Race TR-C285 Specs | | | Maximum Flight Time | 15 Minutes | | GNSS Support | None | | Vision System | None | | | | Operating Frequency | 2.4 GHz | | Maximum Operating Distance | 320' / 97.54 m at 2.4 G | | Battery Type | 4 x AA Not included | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Capacity | 180 mAh / .666 Wh | | Battery Configuration | 1 S / 3.7 V | | | | Model | 8mm Coreless | | Type | Brushed | | | | Overall Dimensions | 15.7 x 12.2 x 4.1" / 39.9 x 31.0 x 10.4 cm | | Weight | 1 oz / 28 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 13.6 x 13.5 x 6.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
