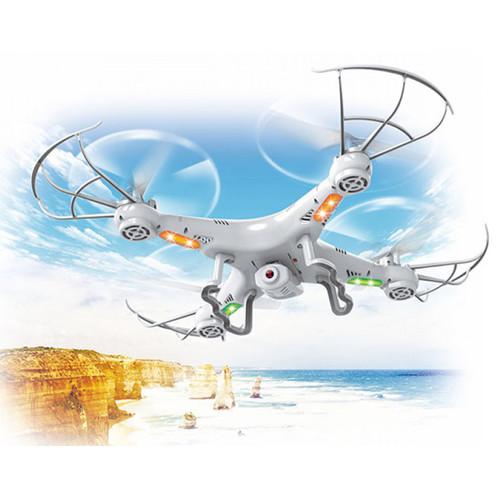

User Manual for Top Race TR-Q511 QuadCam Drone with 0.3MP Camera Click to enlarge the picture
Contents of the user manual for the Top Race TR-Q511 QuadCam Drone with
- Product category: See All Drones Top Race
- Brand: Top Race
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Top Race See All Drones
 |
User manual for the Top Race TR-Q511 QuadCam Drone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Top Race product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Top Race user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Top Race product will considerably shorten its lifespan!
|
Product description Aerial Photography and Drone Glossary Read More bcfyywqqxqvsfaurzucduzwzzv - Top Race TR-Q511 4-Channel Quad Copter Drone

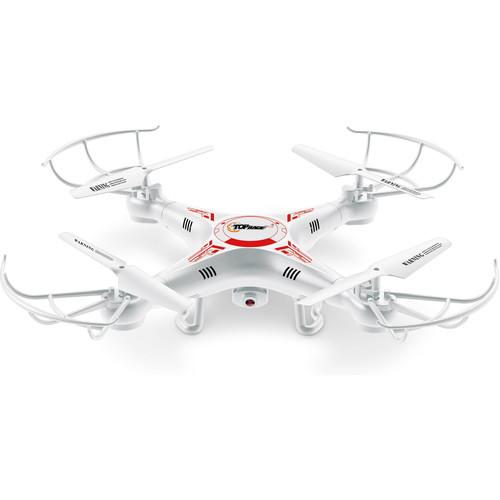

The TR-Q511 QuadCam Drone from Top Race is a precision flying drone with integrated mechanics and electronics controlled with high-frequency transmission. It comes with a 0.3MP camera that records videos in 640 x 480 resolution at up to 30 fps. The quadcopter can operate in Headless mode and One Key Return mode. In Headless mode, the copter flies according to the transmitter control only, regardless of which way the copter is facing. For example, if the front of the copter is facing to the side in headless mode and you pull the control lever black, the copter will fly toward you. This is helpful in retrieving the copter if it is beyond your sight. In One Key Return mode, the copter will return home at the press of a button. Note: Minimum age limit for use of this drone is 14 years. - 360° 3D flight functionality
- Four-rotor structure for better maneuverability and speed during flight
- Equipped with a 6-axis gyroscope, allowing you to initiate flight by throwing it into the air
- Wind-resistant design allows for outdoor flight
- Simple, modular design makes changing parts easy
- Once the battery is drained to a low level, the power will be shut off from the rotors
- If the rotor blades ever become jammed, the control system will automatically shut off power to the rotors
UPC: 627304171535 In the Box Top Race TR-Q511 QuadCam Drone with 0.3MP Camera QuadCam Drone 650mAh LiPo Rechargeable Battery 0.3MP Camera Set of Spare Blades Set of Blades Protectors USB Charger microSD Card Reader 2GB microSD Card RC Transmitter with Screen Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 bcfyywqqxqvsfaurzucduzwzzv Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 bcfyywqqxqvsfaurzucduzwzzv Quick start Guide PDF 13.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Top Race TR-Q511 QuadCam Drone with 0.3MP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTop Race TR-Q511 Specs | | | Flight Time | 5.5 to 6.5 minutes | | Operating Distance | 300'(91 m) | | Operating Frequency | 2.4 GHz | | Battery | 4 x AA batteries required for the transmitter (not included) | | Dimensions | 9.0 x 9.0 x 1.5" (23 x 23 x 3.8 cm), without protectors
12.0 x 12.0 x 1.5" (30.5 x 30.5 x 3.8 cm), with protectors | | Transmitter Dimensions (WxHxD) | 6.0 x 7.0 x 1.5" (15.2 x 17.8 x 3.8 cm) | | Weight | Drone without Camera: 3.2 oz (90.7 g)
Drone with Camera: 4.0 oz (113.4 g) | | Transmitter Weight (Approximate) | 6.5 oz (184.3 g) | | | | Resolution | 640 x 480 | | Frame Rate | Between 15 to 30 fps, depending on the light | | Formats Supported | Picture: JPG
Video: AVI | | Size | Shot Size: 8 x 8 mm | | Focus Distance | 3.3' (1 m) | | Angle | 75° | | Recording Media | microSD | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 16.3 x 11.7 x 3.8" |
