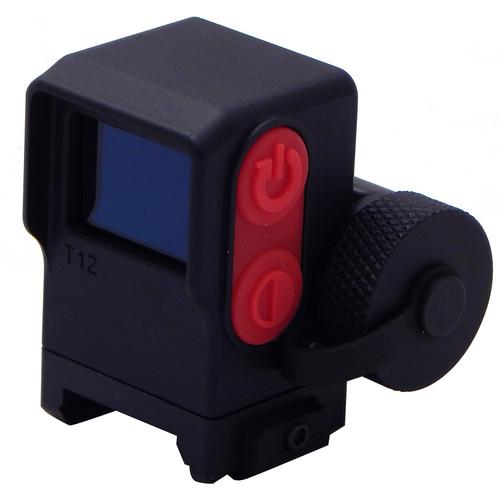

User Manual for Torrey Pines Logic T12-N Thermal Imaging System Click to enlarge the picture
Contents of the user manual for the Torrey Pines Logic T12-N Thermal Imaging
- Product category: Thermal Imagers Torrey Pines Logic
- Brand: Torrey Pines Logic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Torrey Pines Logic Thermal Imagers
|
User manual for the Torrey Pines Logic T12-N Thermal Imaging contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Torrey Pines Logic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Torrey Pines Logic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Torrey Pines Logic product will considerably shorten its lifespan!
|
Product description Harness the benefits of thermal imaging with the ultra-compact and lightweight Torrey Pines Logic T12-N Thermal Imaging System. The device features a FLIR Lepton sensor that enables you to see thermal signatures of people, wildlife, hot wires and pipes, running engines, and other sources of heat that emit in the range of 8-14µm. In addition, the unique capabilities of thermal imaging provide you with the ability to see during the day or night, and through smoke, dust, foliage, and fog. To allow you to perform a variety of activities ranging from search and rescue to night hunting, this device can be used in handheld operation as well as be mounted on a 1/4"-20 tripod or Picatinny rails using the included adapter. It is capable of delivering color images, white hot, black hot, and night vision green palettes for thermal profiles with a refresh rate of 9 Hz. Despite its small size, the optic has a handful of convenient and power-saving features, uses only one CR-123 battery, and offers 8 hours of runtime. The polymer housing is lightweight and waterproof. - Imaging Performance
-
- 80x60 FLIR Lepton sensor
- 8-14μm spectral response
- 9 Hz refresh rate
- 25° field of view
- Non-shuttered sensor
- Use and Handling
-
- White hot / color / black hot / NV green
- Non-uniformity correction calibration
- On-screen sight overlay can be toggled on and off
- Auto-power save mode
- Temperature read out
- Construction Details
-
- Mounting options:
- Included handle
- 1/4"-20 tripod
- Picatinny mount
UPC: 609408544996 In the Box Torrey Pines Logic T12-N Thermal Imaging System - Handle with Picatinny Rail
- Picatinny Mount for T12 Thermal Imagers
- CR-123 Lithium Battery
- Allen Wrench
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Torrey Pines Logic T12-N Thermal Imaging System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTorrey Pines Logic T12 Specs | Array Configuration | 80x60 FLIR Lepton sensor | | Sensitivity | <50 mK | | Spectral Response | 8-14 μm | | Field of View | 25° | | Refresh Rate | 9 Hz | | Start-Up Time | 2 seconds | | Battery / Runtime | 1 x CR-123 battery / 8 h | | Weatherproofing | No | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | Unit: 2.0 x 1.8 x 1.5 / 50 x 45 x 39mm
Mount: 1.2 x 1 x 0.4" / 29 x 24 x 10 mm | | Weight | Unit: 1.74 oz / 50 g
Mount: 0.32 oz / 9 g | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 5.6 x 4.4 x 2.1" |
