Torrey Pines Logic T15 Thermal Imager

Search your instruction manual in PDF to download

User Manual for Torrey Pines Logic T15 Thermal Imager

Click to enlarge the picture
Torrey Pines Logic T15 Thermal Imager Contents of the user manual for the Torrey Pines Logic T15 Thermal Imager
  • Product category: Thermal Imagers Torrey Pines Logic
  • Brand: Torrey Pines Logic
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Torrey Pines Logic Thermal Imagers

Torrey Pines Logic T15 Thermal Imager Torrey Pines Logic T15 Thermal Imager
User manual for the Torrey Pines Logic T15 Thermal Imager contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Torrey Pines Logic product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Torrey Pines Logic user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Torrey Pines Logic product will considerably shorten its lifespan!



Product description

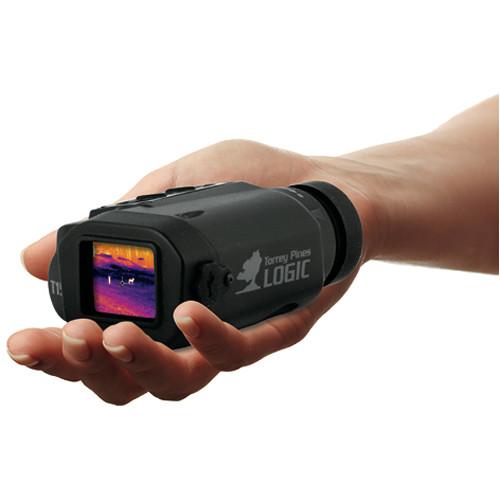

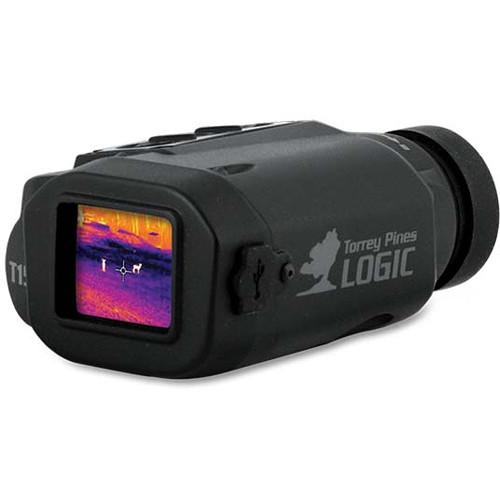

Suited to surveillance, search operations, firefighting and detection, and other applications, the Torrey Pines Logic T15 Thermal Imager is capable of human identification at a maximum range of 119 yards and human detection at a maximum range of 477 yards, and records clear video and still images thanks to onboard image enhancement. Rotate the objective lens bezel for 3-8x optical zoom with auto focus adjustment. The FLIR Lepton 3 sensor detects the thermal signatures of people, wildlife, hot wires and pipes, running engines, and other sources of heat that emit in the range of 8-14 microns. The T15's 1.5" OLED display is capable of delivering color images, white hot, black hot, and night vision green palettes for thermal profiles with a refresh rate of 9 Hz. It will run for up to 8 hours on a fresh set of two 3 VDC CR123 batteries.
    Imaging Performance
    • 160x120 FLIR Lepton 3 sensor
    • 8-14 micron spectral response
    • 1.5" OLED display
    • White hot, color, black hot, or NV green display
    • 9 Hz refresh rate
    Use and Handling
    • 3-8x zoom magnification with auto focus adjustment
    • Human detection range: 177 yards at 3x zoom, 477 yards at 8x
    • Human recognition range: 89 yards at 3x zoom, 238 yards at 8x
    • Human identification range: 44 yards at 3x zoom, 119 yards at 8x
    • 18.7-7° angular field of view
    • Records video and photos
    • USB port
    • Shutter with automatic NUC
    • Auto power save mode
    Construction Details
    • Picatinny/Weaver and tripod mounting
    • Runs on two CR123 3 VDC batteries, runtime 8 hours
    • Measures 4.3 x 2.8 x 2.5", weighs 10.9 ounces with mount
UPC: 609408545108 In the Box Torrey Pines Logic T15 Thermal Imager
  • Picatinny Mount
  • Hand Grip
  • Hex Key
  • 2 x CR123 Batteries
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Torrey Pines Logic T15 Thermal Imager in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Torrey Pines Logic T15 Specs

    Array Configuration 160x120 FLIR Lepton 3 sensor
    Spectral Response 8-14 microns
    Detection Range Human Detection: 177 yd / 162 m at 3x, 477 yd / 436 m at 8x
    Human Recognition: 89 yd / 81 m at 3x, 238 yd / 218 m at 8x
    Human Identification: 44 yd / 40 m at 3x, 119 yd / 109 m at 8x
    Minimum Focus Distance 6.1' / 2 m
    Field of View 18.7-7°
    Refresh Rate 9 Hz
    Battery / Runtime 2 x CR123 3 VDC batteries / 8 h
    Operating Temperature 14 to 113°F / -10 to 45°C
    Dimensions 4.3 x 2.8 x 2.5 / 11.0 x 7.1 x 6.3 cm
    Weight 10.9 oz / 310 g
