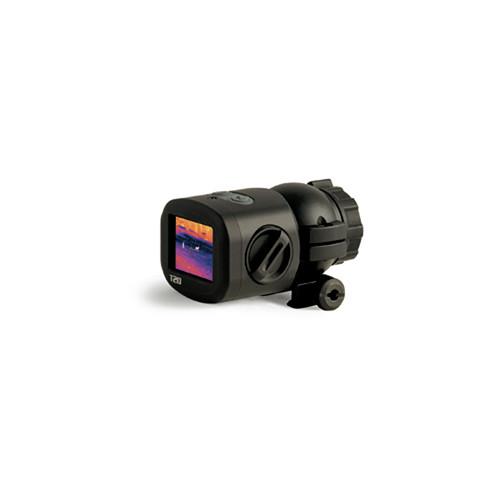

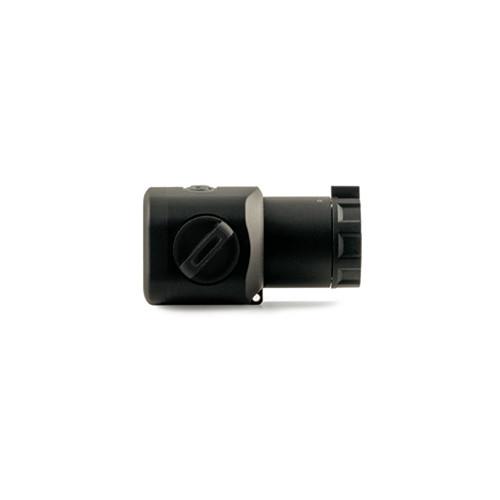

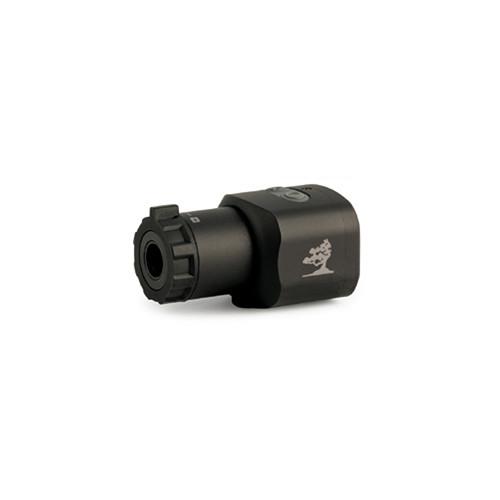

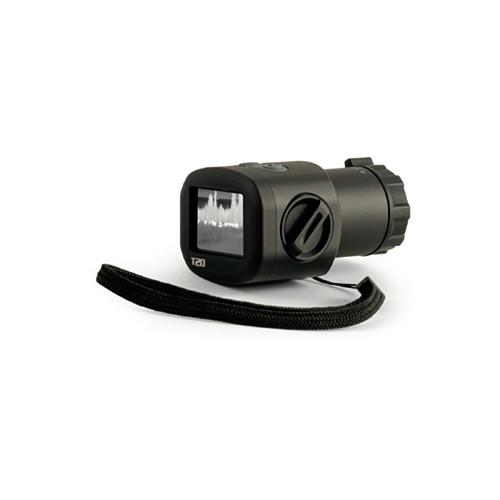

Product description Harness the benefits of thermal imaging with the ultra-compact and lightweight Torrey Pines Logic T20 Thermal Imager. Rotate the objective lens bezel for 2-5x optical zoom, offering a maximum detection range of 164 yards. The FLIR Lepton sensor detects thermal signatures of people, wildlife, hot wires and pipes, running engines, and other sources of heat that emit in the range of 8-14 microns. The T20's 1.3" OLED display is capable of displaying images in color, white hot, black hot, and night vision green palettes for thermal profiles with a refresh rate of 30 Hz. It will run for up to 4 hours on a fresh CR2 battery. - Imaging Performance
-
- 80x60 FLIR Lepton sensor
- 8-14 micron spectral response
- 1.3" OLED display
- White hot, color, black hot, or NV green display
- 30 Hz refresh rate
- Use and Handling
-
- 2-5x zoom magnification
- Detection range: 82 yards at 3x, 164 yards at 5.5x
- 25-10° angular field of view
- Shutter with automatic NUC
- Auto power save mode
- Temperature read out
- Construction Details
-
- Mounts with user-provided 30mm riflescope rings
- Runs on one CR2 battery for up to 4 hours
- Measures 2.8 x 1.8 x 1.5" and weighs 4.7 ounces (plus battery)
UPC: 609408545153 In the Box Torrey Pines Logic T20 Thermal Imager - Wrist Strap
- 2 x CR2 Batteries
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Torrey Pines Logic T20 Thermal Imager in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTorrey Pines Logic T20 Specs | Array Configuration | 80x60 FLIR Lepton sensor | | Spectral Response | 8-14 microns | | Minimum Focus Distance | 3.3' / 1 m | | Field of View | 25-10° | | Refresh Rate | 30 Hz | | Battery / Runtime | 1 x CR2 battery / 4 h | | Operating Temperature | 14 to 113°F / -10 to 45°C | | Dimensions | 2.8 x 1.8 x 1.5 / 7.0 x 4.6 x 3.9 cm | | Weight | 4.7 oz / 133 g | | | | Package Weight | 0.435 lb | | Box Dimensions (LxWxH) | 4.95 x 2.05 x 2.05" |
