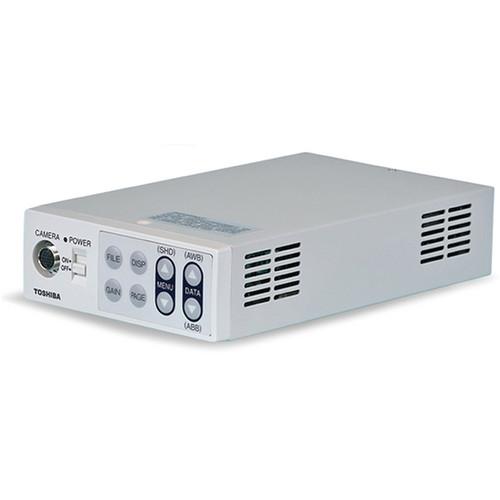

Product description The Toshiba IK-HD1C is an interface box for connecting a Toshiba IK-HD1H 3CCD HD camera head to an HD video monitor. The box provides both analog and digital HD video connections. Analog HD connectors are in the form of three BNC terminals (Y/G-Pa/B-Pr/R), while a single HD-SDI connector provides the interface to a digital HD monitor.
Most camera controls are accessed from the front of the unit. These include a power On/Off switch, an AWB and gain switch, buttons for menu selection and a button to change scene files and display modes. The rear of the unit adds a 59.94i to 60i format switch as well as a key lock On and Off switch. Also located on the back of the unit are two sync ports, a wired remote control terminal and a 12 VDC power input. Note: Camera connecting cable (EXCHD) and power supply (12 VDC) sold separately UPC: 032017850408 In the Box Toshiba IK-HD1C Camera Control Unit for IK-HD1H 1-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toshiba IK-HD1C Camera Control Unit for IK-HD1H in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToshiba IK-HD1C Specs | Connectors | • Camera Video Input: multi-pin terminal x1
• Analog HD Video Output: BNC x3 (Y/G-Pa/B-Pr/R)
• Digital HD Video Output: HD-SDI x1 (BNC)
• External Sync: BNC x1
• Sync Out: BNC x1
• Remote Control Terminal: 9-pin, RS-232C connector x1 | | Power Requirements | 12 VDC | | Power Consumption | 10.3W | | Operating Temperature | 32 - 104°F (0 - 40°C) | | Dimensions (WxHxD) | 4.3 x 1.6 x 7.3" (110 x 40 x 186mm) | | Weight | 1.6 lbs (730 g) | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 10.0 x 5.9 x 4.4" |
