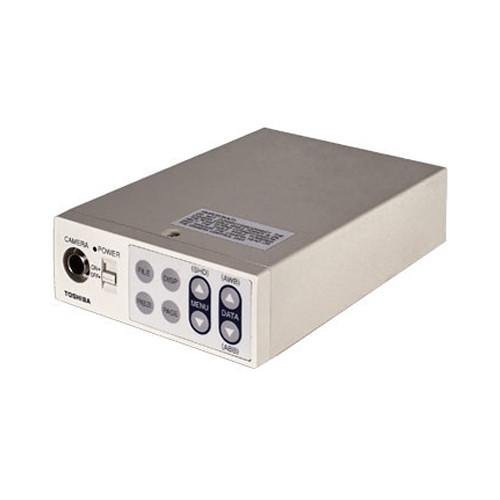

Product description The Toshiba IK-HD1D Camera Control Unit (CCU) is an interface box for connecting a Toshiba IK-HD1H 3CCD HD camera head to an HD video monitor. Nearly identical to the IK-HD1E, the 'D' model also provides analog and digital HD video connections, with the main difference being the substitution of a DVI-D output for HD-SDI. This means you can use lower-cost consumer HD monitors with DVI/HDMI connections as opposed to the more expensive HD-SDI displays. The remote interface is also different, an 8-pin mini-DIN versus a 9-pin DSUb, while the component/RGB connectors--in the form of three BNC terminals (Y/Pb/Pr)--remain the same.

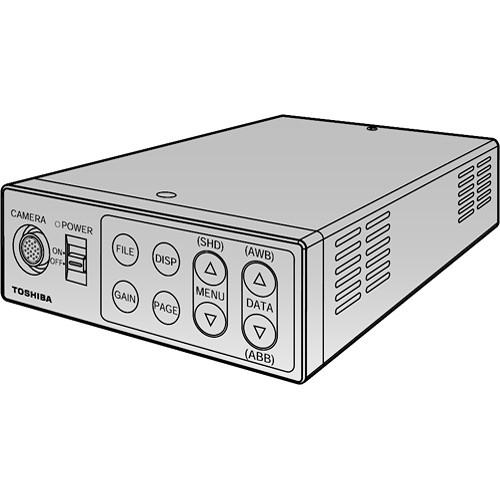

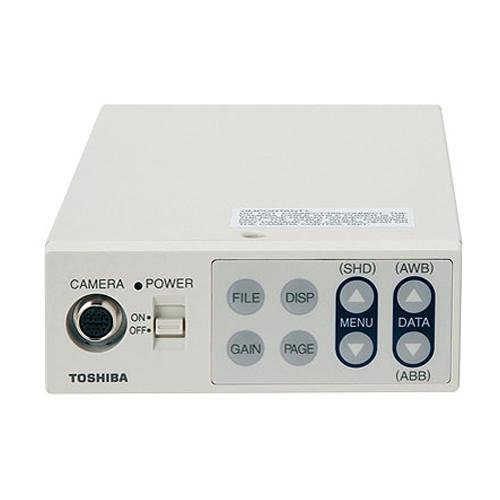

Most camera controls are accessed from the front of the unit. These include a power On/Off switch, an AWB and gain switch, buttons for menu selection and a button to change scene files and display modes. The rear of the unit adds a 59.94i to 60i format switch as well as a key lock On and Off switch. Also located on the back of the unit are two sync ports, a wired remote control terminal and a 12VDC power input. Note: Camera connecting cable (EXCHD) and power supply (12VDC) sold separately In the Box Toshiba IK-HD1D Camera Control Unit 1 Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toshiba IK-HD1D Camera Control Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToshiba IK-HD1D Specs | Applications | Scientific Imaging, Specialty Broadcast, Security, Industrial | | Connectors | DVI: DVI-D (x1 Output)
Component/RGB: BNCx3 (x1 Output)
External Sync: BNCx1
Sync Out: BNCx1
Remote Control: 8-pin Mini-DIN, RS-232C | | Scanning Frequency | H: 33.7kHz V: 59.94Hz
H: 28.1kHz V: 50Hz | | Power Requirements | 12VDC | | Power Consumption | 10.3W | | Operating Temperature | 32 - 104°F (0 - 40°C) | | Dimensions (WxHxD) | 4.3 x 1.6 x 7.3" (11 x 4 x 18.6 cm) | | Weight | 1.6 lbs (0.73kg) |
