User Manual for Toshiba IK-HD1E Camera Control Unit Click to enlarge the picture
Contents of the user manual for the Toshiba IK-HD1E Camera Control Unit
- Product category: CCUs & Base Stations Toshiba
- Brand: Toshiba
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toshiba CCUs & Base Stations
 |
User manual for the Toshiba IK-HD1E Camera Control Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toshiba product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toshiba user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toshiba product will considerably shorten its lifespan!
|

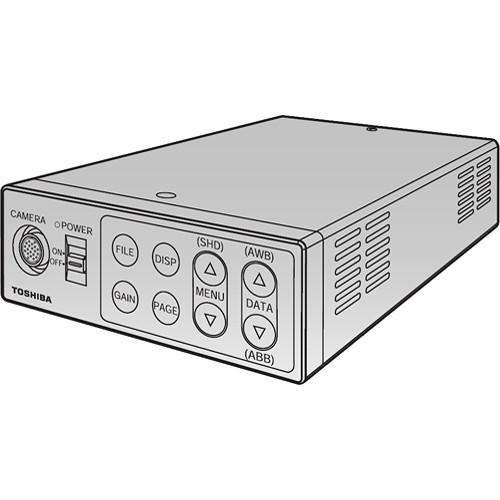

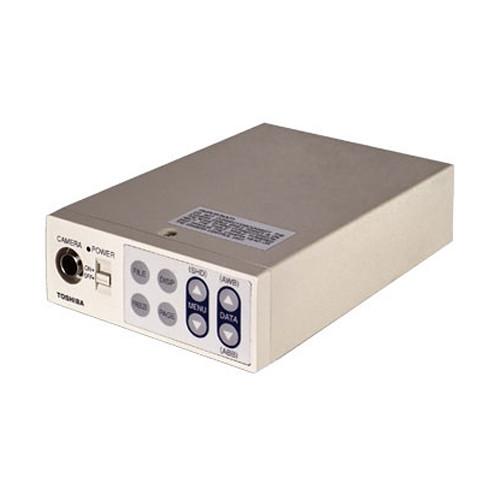

Product description The Toshiba IK-HD1E Camera Control Unit (CCU) is an interface box for connecting a Toshiba IK-HD1H 3CCD HD camera head to an HD video monitor. Very similar to the IK-HD1D, the 'E' model also provides analog and digital HD video connections, with the main difference being the substitution of an HD-SDI output for DVI-D. This allows for use with high-grade professional HD monitors. The remote interface is also different, a 9-pin DSUb versus an 8-pin mini-DIN, while the component/RGB connectors--in the form of three BNC terminals (Y/Pb/Pr)--remain the same.

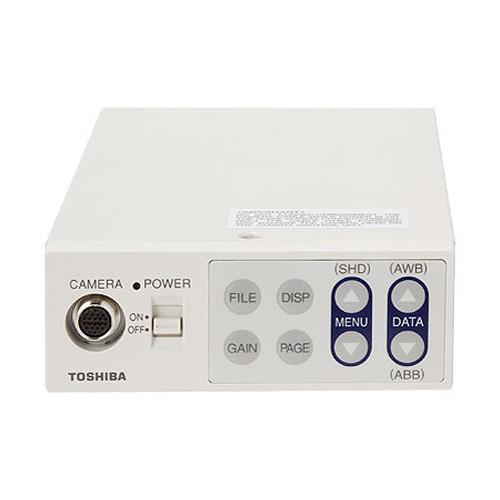

Most camera controls are accessed from the front of the unit. These include a power On/Off switch, an AWB and gain switch, buttons for menu selection and a button to change scene files and display modes. The rear of the unit adds a 59.94i to 60i format switch as well as a key lock On and Off switch. Also located on the back of the unit are two sync ports, a wired remote control terminal and a 12VDC power input. Note: Camera connecting cable (EXCHD) and power supply (12VDC) sold separately In the Box Toshiba IK-HD1E Camera Control Unit 1 Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toshiba IK-HD1E Camera Control Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToshiba IK-HD1E Specs | Applications | Scientific Imaging, Specialty Broadcast, Security, Industrial | | Connectors | HD-SDI: BNC (x1 Output)
Component/RGB: BNCx3 (x1 Output)
External Sync: BNCx1
Sync Out: BNCx1
Remote Control: 8-pin Mini-DIN, RS-232C | | Scanning Frequency | 50Hz - 59.94Hz (60Hz) switchable | | Power Requirements | 12VDC | | Power Consumption | 10.3W | | Operating Temperature | 32 - 104°F (0 - 40°C) | | Dimensions (WxHxD) | 4.3 x 1.6 x 7.3" (11 x 4 x 18.6 cm) | | Weight | 1.6 lbs (0.73kg) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
