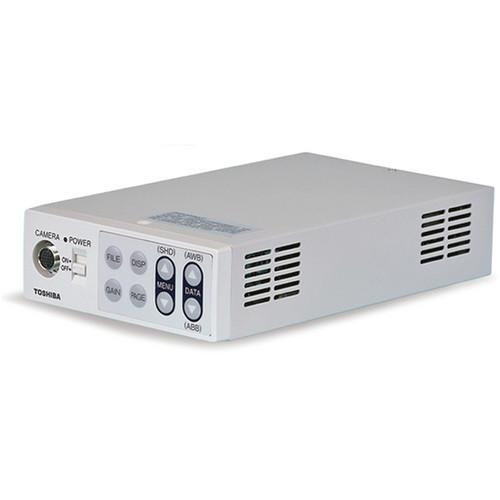

User Manual for Toshiba IK-HD2C Camera Control Unit with HD-SDI for IK-HD1H Click to enlarge the picture
Contents of the user manual for the Toshiba IK-HD2C Camera Control Unit with
- Product category: CCUs & Base Stations Toshiba
- Brand: Toshiba
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toshiba CCUs & Base Stations
|
User manual for the Toshiba IK-HD2C Camera Control Unit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toshiba product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toshiba user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toshiba product will considerably shorten its lifespan!
|
Product description Providing control and video outputs for the Toshiba IK-HD1H camera, the Toshiba IK-HD2C Camera Control Unit with HD-SDI for IK-HD1H is a small interface box compatible with NTSC frame rates. As most camera controls are accessible from the front of the unit, the CCU is easy to operate via the front panel, or you can use an optional RS-232c remote control connected to the back of the unit. Front panel controls include; power On/Off, AWB and gain switch, buttons for menu selection and a button to change scene files and display modes.
The rear of the unit provides 59.94i to 60i format selection, as well as a key lock On and Off switch. Also located on the back of the unit are the Ext. Sync in and Sync out ports, a wired remote control terminal and a 12 VDC power input. This CCU only works with the IJ-HD1H remote camera head, which is not included, and requires a compatible camera connecting cable and 12 VDC power supply, both of which must be sourced separately. - On Screen Display, when connected to an optional monitor.
- White Balance: ATW (Auto Tracking), AWB (Automatic), Manual.
- Five user programmable user files are available for camera settings.
- The CCU provides image processing control of:
-
- Gamma correction leve -10 to 10
- Detail gain -7 to 7
- Master Pedestal -200 to 200
- Red pedestal -100 to 100
- Blue pedestal -100 to 100
- digital Noise Reduction on/off
- You can also use Matrix color correction primary and secondary color hues
- Electronic Shutter with auto, manual, and Synchro Scan. Synchro scan allows you to adjust the scan rate to remove roll bar when shooting a monitor.
- Automatic / Manual lens shading correction.
In the Box Toshiba IK-HD2C Camera Control Unit with HD-SDI for IK-HD1H 1 Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toshiba IK-HD2C Camera Control Unit with HD-SDI for IK-HD1H in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToshiba IK-HD2C Specs | Scanning System | 2:1 Interlace | | Scan Frequencies | 59.94 Hz
Horizontal: 33.716 kHz
Vertical: 59.94 Hz
60 Hz
Horizontal: 33.75 kHz
Vertical: 60 Hz | | Sync System | Internal / External (auto switching) | | Resolution (H x V) | 800 x 800 TV lines standard | | Connectors | HD-SDI: BNC (x1 Output)
Component/RGB: BNCx3 (x1 Output)
External Sync: BNCx1
Sync Out: BNCx1
Remote Control: 8-pin Mini-DIN, RS-232C | | Gain | Auto / Manual / Off | | Output Signal | Y/Pb/Pr: 0.7 V (p-p) standard
RGB: 0.7 V (p-p) standard
HD-SDI: 0.8 V (p-p) standard (SMPTE 292) | | External Sync Input | HD SYNC 0.6 V (p-p)
59.94 Hz: Horizontal: 33.716 kHz ±35 ppm, Vertical: 59.94 Hz ±35 ppm
60 Hz: Horizontal: 33.75 kHz ±35 ppm, Vertical: 60 Hz ±35 ppm | | Sync Signal Output | SYNC 0.6 V ±0.1 V
59.94 Hz: Horizontal: 33.716 kHz ±35 ppm, Vertical: 59.94 Hz ±35 ppm
60 Hz: Horizontal: 33.75 kHz ±35 ppm, Vertical: 60 Hz ±35 ppm | | Interface | RS-232C | | Power Requirements | 12 VDC ± 10% | | Power Consumption | Approx. 10.3 W (Including camera head, and when the DC Supply is 12 V) | | Temperature & Humidity | Operating
Temperature: 32 to 104°F / 32 to 40°C
Humidity: < 90% (non condensing) | | Dimensions (WxHxD) | 4.3 x 1.6 x 7.3" / 11 x 4 x 18.6 cm | | Weight | 1.6 lbs / 0.73 kg |
