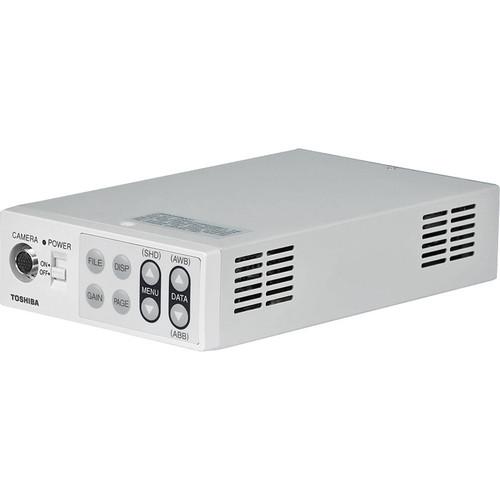

User Manual for Toshiba IK-HD3D Camera Control Unit for IK-HD3H and IK-HR3H Camera Heads Click to enlarge the picture
Contents of the user manual for the Toshiba IK-HD3D Camera Control Unit for
- Product category: CCUs & Base Stations Toshiba
- Brand: Toshiba
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toshiba CCUs & Base Stations
|
User manual for the Toshiba IK-HD3D Camera Control Unit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toshiba product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toshiba user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toshiba product will considerably shorten its lifespan!
|
Product description The Toshiba IK-HD3D Camera Control Unit for IK-HD3H and IK-HR3H Camera Heads will allow you to control the camera head. It enables you to adjust the white balance, gain, shading, shutter settings, and more. - Auto & manual white balance
UPC: 022265503973 In the Box Toshiba IK-HD3D Camera Control Unit for IK-HD3H and IK-HR3H Camera Heads Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toshiba IK-HD3D Camera Control Unit for IK-HD3H and IK-HR3H Camera Heads in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToshiba IK-HD3D Specs | Compatible Models | Toshiba IK-HD3H and IK-HR3H camera heads | | Pixels | Effective: 1944 horizontal x 1092 vertical
Output: 1920 horizontal x 1080 vertical | | Scanning System | Progressive/interlace | | Scanning Frequency | Horizontal: 67.433 kHz, vertical: 59.94 Hz @ 1080p/59.94 Hz
Horizontal: 56.250 kHz, vertical: 50 Hz @ 1080p/50 Hz
Horizontal: 33.716 kHz, vertical: 59.94 Hz @ 1080i/59.94 Hz
Horizontal: 28.125 kHz, vertical: 50 Hz @ 1080i/50 Hz | | Sync System | Internal/external auto-switching | | Resolution (H x V) | 1000 x 1000 TV lines standard | | Sensitivity | 59.94 Hz, 2000 lux, 3000 K: F10 standard
50 Hz, 2000 lux, 3000 K: F11 standard | | Minimum Illumination | 4.8 lx (at 59.94Hz setting, F2.2, sensitivity +20dB, BINNING: ON)
4.0 lx (at 50Hz setting, F2.2, sensitivity +20dB, BINNING: ON)
9.6 lx (at 59.94Hz setting, F2.2, sensitivity +20dB, BINNING: OFF)
8.0 lx (at 50Hz setting, F2.2, sensitivity +20dB, BINNING: OFF) | | S/N Ratio | 56 dB standard (gain 0 dB, DNR off, DTL gain 0, gamma off, matrix off, and C.Temp 5600K during light elimination) | | Scene File | 5 files (A, B, C, D, E) | | White Balance Modes | AWB (automatic white balance), manual | | Gain Options | Auto (automatic gain control), manual, off (0 dB) | | Output Signal | DVI (digital RGB), DVI-D terminal: 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i | | External Sync Input | SYNC 3 values ±0.3 V, ±6 dB 75 Ohm unbalanced BNC connector
Horizontal: 67.433 kHz ±35 ppm, vertical 59.94 Hz ±35 ppm @ 1080p/59.94 Hz
Horizontal: 56.250 kHz ±35 ppm, vertical 50 Hz ±35 ppm @ 1080p/50 Hz
Horizontal: 33.716 kHz ±35 ppm, vertical 59.94 Hz ±35 ppm @ 1080i/59.94 Hz
Horizontal: 28.125 kHz ±35 ppm, vertical 50 Hz ±35 ppm @ 1080i/50 Hz | | Sync Signal Output | SYNC 3 values ±0.3 V ±0.1 V 75 Ohm unbalanced BNC connector
59.94 Hz: 33.716 kHz ±35 ppm horizontal, 59.94 Hz ±35 ppm vertical
50 Hz: 28.125 kHz ±35 ppm horizontal, 50 Hz ±35 ppm vertical | | Interface | Serial data interface (RS-232C compliant) | | Ambient Temperature | 32 - 104°F (0 - 40°C) | | Ambient Humidity | < 90% (non condensing) | | Power Requirements | 12 VDC ±10% | | Power Consumption | ~11.4 W (including camera head; with the power supply voltage of 12 V) | | Dimensions (W x H x D) | 4.3 x 1.8 x 7.3" (110.0 x 44.6 x 186.0 mm) | | Weight (Approx.) | 1.4 lbs (610.0 g) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 9.9 x 5.9 x 4.3" |
