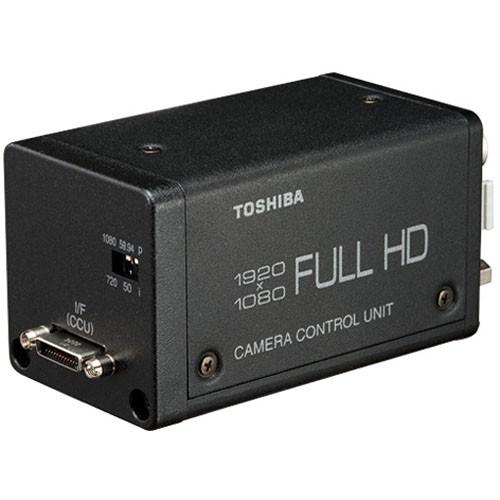

User Manual for Toshiba IK-HR1CD Camera Control Unit Click to enlarge the picture
Contents of the user manual for the Toshiba IK-HR1CD Camera Control Unit
- Product category: CCUs & Base Stations Toshiba
- Brand: Toshiba
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toshiba CCUs & Base Stations
|
User manual for the Toshiba IK-HR1CD Camera Control Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toshiba product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toshiba user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toshiba product will considerably shorten its lifespan!
|
Product description The Toshiba IK-HR1CD Camera Control Unit provides camera control capabilities for the Toshiba IK-HR1H Remote Color Head Camera and eases television production, especially in multi-camera environments. Supporting the DVI output standard, the IK-HR1H CCU offers 1080p at 60 fps, 1080i at 30 fps, 720p at 60 fps (switchable) output. Matching the ultra small dimensions of the IK-HR1H camera, the CCU measures 1.7x1.7x3 "(44x44x78mm). Also included are 5 scene files (A, B, C, D, and E) that can be chosen for production depending on the shooting conditions. Powered by a 12 VDC supply, the IK-HR1CD offers white balance (auto tracking / auto / manual) and shutter speed control functions that can be remotely controlled by the user via the RS-232C protocol. - Provides camera control for Toshiba IK-HR1H offering ease of television production, especially in multi-camera environments
- Supports DVI 1080p at 60 fps, 1080i at 30 fps, 720p at 60 fps (switchable) output
- Compact size - measures 1.7x1.7x3 " (44x44x78 mm), matching the ultra small structure of the IK-HR1H camera
- Includes 5 scene files (A, B, C, D, and E) that can be chosen for production depending on the shooting conditions
- Offers white balance (auto tracking / auto / manual) and shutter speed control functions that can be remotely controlled by the user via the RS-232C protocol
UPC: 883974242375 In the Box Toshiba IK-HR1CD Camera Control Unit Instruction Manual 1-Year Limited Warranty of Labor and Parts Table of Contents
|
Upload User Manual
Have you got an user manual for the Toshiba IK-HR1CD Camera Control Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToshiba IK-HR1CD Specs | Image Sensor | 1/3" color CMOS sensor (Rolling shutter) | | Pixels | Horizontal: 1920, Vertical: 1080 (max.) | | Signal System | 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p | | Scan Frequencies | Horizontal: 67.43kHz, Vertical: 59.94Hz (when set to 1080/59.94p)
Horizontal: 56.25kHz, Vertical: 50Hz (when set to 1080/50p)
Horizontal: 33.72kHz, Vertical: 59.94Hz (when set to 1080/59.94i)
Horizontal: 28.13kHz, Vertical: 50Hz (when set to 1080/50i)
Horizontal: 44.96kHz, Vertical: 59.94Hz (when set to 720/59.94p)
Horizontal: 37.50kHz, Vertical: 50Hz (when set to 720/50p) | | Sensitivity | F4 standard (2000 lx, 3000K) | | Minimum Illumination | 8 lx standard (50 IRE, F1.4, gain 18 dB, gamma setting ON (setting value 0), 3000 K | | Signal to Noise Ratio | 54 dB standard (gain 0 dB Y-conversion) | | Output Signal | DVI-I (Digital RGB, Analog RGB): DVI-I terminal | | Sync System | Internal | | Sync Output | H SYNC: 5 V + 0.5 V / -1.0 V (Positive polarity) DVI-I terminal
V SYNC: 5 V + 0.5 V / -1.0 V (Positive polarity) DVI-I terminal | | White Balance | ATW (Automatic tracing white balance), AWB (Automatic white balance), MANUAL (Manual) | | Gain | MANUAL (Manual), OFF (0 dB) | | Scene | Scene file: A, B, C, D, E | | Remote Control | Serial data interface (RS232C) | | Power Supply | 12V DC +/-10% | | Power Consumption | Approx. 6.2 W (including the camera head) | | Operating Temperature | 32 - 104°F (0 - 40°C) | | Operating Humidity | Less than 90% (non condensing) | | Options | IK-HR1H: 1/3" full HD color camera head
EXC-HR03: Camera cable approx. 9.8' (3m)
EXC-HR05: Camera cable approx. 16.4' (5m)
EXC-HR10: Camera cable approx. 32.8' (10m) | | Dimensions (WxHxD) | 1.7 x 1.7 x 3.1" (44 x 44 x 77.4mm) | | Weight | 0.3 lbs (138g) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 6.7 x 4.8 x 3.9" |
