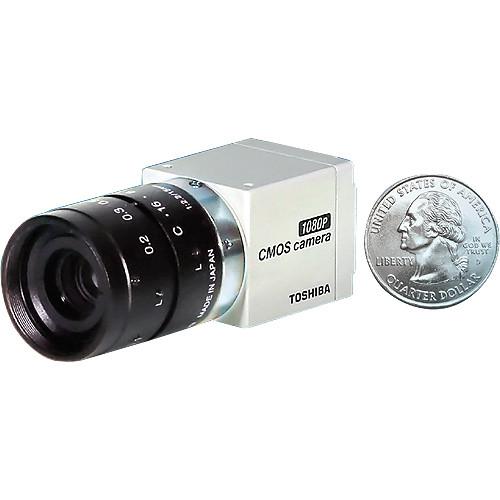

Product description The Toshiba IK-HR3H Ultra-Small 1-Chip CMOS HD Video Camera Head captures clear images in 1080p resolution, thanks to the built-in 1/3" HD CMOS sensor. The camera offers remarkable user controllable features for optimal color accuracy along with advanced noise reduction technology. The camera head connects to the IK-HD3D camera control unit via an EXC-3HD camera cable (CCU and camera cable not included). Because of this split design, the camera head is compact and can be deployed in space constrained areas. The camera head captures the images and transfers them to the CCU which performs the required processing.
Its compact size, C-mount lens compatibility and exceptional video performance provide flexibility to fit diverse applications, mechanical considerations, and budgets. - 1920 x 1080 Digital DVI output
- High sensitivity and wide dynamic range
- Up to 900 TVL resolutions
- 5 user-configurable scene files to achieve exceptional color accuracy and control
- Binning mode for 4x increase in sensitivity
- Switchable between 1080p and 1080i
- Gen lock for 3D and multi-camera use
- Camera head is interchangeable with the controller
- IK-HD3D control unit compatible with camera head (available separately)
- Applications: 3-D applications, Microscopy / Endoscopy, Scientific Imaging / Diagnostics, Broadcast, Aerospace / Defense
In the Box Toshiba IK-HR3H Ultra-Small 1-Chip CMOS HD Video Camera Head Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toshiba IK-HR3H Ultra-Small 1-Chip CMOS HD Video Camera Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToshiba IK-HR3H Specs | Image Sensor | 1-CMOS, 1/3", 2.1MP progressive | | Output Resolutions | H x V: 1920 x 1080 | | Resolution | 900 TVL | | Sensitivity | F7 standard (59.94 Hz setting)
F7.7 standard (50 Hz setting) at 2,000 lux, 3,000 K | | Minimum Illumination | 9.9 lux (59.94 Hz setting)
8.2 lux (50 Hz setting) at F2.2 , 20 dB, BINNING: ON
19.8 lux (59.94 Hz setting)
16.3 lux (50 Hz setting) at F2.2, 20 dB, BINNING: OFF | | S/N Ratio | 56 dB standard
AGC: OFF
Gamma: OFF
Enhance: OFF | | Ambient Temperature | 32 to 104˚F (0 to 40˚C) | | Ambient Humidity | Less than 90% | | Dimensions (W x H x D) | 1.0 x 1.0 x 1.3" (25.4 x 25.4 x 33.0 mm) protruding portion is not included | | Weight | Approximately 1.1 oz (34.0 g) |
