Toshiba IK-TF5P2 3CCD Progressive Scan Color

Search your instruction manual in PDF to download

User Manual for Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera

Click to enlarge the picture
Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera Contents of the user manual for the Toshiba IK-TF5P2 3CCD Progressive Scan Color
  • Product category: Industrial & Multi-Purpose Cameras Toshiba
  • Brand: Toshiba
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Toshiba Industrial & Multi-Purpose Cameras

User manual for the Toshiba IK-TF5P2 3CCD Progressive Scan Color contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Toshiba product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Toshiba user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Toshiba product will considerably shorten its lifespan!



Product description

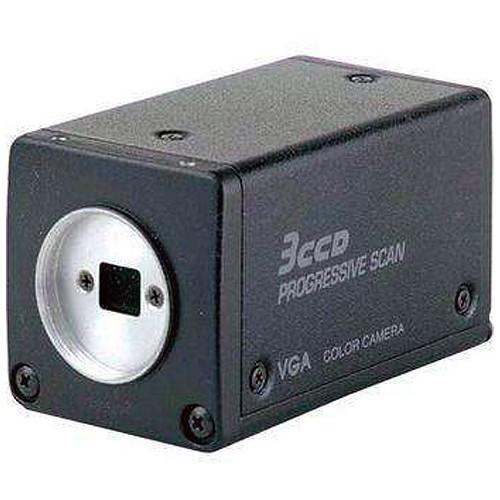

The Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera provides accurate colors and high resolution of fast moving objects for a variety of process control, inspection, and machine vision applications. The design expands digital processing capabilities including electronic noise reduction, auto mode electronic shutter, partial scan frame rates up to 250 fps, Power over Camera Link, and reduced power requirements.
    General
  • 3CCD Progressive Scan
    Digital Output - Camera Link
    Partial Scanning to increase frame rate up to 250 fps
    White Balance - Manual or Auto
    Dual power input - PoCL or 12VDC
    On-screen & RS-232 setup
    Applications
  • Machine Vision
    Process control
    Inspection
    Factory Automation
UPC: 022265188361 In the Box Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Toshiba IK-TF5P2 3CCD Progressive Scan Color Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Toshiba IK-TF5P2 Specs

    Scanning System Progressive
    Image Sensor 3 x 1/3" CCD, RGB prism
    Effective Pixels VGA (659 x 494)
    Output Resolution 659 x 494
    Pixel Size 7.4 x 7.4µm
    Sensing Area 4.9 x 3.7 mm
    Frame Rate 59.94 fps
    Partial Scanning 250 fps (100 lines)
    199 fps (134 lines)
    174 fps (158 lines)
    126 fps (230 lines)
    121 fps (240 lines)
    93 fps (324 lines)
    Off (59.94) (494 lines)
    Binning Off, On, Ext On
    Pixel Clock Frequency 24.5454 MHz
    Sync Signal Frequency Horizontal: 31.469 kHz
    Vertical: 59.94 kHz
    Horizontal Resolution 480 TVL
    Output Signal 8-bit Digital RGB Camera Link
    Sync Signal Output FVAL/LVAL/DVAL (positive polarity) Pixel Clock
    External Sync Input HD: CC3 VD: CC4 (LVDS input) Negative polarity
    External Trigger Input CC1 (LVDS input) More than 2µs pulse width
    Partial Scanning Control CC2 (LVDS input)
    Gamma Correction On/ Off
    S/N Ratio 62 dB Standard (G)
    White Balance AWB, Manual
    Gain Manual (0 to 18 dB), Off (0 dB)
    Electronic Shutter Manual(1/100 to 1/100,000 sec)
    Synchro Scan (1 to 512 Frames)
    Sensitivity F6.8 Standard
    (2,000 lux, 3,000 K)
    Noise Reduction On / Off
    Minimum Illumination 14 lux (f2.2 +18 dB, 3,000 K)
    Lens Mount C-Mount flange back 17.526 mm in air
    Ambient Temperature 32 to 104˚F (0 to 40˚C)
    Ambient Humidity Less than 90%
    Input Power 12 VDC ±10%
    PoCL or DC Connector
    Interface Serial data interface
    TC(RXD) TFG(TXD)
    Power Consumption Approximately 3.2 W Normal
    Approximately 3.4 W Partial Scan
    Class FCC Class A, CE
    Dimensions (WxHxD) 1.73 x 1.73 x 3.07" (44.00 x 44.00 x 78.00 mm)
    Weight 0.35 lb (0.15 kg)
    Package Weight 0.8 lb
    Box Dimensions (LxWxH) 6.8 x 4.8 x 3.9"
