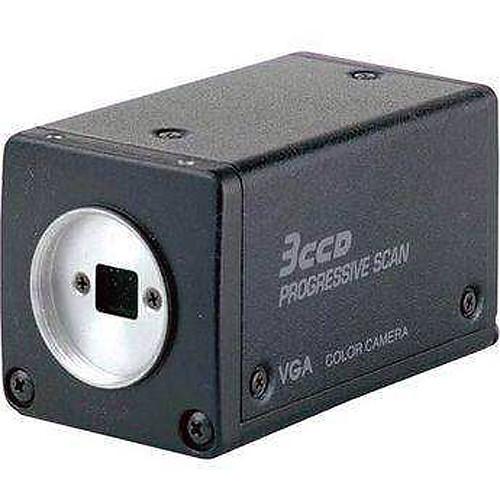

User Manual for Toshiba IK-TF7P2 3CCD Progressive Scan Color Camera Click to enlarge the picture
Contents of the user manual for the Toshiba IK-TF7P2 3CCD Progressive Scan Color
- Product category: Industrial & Multi-Purpose Cameras Toshiba
- Brand: Toshiba
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toshiba Industrial & Multi-Purpose Cameras
|
User manual for the Toshiba IK-TF7P2 3CCD Progressive Scan Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toshiba product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toshiba user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toshiba product will considerably shorten its lifespan!
|
Product description The Toshiba IK-TF7P2 3CCD Progressive Scan Color Camera is an industrial camera that successfully captures fast moving objects in process control, inspection, and machine vision applications. Three CCD chips each separately capture red, green, and blue and produce images in accurate color and high 1024 x 768 resolution. A progressive scanning system enables the chips to capture lines of a frame consecutively as opposed to alternately. - Key Features
-
- 3CCD progressive scan
- 1024 x 768 @ 29.18 fps resolution/frame rate
- Compact one-piece configuration
- "Camera Link" digital output
- Manual or Auto electronic shutter
- Manual or Auto white balance
- Electronic noise reduction
- Up to 90 fps partial scanning to increase frame rate
- PoCL or 12VDC dual power output
- C-mount lens mount
- On-screen and RS-232 setup
- Applications
-
- Machine vision
- Process control
- Inspection
- Factory automation
UPC: 022265234167 In the Box Toshiba IK-TF7P2 3CCD Progressive Scan Color Camera 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toshiba IK-TF7P2 3CCD Progressive Scan Color Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToshiba IK-TF7P2 Specs | Scanning System | Progressive | | Image Sensor | 3x 1/3" CCD, RGB prism | | Effective Pixels | 1024 x 768 (XGA) | | Output Resolution | 1034 x 779 | | Pixel Size | 4.65µm x 4.65µm | | Sensing Area | H 4.8 x V 3.6 mm | | Frame Rate | 29.18 fps | | Partial Scanning | 90 fps (175 lines)
80 fps (211 lines)
70 fps (259 lines)
60 fps (322 lines)
50 fps (412 lines)
42 fps (512 lines)
40 fps (542 lines)
Off (30) (768 lines) | | Binning | None | | Pixel Clock Frequency | 29.5 MHz | | Sync Signal Frequency | H 23.229 kHz, V 29.18 kHz | | Horizontal Resolution | 760 TV lines | | Output Signal | 8 bit digital RGB, Camera Link | | Sync Signal Output | FVAL/LVAL/DVAL (positive polarity) Pixel Clock | | External Sync Input | HD: CC3, VD: CC4 (LVDS input) negative polarity | | External Trigger Input | CC1 (LVDS input), more than 2µs pulse width | | Partial Scanning Control | CC2 (LVDS input) | | Gamma Correction | On / Off | | S/N Ratio | 56 dB | | White Balance | AWB, Manual | | Gain | Manual (0 to 18 dB), Off (0dB) | | Electronic Shutter | Manual (1/100 to 1/100,000 sec), Synchro Scan (1-512 Frames) | | Sensitivity | F6.8 standard (2,000 Lux, 3,000 K) | | Noise Reduction | On / Off | | Minimum Illumination | 14 lux (f2.2 +18 dB, 3,000 K) | | Lens Mount | C-Mount flange back, .68" (17.5 mm) in air | | Class | FCC class A, CE | | Ambient Temperature | 32 to 104°F (0 to 40°C) | | Ambient Humidity | Less than 90% | | Input Power | 12 VDC ±10% PoCL or DC connector | | Interface | Serial data interface TC(RXD), TFG(TXD) | | Power Consumption | Approx 3.0 W normal, approx 3.1 W partial scan | | Dimensions | 1.7 x 1.7 x 3" (4.4 x 4.4 x 7.8 cm) | | Weight | .35 lb (158 g) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 6.7 x 4.7 x 3.9" |
