User Manual for Toshiba True 1080p Hi-Def Camera Click to enlarge the picture
Contents of the user manual for the Toshiba True 1080p Hi-Def Camera
- Product category: Industrial & Multi-Purpose Cameras Toshiba
- Brand: Toshiba
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Toshiba Industrial & Multi-Purpose Cameras
|
User manual for the Toshiba True 1080p Hi-Def Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Toshiba product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Toshiba user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Toshiba product will considerably shorten its lifespan!
|

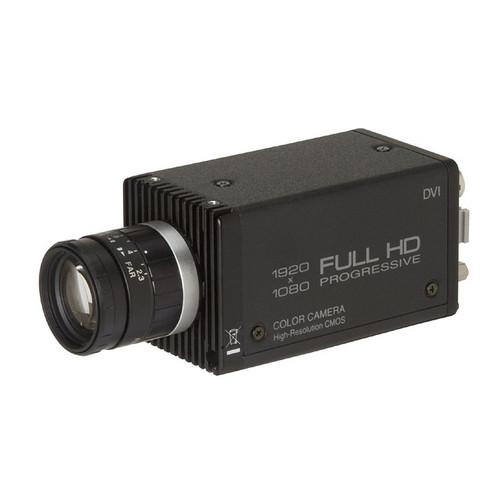

Product description The Toshiba IK-HR1D Ultra Compact HD-SDI 1080p/60 FPS CMOS Camera uses a 1/3" CMOS 2.1 MP sensor to capture images at a resolution of 1920 x 1080 pixels and at a speed of 60 frames per second. The results are images with a high degree of clarity and color fidelity. Because of its progressive scan sensor, the IK-HR1D also captures moving objects with little or no motion artifacts.
An HD camera that is also ultra compact and lightweight can make for a powerful monitoring tool in a wide range of conventional and specialized imaging applications. It can be used in sports, entertainment, wildlife, scientific, medical and numerous other industries needing the sharpness of HD video along with the versatility of a compact camera.
The IK-HR1D features a single DVI-I port that can be set to output a digital signal at 1080i/1080p (8bit X RGB) or an analog signal for interfacing the camera with analog equipment via a DVI-I to RGB adapter cable. The camera also features automatic and manual shutter, gain, white balance, and gamma controls in addition to 5 scene file settings. Note: Lens (C mount) and AC adapter (AC-Y415A) sold separately - Ultra compact (approx 1.8 x 1.8 x 3") one-piece system
- Outputs full 1920 x 1080 pixels at 60 frames per second
- Utilizes 1/3" CMOS 2.1 megapixel sensor
- Weighs only 4.3 oz. (without lens)
- Digital DVI and Analog RGB interface
- Auto and manual white balance
- Auto and manual electronic shutter
In the Box Toshiba True 1080p Hi-Def Camera 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Toshiba True 1080p Hi-Def Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersToshiba IK-HR1D Specs | Scanning System | Progressive (1080p)/Interlace (1080i) Switchable
Progressive (1080p) - H:67.5kHz, V:60Hz
Interlace (1080i) - H:33.75kHz, V:60Hz | | Image Sensor | 1/3" Color Progressive scan CMOS | | Pixels | Horizontal: 1920, Vertical: 1080 | | Lens | Accepts C mount lens | | Sensitivity | f/4 standard (2000 lux, 3000K) | | Minimum Illumination | 8 Lux (50 IRE, F1.4, gain + 18dB) | | Frame Rate | 30 fps (1080i), 60 fps (1080p) | | Controls | Shutter
Manual - Off (1/60), 1/100, 1/250, 1/500, 1/000, 1/2000, 1/4000, 1/8000, 1/16000, 1/32000 sec
Auto Level - range of -100 to 100 synchronized scan, set by horizontal scanning time
White Balance
AWB (automatic white balance)
ATW (automatic tracking white balance)
Manual (manually adjustable)
Gain: Manual/Off
Gamma: Off/Manual
Scene File setting: 5 files A/B/C/D/E | | Video Output | Digital output (DVI-I connector output) 8bit X RGB
Analog output (DVI-I connector output) | | Sync | Analog output (DVI-I connector output)
H: 5V + o.5V/1.0V (p)
V: 5V + o.5V/-1.0V (p) | | Power Requirements | 12VDC, 12 VDC ± 10% DCIN connector (4 pin) / (requires AC-Y415A) | | Power Consumption | Approx. 4W | | Operating Temperature | 32 - 104°F (0 - 40°C) | | Dimensions (WxHxD) | 1.8 x 1.8 x 3.1" (46 x 46 x 79mm) | | Weight | 4.3 oz (122g) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 6.7 x 4.8 x 3.9" |
