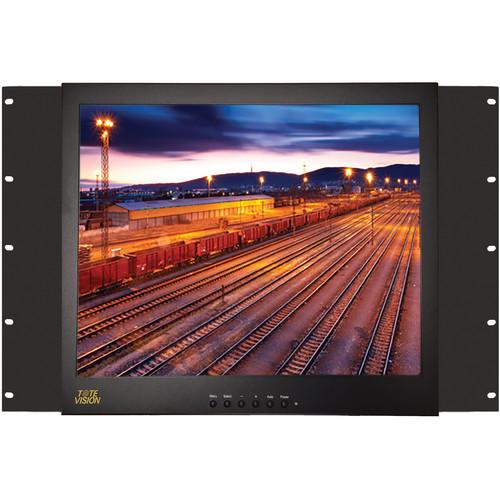

User Manual for Tote Vision 17" LED Rack-Mount Monitor Click to enlarge the picture
Contents of the user manual for the Tote Vision 17" LED Rack-Mount Monitor
- Product category: Production Monitors Tote Vision
- Brand: Tote Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tote Vision Production Monitors
|
User manual for the Tote Vision 17" LED Rack-Mount Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tote Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tote Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tote Vision product will considerably shorten its lifespan!
|
Product description The 17" LED Rack-Mount Monitor from Tote Vision offers viewing angles of 85°/85°/80°/80° (left, right, top, bottom) and a brightness rating of 250 cd/m2. This unit has a native resolution of 1280 x 1024. The contrast ratio of 1000:1 showcases the monitor's ability to handle light and dark images on screen. The panel has a 5 ms response time to combat image blur and distortion on moving images. - Displays 1080i/p digital video
- 3D Comb Filter for improved picture quality
- 1000:1 contrast ratio for better picture definition
- Rack mount form factor (8 RU)
UPC: 081651483053 In the Box Tote Vision 17" LED Rack-Mount Monitor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Tote Vision 17" LED Rack-Mount Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTote Vision LED-1709HDR Specs | Screen Size | 17" / 43.2 cm | | Resolution (H x V) | 1280 x 1024 | | Coating | Anti-glare | | Visible Screen Size | 13.4 x 10.7" / 340 x 272 mm | | Native Aspect Ratio | 5:4 | | Brightness | 250 cd/m² | | Contrast Ratio | 1000:1 | | Backlight | LED (30K) | | Dot Pitch | 0.264 x 0.264 mm | | Color Depth | 16.7 million | | Number of Pixels | 1,310,720 | | Response Time | 5 ms (rising/falling) | | Viewing Angles | Left/Right/Top/Bottom: 85°/85°/80°/80° | | Connectors | 2 x BNC input / output
1 x VGA 15-pin D-sub input
1 x HDMI input
1 x L/R RCA input
1 x 3.5 PC stereo audio input
1 x 2.1 mm DC input | | Audio | 2 x 1.5 W | | Power Requirements | 12 VDC (100 to 240 AC, 50/60 Hz) | | Processor | Digital Signal Processor: 3D Comb Filter | | Humidity | 10 to 90% | | Material | Metal | | Mount | Rack (8 RU) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 14 x 2.9" / 35.6 x 7.4 cm | | Weight | 11.9 lb / 5.4 kg | | | | Package Weight | 15.95 lb | | Box Dimensions (LxWxH) | 23.3 x 20.2 x 6.8" |
