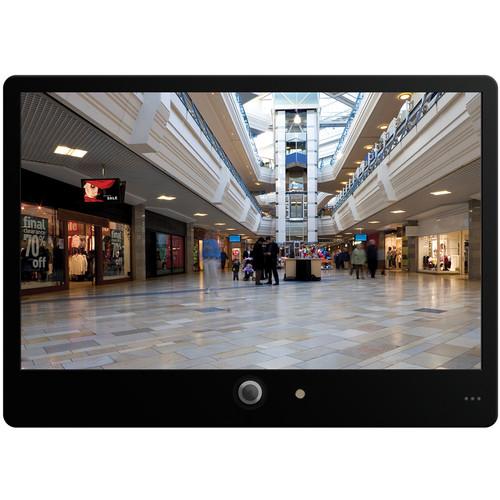

User Manual for Tote Vision 27" LCD Public View Monitor with Built-in 1080p Camera

Click to enlarge the picture
Tote Vision 27" LCD Public View Monitor with Built-in 1080p Camera Contents of the user manual for the Tote Vision 27" LCD Public View
  • Product category: Surveillance Monitors Tote Vision
  • Brand: Tote Vision
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Tote Vision Surveillance Monitors

User manual for the Tote Vision 27" LCD Public View contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Tote Vision product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Tote Vision user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Tote Vision product will considerably shorten its lifespan!



Product description

The Tote Vision 27" LCD Public View Monitor offers a maximum display resolution of 1920 x 1080 and a contrast ratio of 3000:1. It features 3D comb filter and 3D de-interlace functions for improving overall image quality. The display also supports PiP (Picture-in-Picture) and POP (Picture-out-Picture) functions for simultaneous camera display and promotions.The monitor features a built-in full HD camera with 3.3-12mm varifocal lens. The camera also features a 1/2.8" Sony Exmor sensor for capturing images at a maximum resolution of 1920 x 1080. In addition, the camera comes with a built-in SD card slot.
  • 1920 x 1080 with no downscaling
  • LED backlight
  • Camera captures and sends 1080p high definition images
  • Simultaneous camera output via IP and composite (CVBS)
  • Aesthetically designed and durable slim metal case with acrylic front face
  • Body sensor for auto switch capability
  • On-screen warning message (on/off capable option)
  • Alternate display between different channels (on/off capable option)
  • Continuous warning beep when image signal is lost
  • Includes a remote control
  • Anti-glare coating
UPC: 081651482919 In the Box Tote Vision 27" LCD Public View Monitor with Built-in 1080p Camera
  • Remote Control
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Tote Vision 27" LCD Public View Monitor with Built-in 1080p Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Tote Vision LED-2703HDPVM Specs

    LCD Size 27" (685.8 mm)
    Video System Not specified by the manufacturer
    Resolution 1920 x 1080
    Response Time 5 ms (rising/falling)
    Viewing angle (L/R/T/B) 89/89/89/89°
    Contrast Ratio 3000:1
    Brightness 350 cd/m²
    Native Aspect Ratio 16:9
    Visible Screen Size W x H: 23.53 x 13.23 (597.6 x 336 mm)
    Back Light LED (30K)
    Dot Pitch H x V: 0.3 x 0.3 mm
    Color Depth 16.7 million
    Image Sensor 1/2.8" Sony Exmor
    Camera Resolution 1920 x 1080 at 25 fps
    Minimum Illumination 0.1 Lux (Color), 0.01 Lux (B&W)
    Compression H.264/MJPEG
    Compliance ONVIF 2.2
    Camera Lens 3.3-12mm varifocal, IR corrected
    Card Storage 1 x SD card slot
    Picture Control PiP (Picture-in-Picture) and POP (Picture-out-Picture)
    Inputs/Outputs Video Camera: 1 x RJ45 output, 1 x BNC output
    Composite: 1 x BNC input, 1 x BNC output
    1 x HDMI, 1 x VGA, 1 X RJ45, 1 x USB input
    Operating Temperature 32 to 122°F (0 to 50°C)
    Power Input 24 VDC
    Power Requirements 100 to 240 VAC, 75 Hz
    Power Consumption <50 W
    Mount VESA 100 x 100 mm
    Case Durable metal, acrylic front face
    Dimensions 25.1 x 17.65 x 2.76" (637.5 x 448.3 x 70.1 mm)
    Weight 25 lb (11.3 kg)
