User Manual for Tote Vision 7" HD LED-Backlit LCD Plastic-Cased Monitor Battery Kit Click to enlarge the picture
Contents of the user manual for the Tote Vision 7" HD LED-Backlit LCD
- Product category: On Camera Monitors Tote Vision
- Brand: Tote Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tote Vision On Camera Monitors
|
User manual for the Tote Vision 7" HD LED-Backlit LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tote Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tote Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tote Vision product will considerably shorten its lifespan!
|

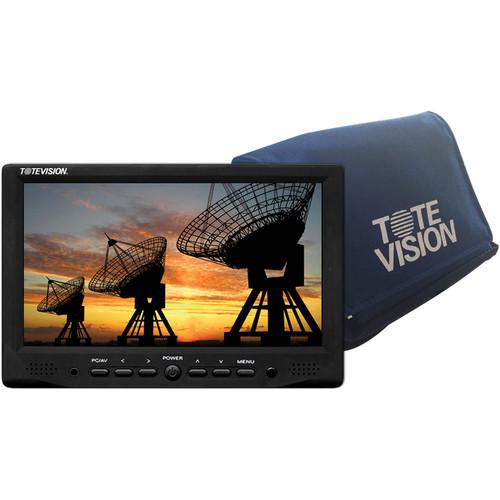

Product description The 7” HD LCD Plastic-Cased Monitor Battery Kit from Tote Vision includes the LED-709HD LCD Monitor with plastic casing, BP-563C Rechargeable Battery Pack, TB-703 Tote Bag, and an AC adapter. The LED-709HD LED-Backlit Monitor is designed primarily for field testing, video production, and remote surveillance applications. It provides HD picture quality (1080i/p and 720p) and features a built-in 5-wire resistive touchscreen.The BP-563C Rechargeable Battery Pack is a NiCad battery pack that provides up to five hours of continuous run time for compatible displays, and it is conveniently rechargeable with an included charger. The TB-703 Tote Bag comes with a sun shield and a shoulder strap, and features a pouch on the back for cables and a rechargeable battery. The monitor can be used while in the bag. - LED-709HD LED-Backlit 7" LCD Monitor The LED-709HD LED-Backlit 7" LCD Monitor from Tote Vision is designed primarily for field testing, video production, and remote surveillance applications. Multiple mounting and battery pack options are available. This versatile monitor provides HD picture quality (1080i/p and 720p) and features a built-in five-wire resistive touchscreen.
- LED backlight provides brighter picture using less power
- Displays HD signals (1080i/p and 720p)
- Built-in five-wire resistive touchscreen
- Battery pack option available for mobility
UPC: 081651482414 - BP-563 Battery Pack & Charger (2600mA) The Tote Vision BP-563 is a NiCad battery pack designed to be used with Tote Vision's line of LCD field monitors. It provides up to 5+ hours of continuous run time for compatible displays, and it is conveniently rechargeable with an included charger.
- Compatible Monitors
-
- LCD-410
- LCD-501
- LCD-566T
- LCD-640
- LCD-642
- LCD-701
UPC: 081651480458 Tote Bag with Sun Shield for LCD-703HD & LED-709HD Monitors This blue Tote Bag with Sun Shield from Tote Vision is custom-designed to hold the Tote Vision LCD-703HD or LED-709HD 7" LCD field monitor. Featuring a slot for cables and a built-in sunshield which prevents direct sunlight from hitting the screen, the Tote Bag also protects your field monitor during operation. The bag is made of a sturdy canvas-like nylon. A rear pouch comfortably accommodates cables and a rechargeable battery, and the included shoulder strap makes for easy carrying. - Nylon bag designed to carry a field monitor
- Sun shield blocks sunlight when the monitor is used in the case
- Slot for cables enables you to use the monitor while it is in the case
In the Box Bundle Items LED-709HD LED-Backlit 7" LCD Monitor ecuafqfbcdzytrtbyesqdazccdevevxxfrarvr BP-563 Battery Pack & Charger (2600mA) Tote Bag with Sun Shield for LCD-703HD & LED-709HD Monitors
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Tote Vision 7" HD LED-Backlit LCD Plastic-Cased Monitor Battery Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LED-709HD LED-Backlit 7" LCD Monitor
| Display | 7" (18 cm) TFT LCD active matrix | | Resolution | 800 x 480 | | Native Aspect Ratio | 16:9 | | Visible Screen Size | 6.0 x 3.4" (15.0 x 8.6 cm) | | Back Light | LED (20K) | | Brightness | 250 cd/m² (Nit) | | Contrast | 500:1 | | Dot Pitch | 0.0642 (H) x 0.1790 (V) mm | | Response Time | 25 ms (Rising/falling) | | Viewing Angle | 70/70/50/70° | | Audio Power | 2 x Speakers
1 x RCA input on cable | | Input | 1 x HDMI
1 x Composite RCA
1 x Composite BNC
1 x 15-Pin VGA | | Power | 1 x 2.1 mm DC input | | Remote Control | Infrared | | Operating Temperature | -4 to 158°F (-20 to 70°C) | | Humidity | 90% | | Power Requirements | 10 to 27 VDC input
2 A + Pin; negative ground | | Power Consumption | 24 W (Maximum) | | Case | ABS plastic | | Mount | VESA 75 x 75 mm; removable desk stand | | Dimensions | 6.9 x 5.3 x 1.4" (17.0 x 13.0 x 3.5 cm) | | Weight | 0.8 lb (0.3 kg) | | | | Box Dimensions (LxWxH) | 11.9 x 8.5 x 3.3" | - BP-563 Battery Pack & Charger (2600mA)
| Compatible with these Models | LCD-410
LCD-501
LCD-566T
LCD-640
LCD-642
LCD-701 | | | | Box Dimensions (LxWxH) | 8.3 x 6.5 x 4.6" | - Tote Bag with Sun Shield for LCD-703HD & LED-709HD Monitors
| Accommodates | Tote Vision LCD-703HD or LED-709HD 7" LCD field monitor with cables and rechargeable battery | | Material | Canvas-like nylon | | Type of Closure | Touch fastener | | Carrying/Transport Options | Shoulder strap | | Interior Dimensions | 19.0 x 5.3 x 2.2" (48.2 x 13.3 x 5.5 cm) | | Weight | 5.6 oz (159 g) | | | | Box Dimensions (LxWxH) | 8.25 x 6.5 x 1.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
