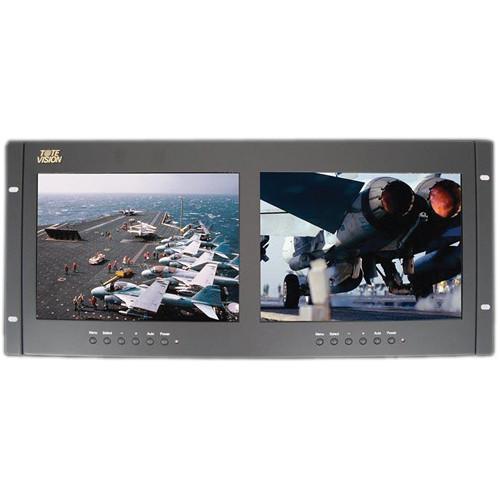

User Manual for Tote Vision Dual 9.7" Rack Mount Monitors Click to enlarge the picture
Contents of the user manual for the Tote Vision Dual 9.7" Rack Mount
- Product category: Production Monitors Tote Vision
- Brand: Tote Vision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Tote Vision Production Monitors
|
User manual for the Tote Vision Dual 9.7" Rack Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Tote Vision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Tote Vision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Tote Vision product will considerably shorten its lifespan!
|
Product description The Tote Vision Dual 9.7" Rack Mount Monitors feature two HD displays with 1924 x 768 resolution in a 19" rack mount. Each display has two BNC in, two BNC out, one HDMI in and one VGA terminal for connecting to a PC. The unit is powered via a 2.1mm DC jack and housed in a durable metal case.
LED backlighting improves color, lifetime, and power consumption. Each dislpay exhibits an 1000:1 contrast ratio, and response time is rated at 2 ms rising and 2 ms falling. The unit is suitable for wide viewing angles, ranging 178° horizontal and vertical. Advanced features include a 3D Interlace comb filter, DNR, and 4H filter. - Key Features
-
- High Definition 1924 x 768 resolution
- LED Backlighting for improved color, longer life and lower power consumption
- BNC, HDMI and PC (15-pin mini D-sub) connectivity
- Durable metal case
- 1000:1 Contrast Ratio
- Response time rated at 2 ms rising and 2 ms falling
- Wide viewing angles ranging 178° horizontal and vertical
- 3D Interlace Comb, DNR and 4H Filter
UPC: 081651481349 In the Box Tote Vision Dual 9.7" Rack Mount Monitors Limited 3-Year Warranty Brochure PDF 649.7kbwzusrtwbrdydrzfxccbdrbvucvs Table of Contents
|
Upload User Manual
Have you got an user manual for the Tote Vision Dual 9.7" Rack Mount Monitors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTote Vision LED-1002HD2 Specs | | | Panel Type | TFT LCD | | Display Size | 9.7" / 24.6 cm | | Active Area | 7.8 x 5.9" / 19.76 x 14.88 cm | | Screen Resolution | 1024 x 768 | | Aspect Ratio | 4:3 | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 1000:1 | | Dot Pitch | 0.192 x 0.192 mm | | Bit Depth / Color Support | 6-Bit (262K Colors) | | Response Time | 2 / 2 ms (Rise / Fall) | | Finish | Matte | | Image Controls | Color Temperature Selection | | | | Video | 4 x BNC (Composite) Input
2 x HDMI Type A Input
1 x DE-15/DB-15 (VGA) Input
4 x BNC (Composite) Output | | Audio | None | | Built-In Speaker | None | | Power | 1 x 2.1 mm Barrel Input | | Card Slot | None | | | | DC Input Power | 12 VDC at 2 A | | Battery Type | None | | Power Consumption | 30 W (Maximum) | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Dimensions (W x H x D) | 18.9 x 8.72 x 1.85" / 47.9 x 22.14 x 4.7 cm | | Weight | 6.8 lb / 3.1 kg | | | | Package Weight | 8.1 lb | | Box Dimensions (LxWxH) | 23.1 x 16.45 x 5.5" |
